Seat Temperature Control Module
Component Connector End Views

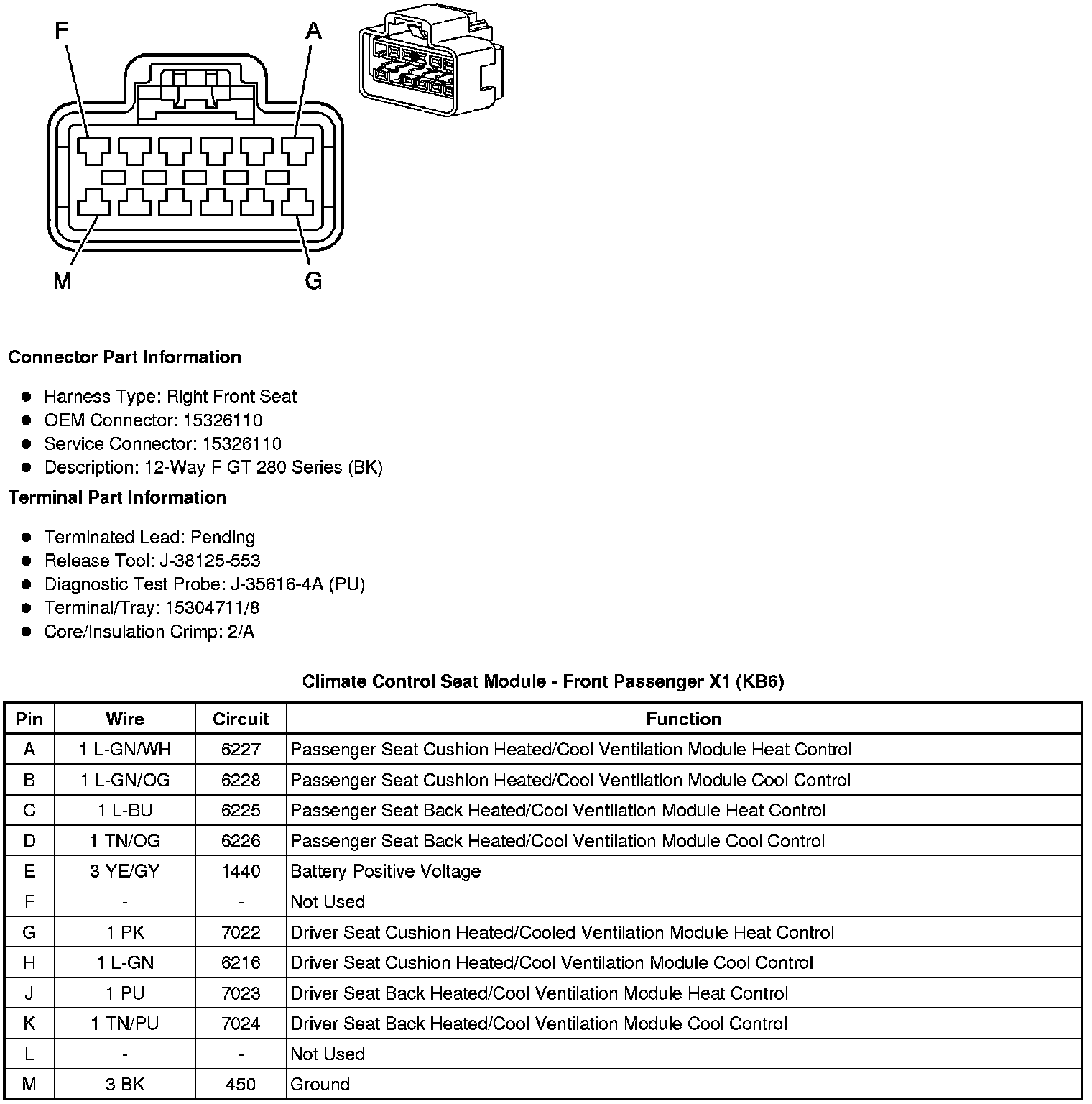

Climate Control Seat Module - Front Passenger X1 (KB6)

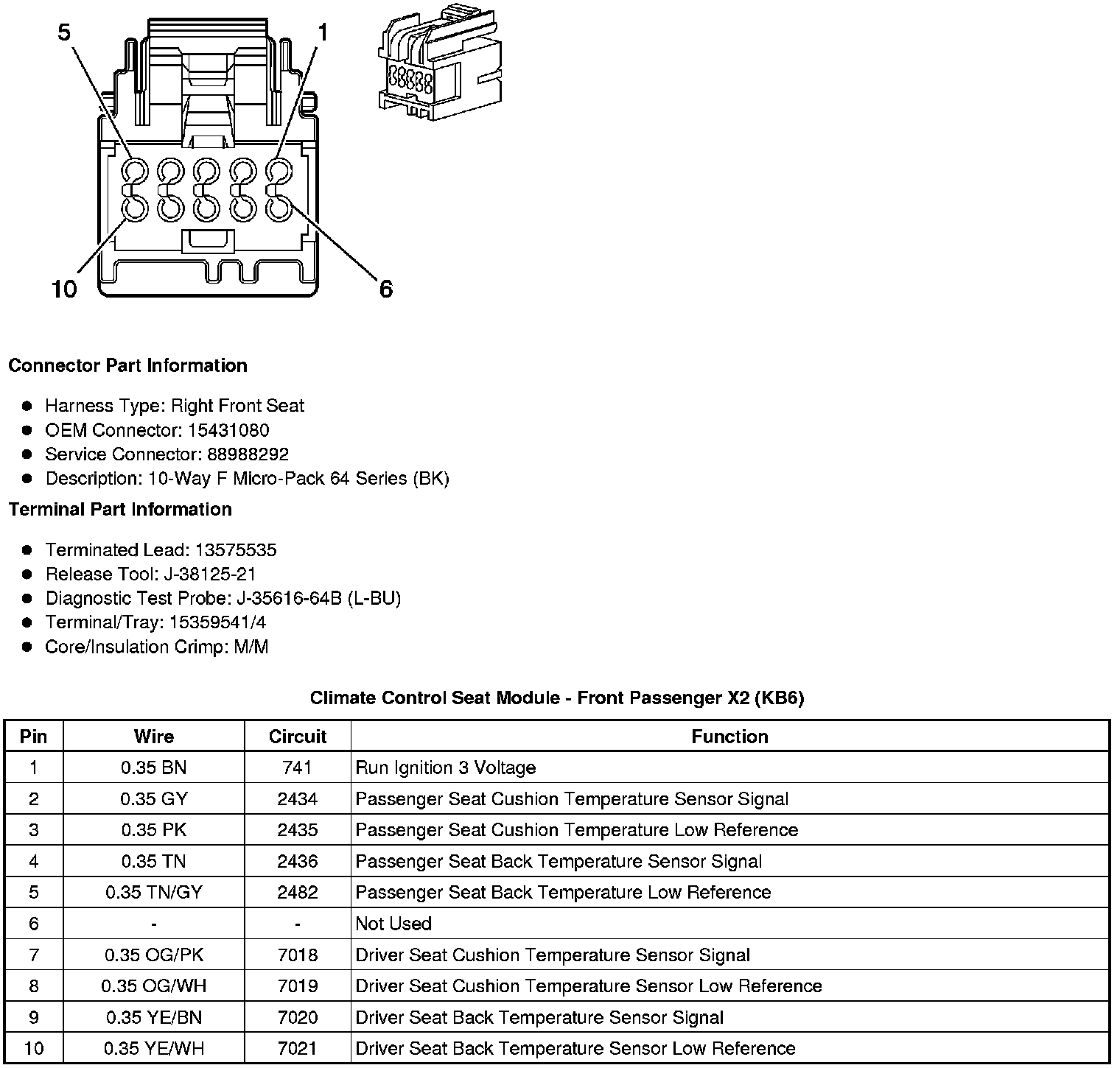

Climate Control Seat Module - Front Passenger X2 (KB6)

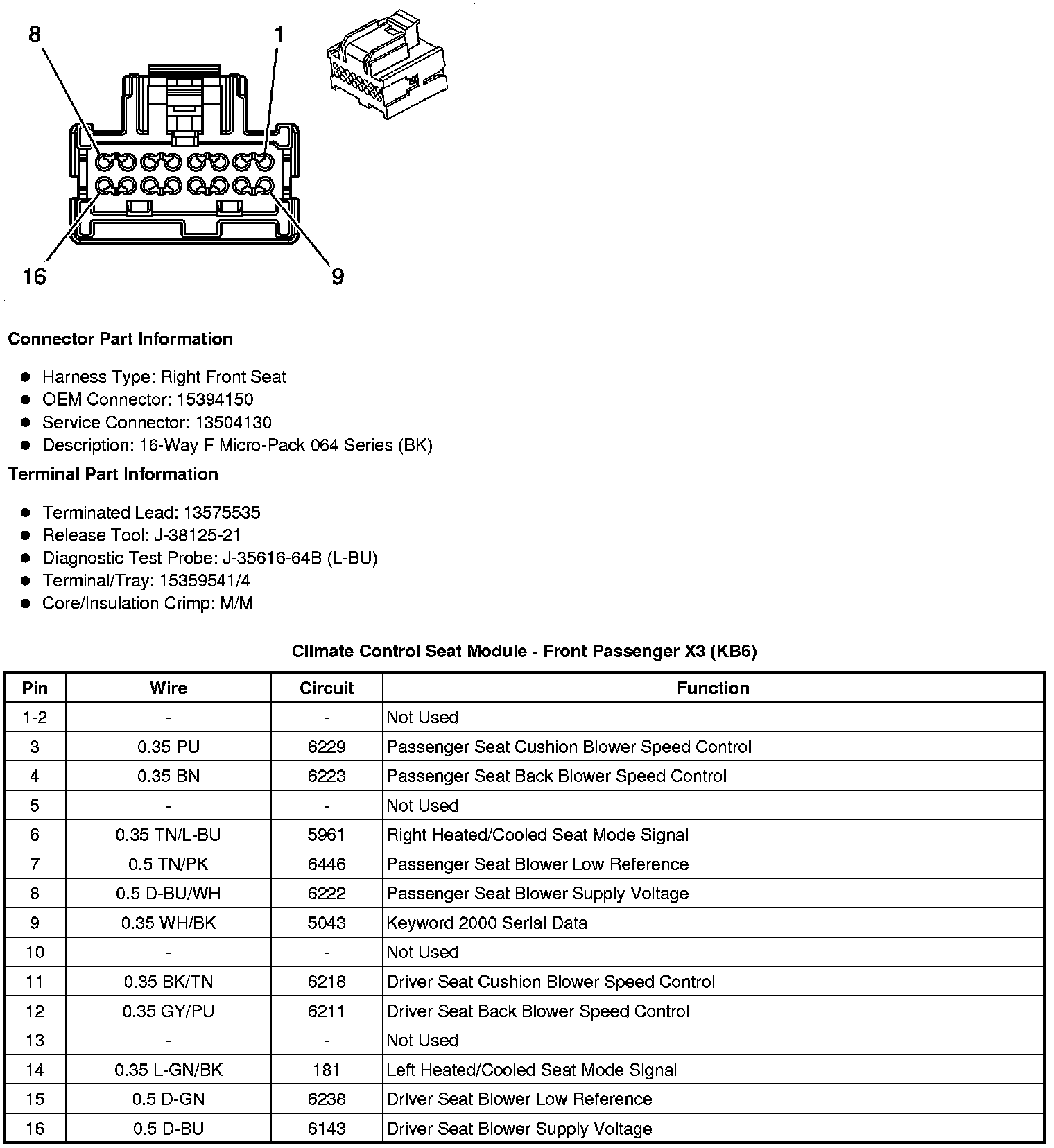

Climate Control Seat Module - Front Passenger X3 (KB6)

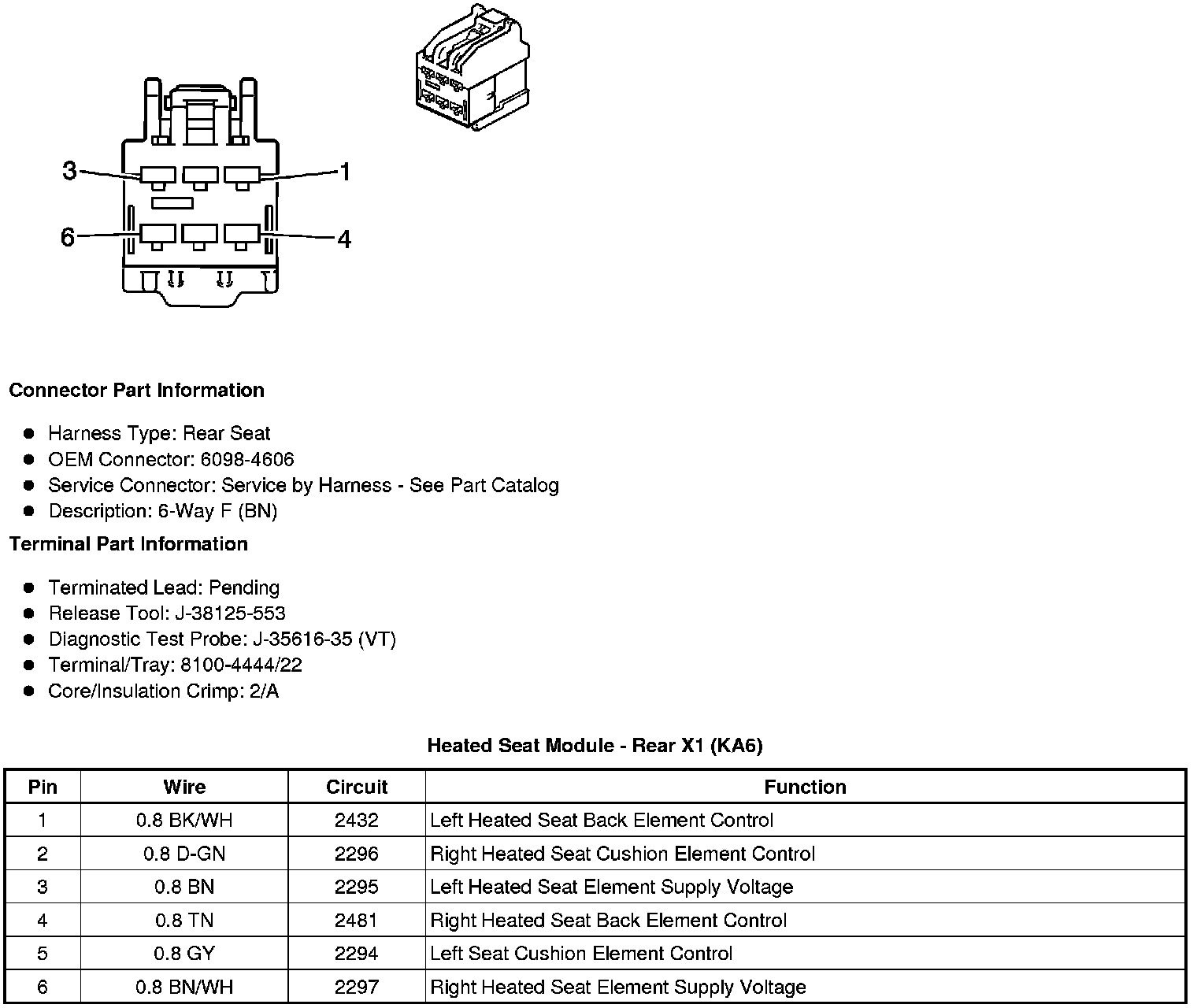

Heated Seat Module - Rear X1 (KA6)

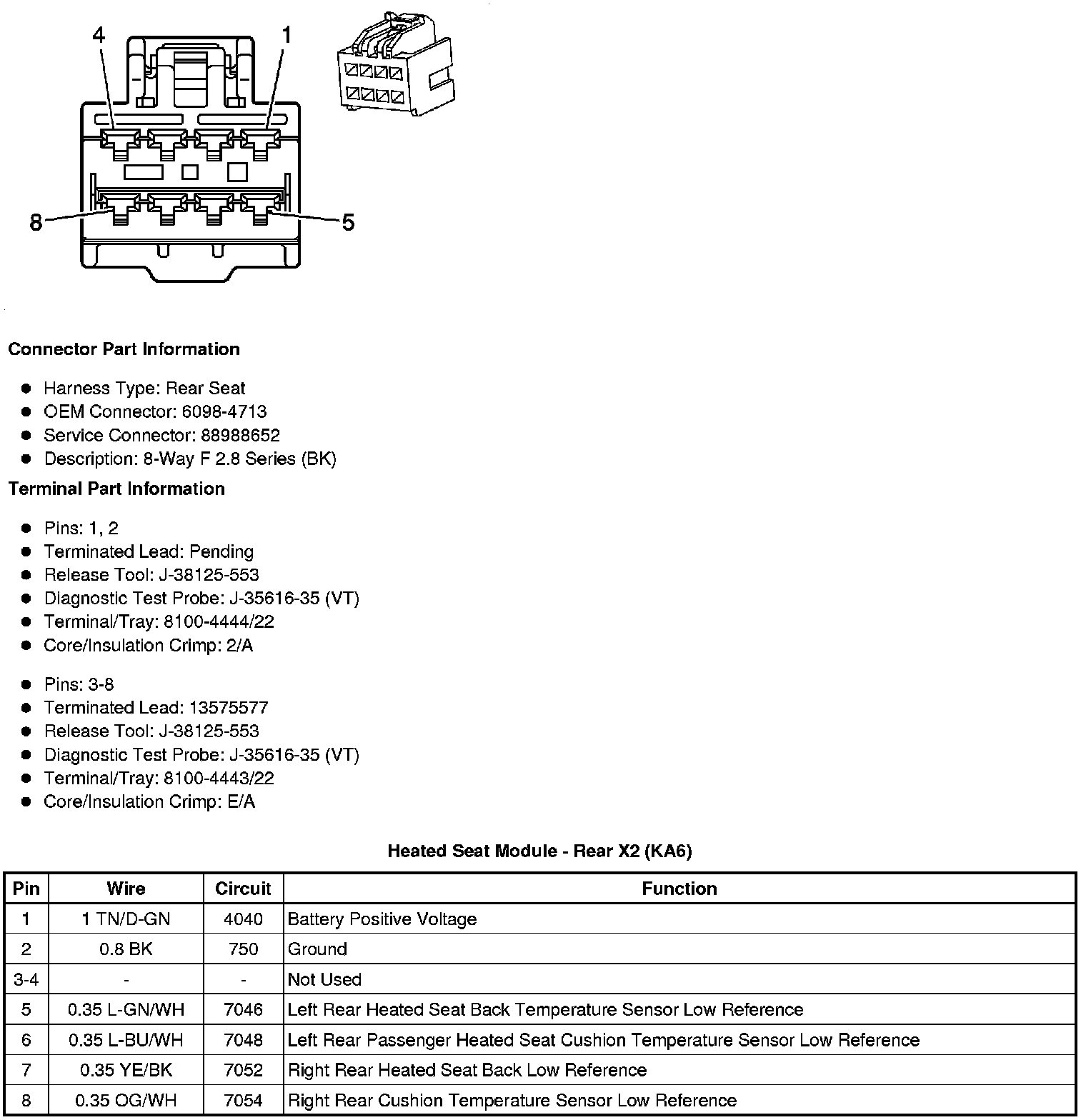

Heated Seat Module - Rear X2 (KA6)

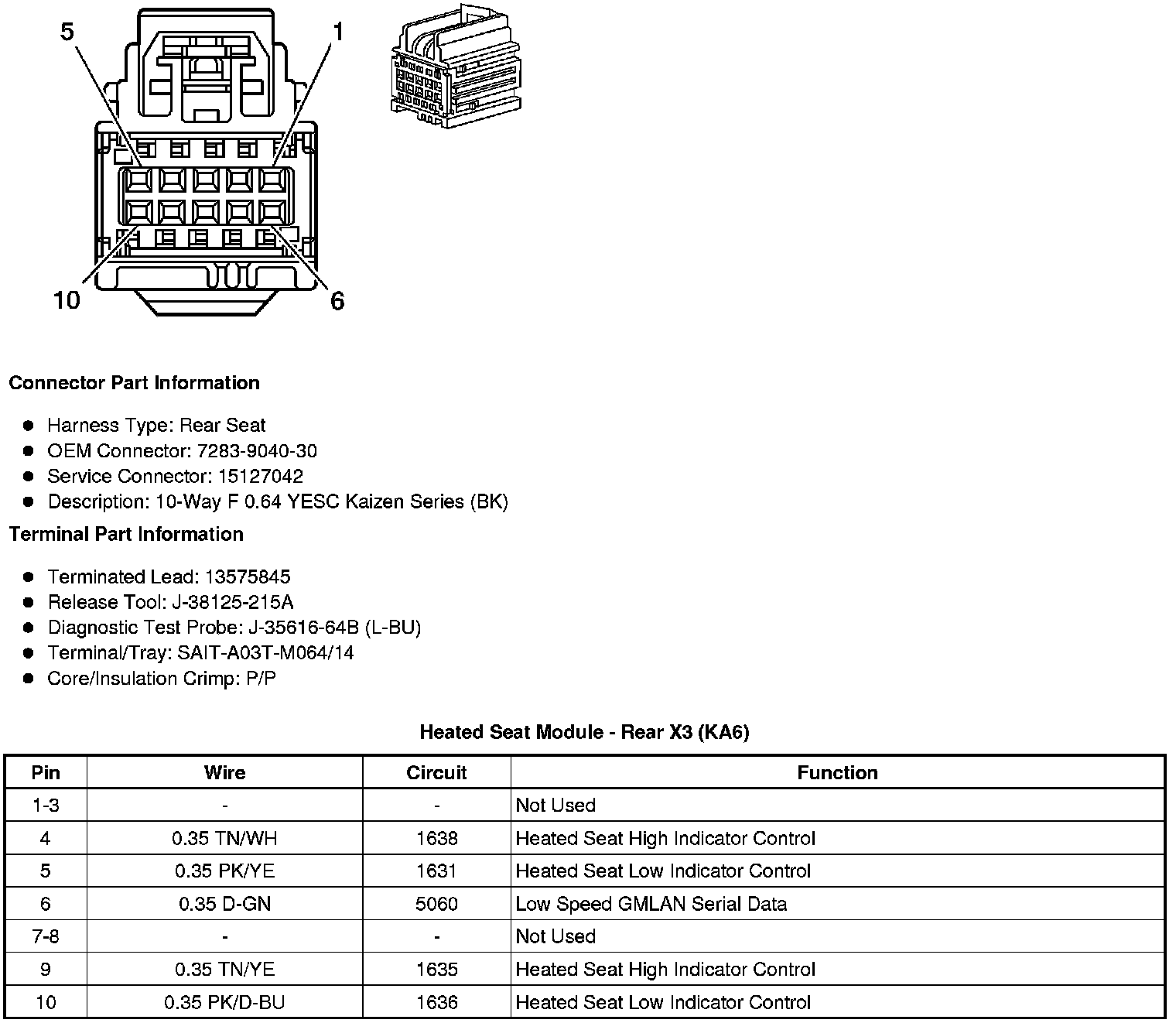

Heated Seat Module - Rear X3 (KA6)

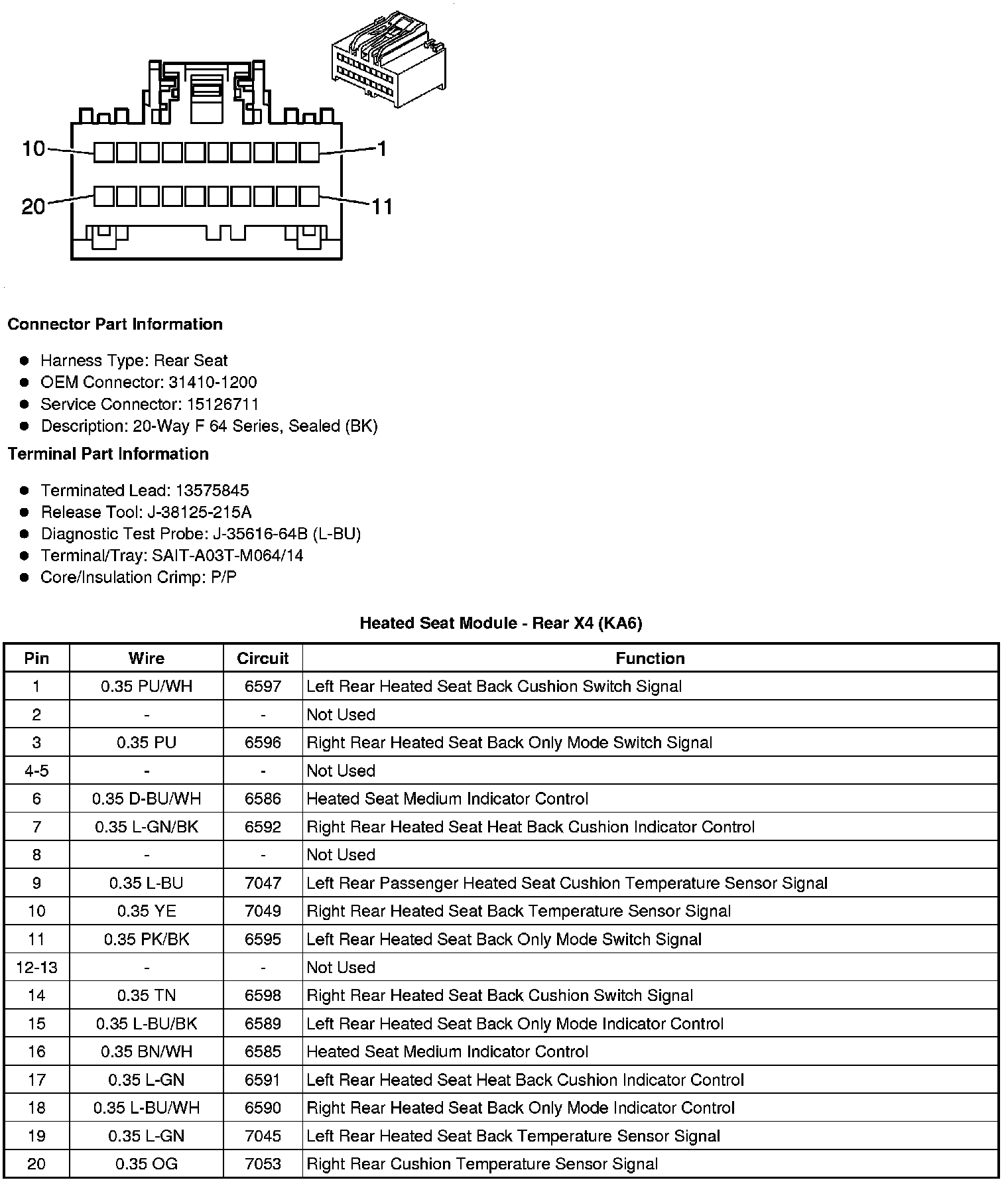

Heated Seat Module - Rear X4 (KA6)

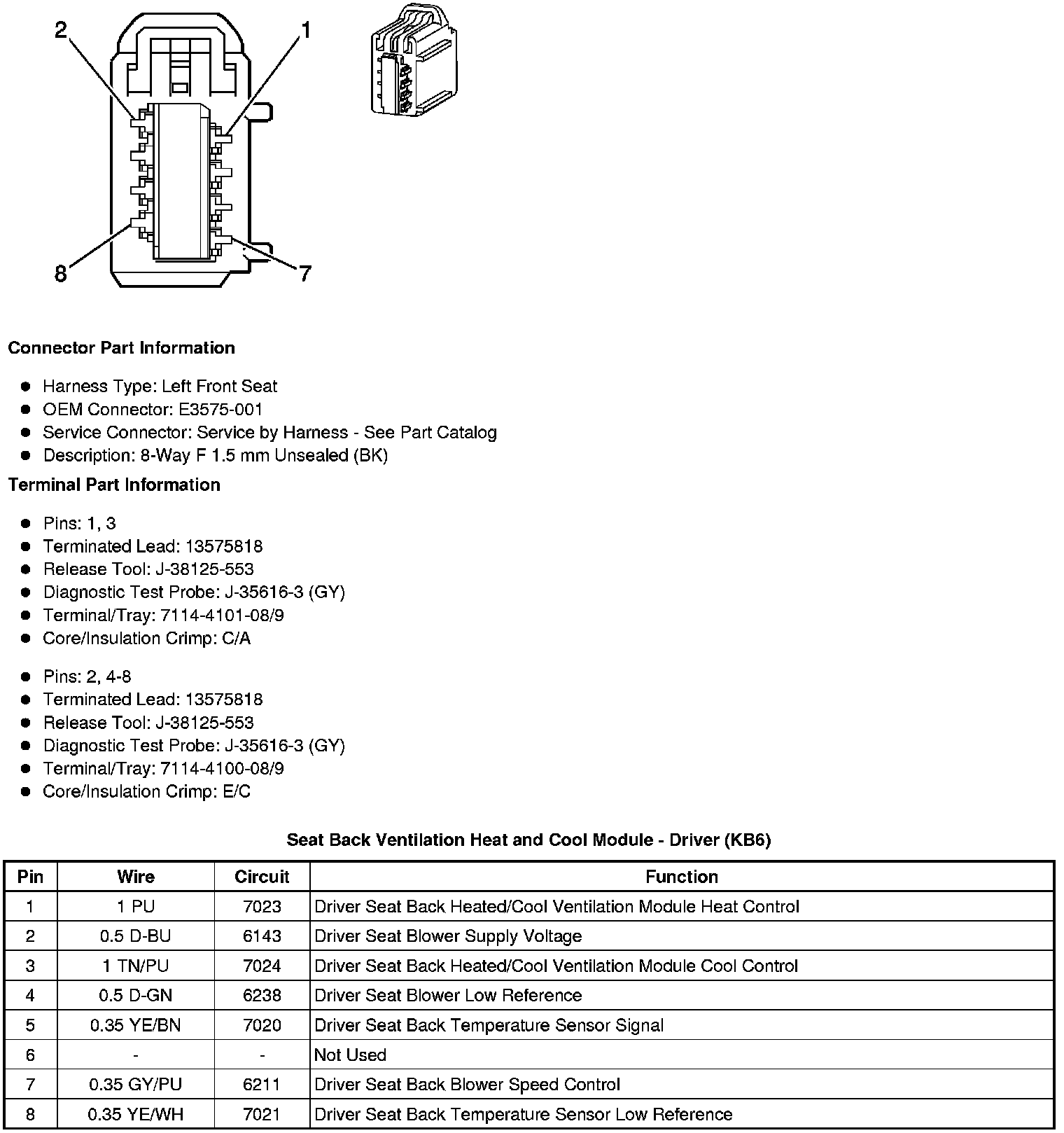

Seat Back Ventilation Heat and Cool Module - Driver (KB6)

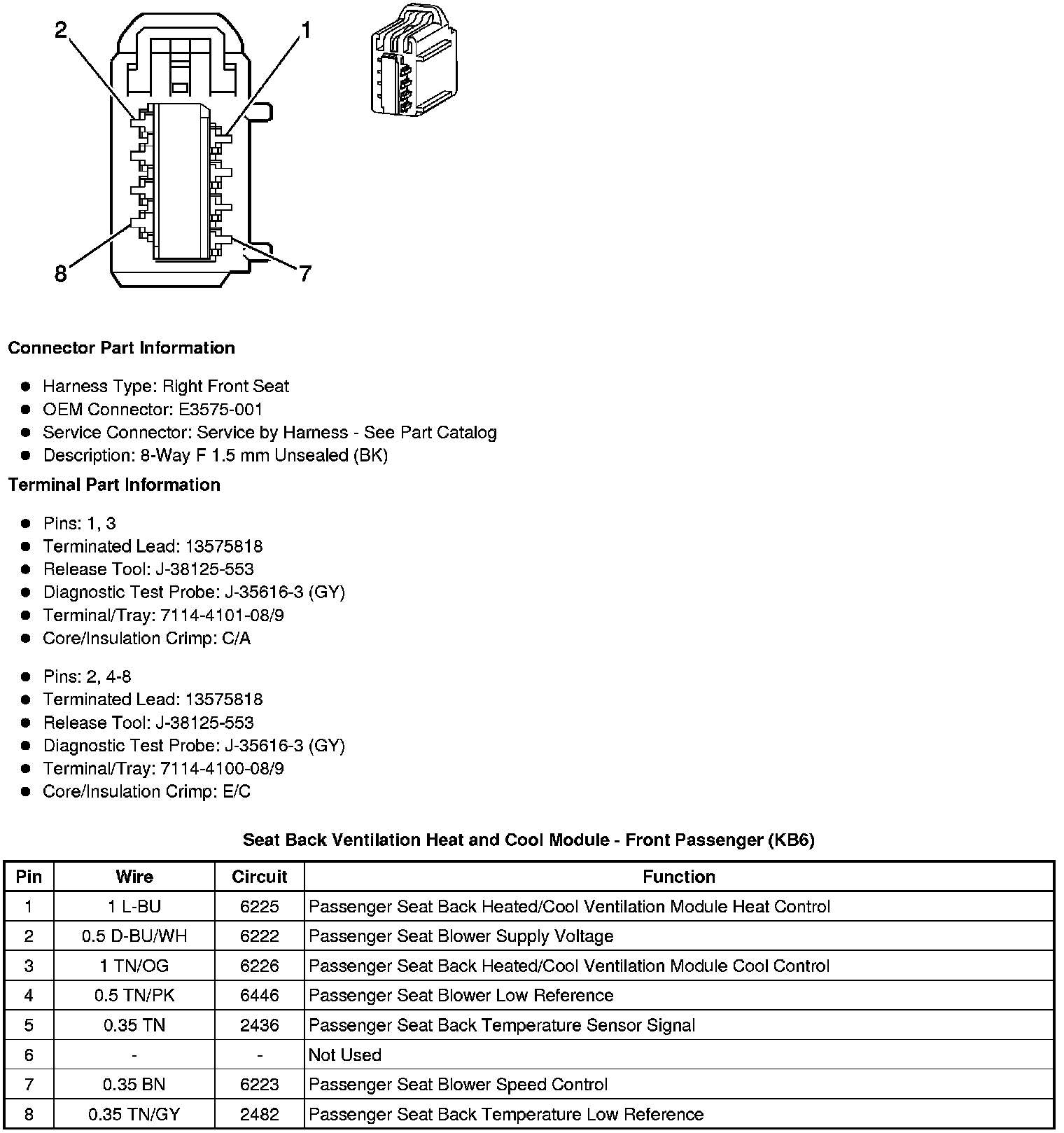

Seat Back Ventilation Heat and Cool Module - Front Passenger (KB6)

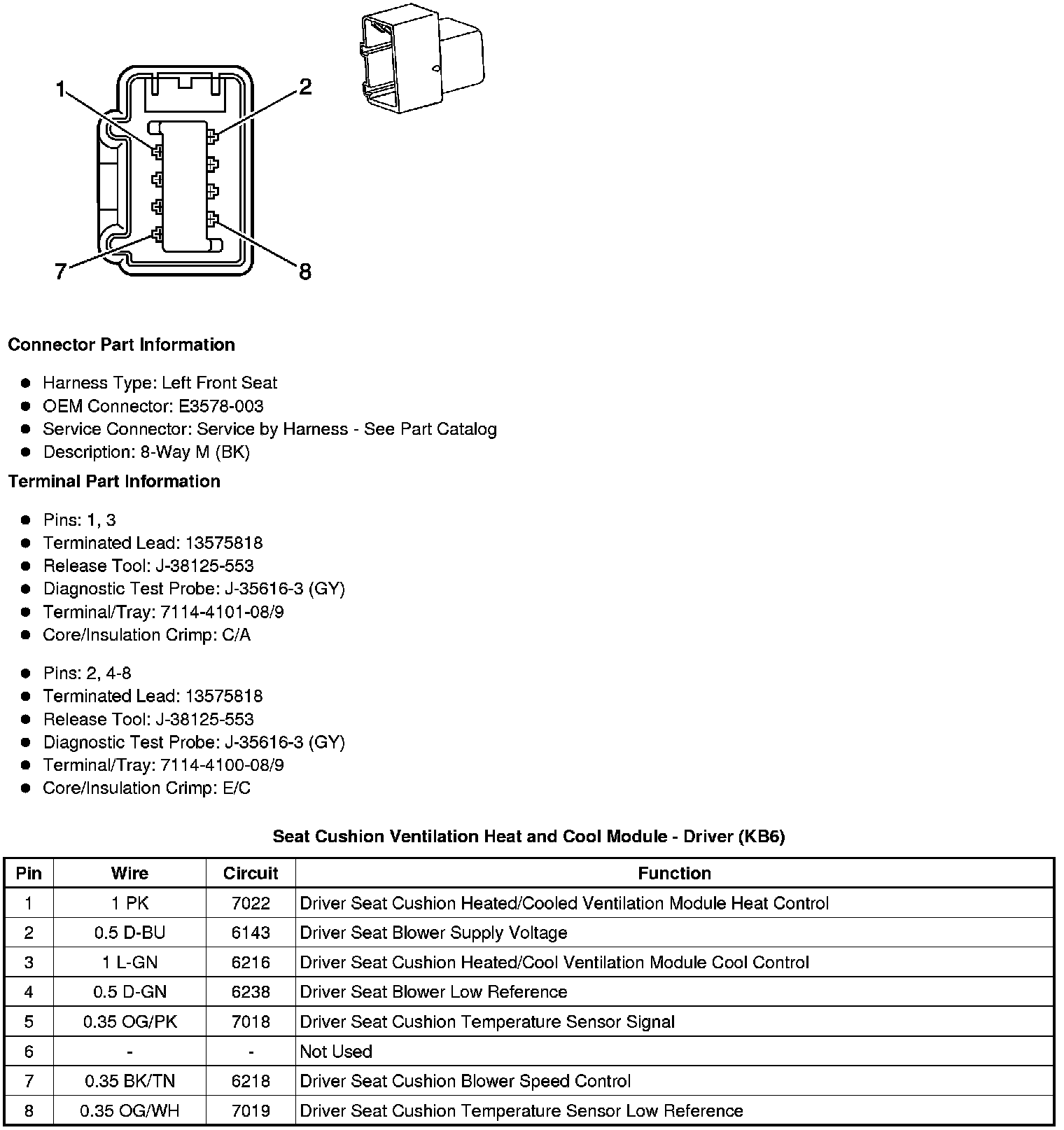

Seat Cushion Ventilation Heat and Cool Module - Driver (KB6)

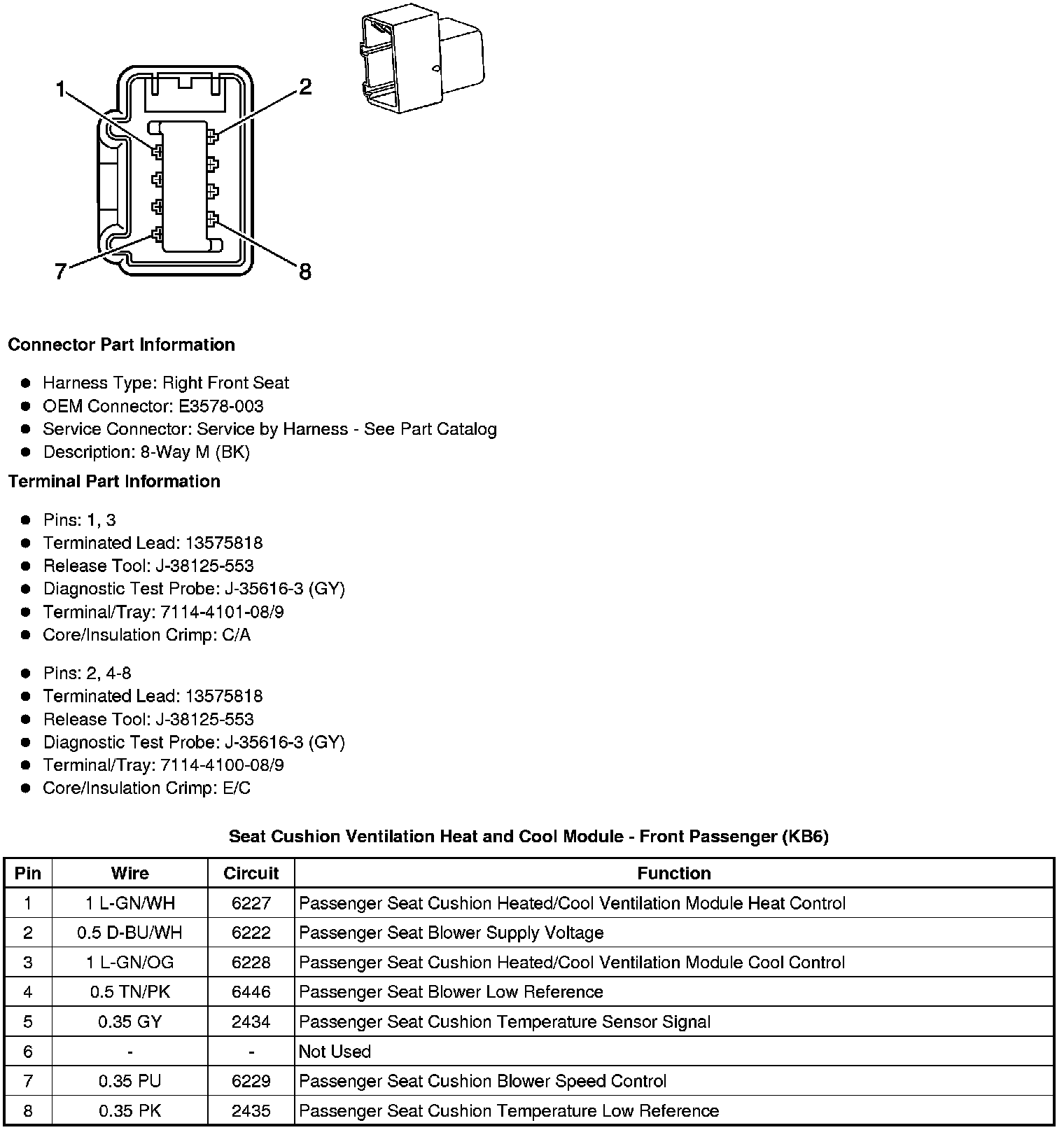

Seat Cushion Ventilation Heat and Cool Module - Front Passenger (KB6)
