Traction Control Switch




Component Connector End Views

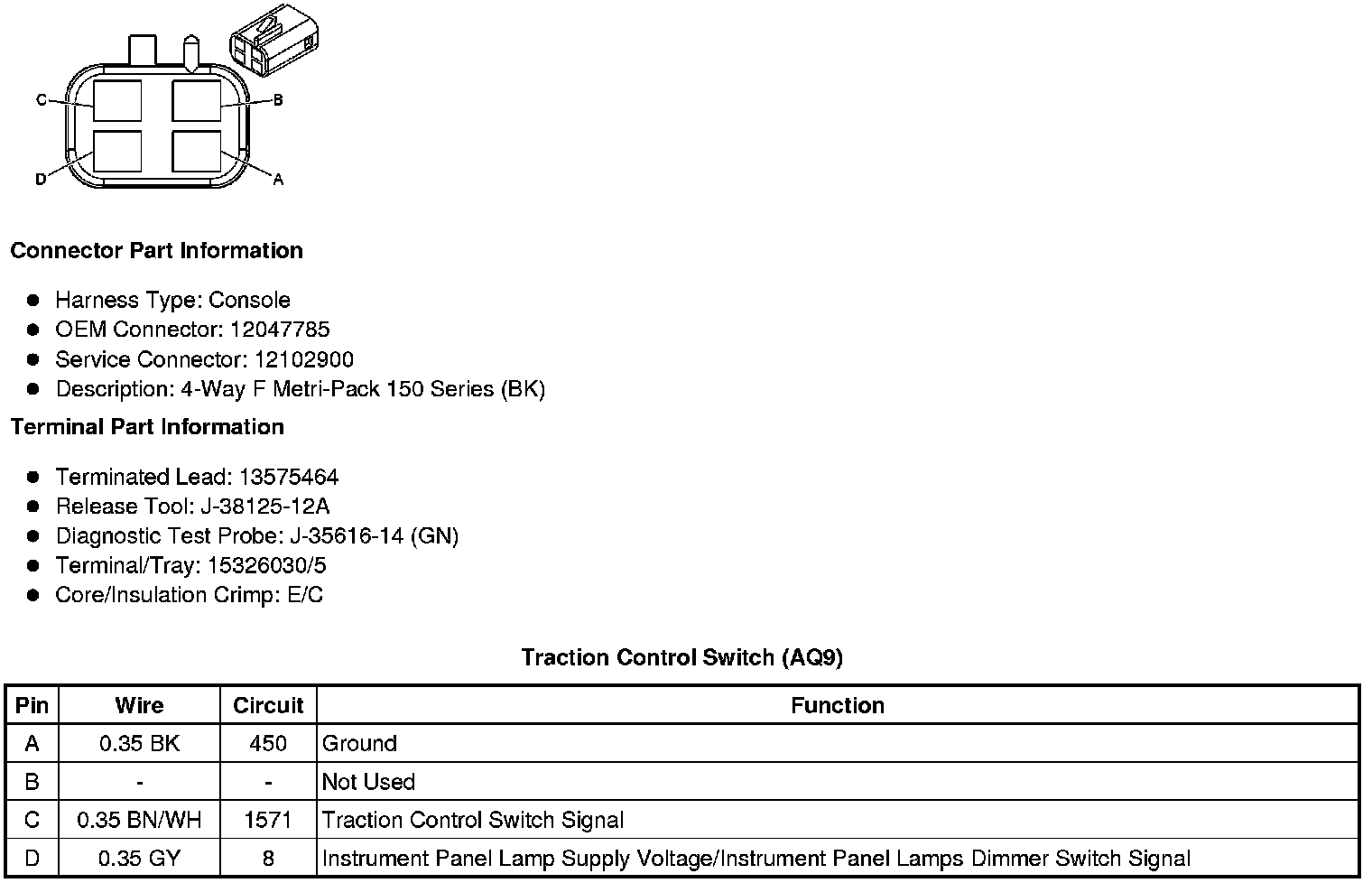

Traction Control Switch (AQ9)

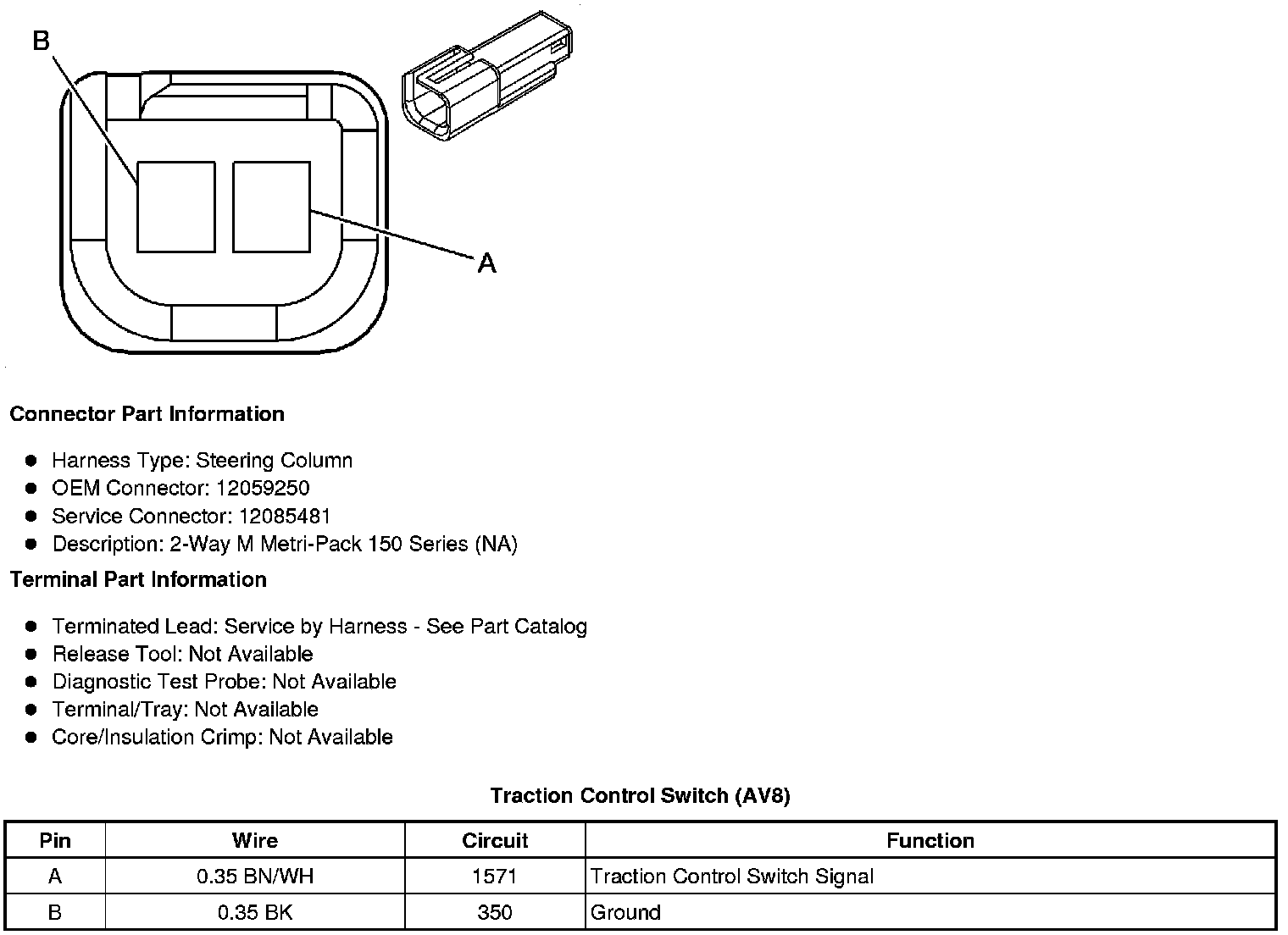

Traction Control Switch (AV8)
