Body Control Systems
Body Control System Schematics
Module Power and Ground

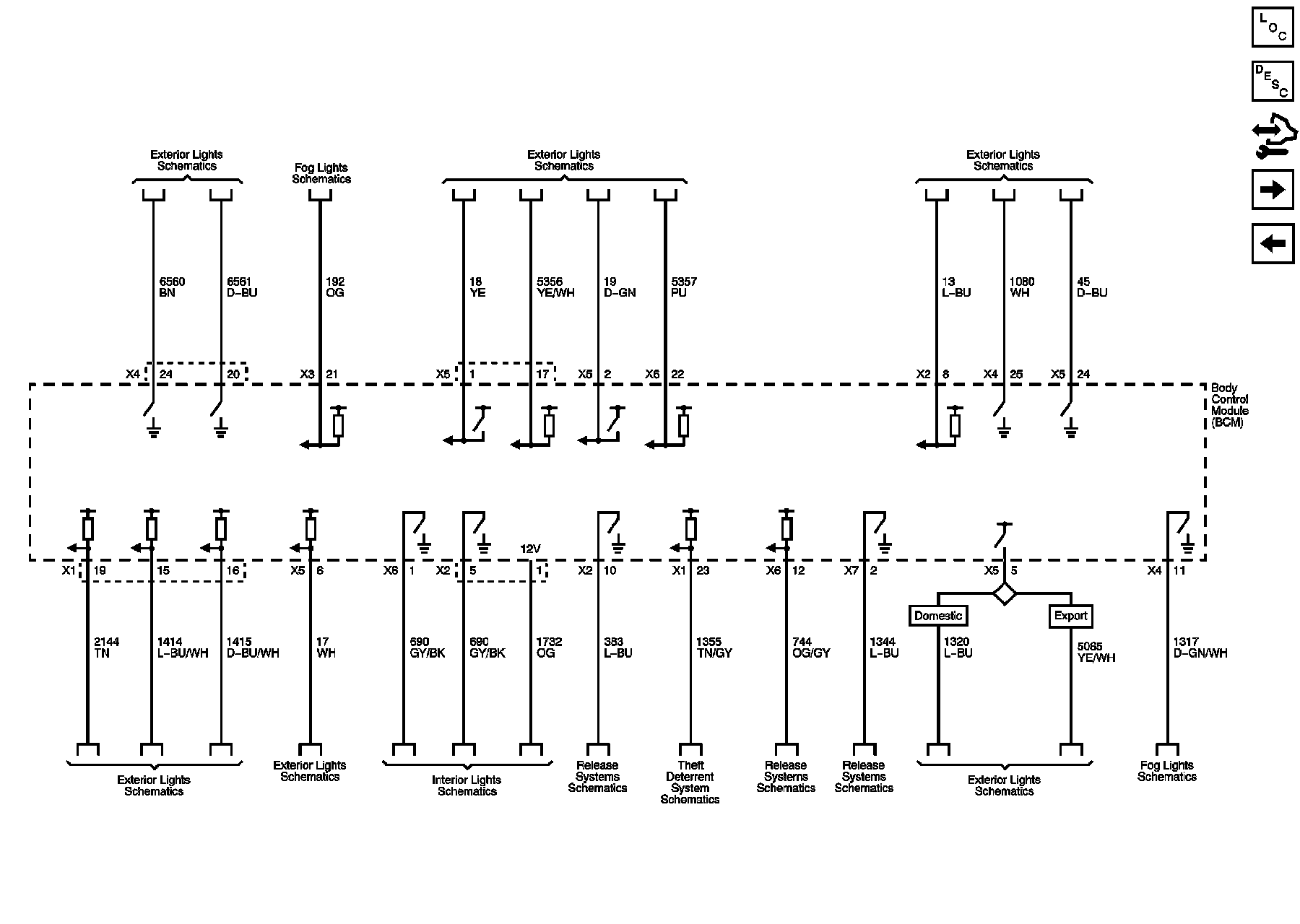

BCM Inputs and Outputs 1 of 4

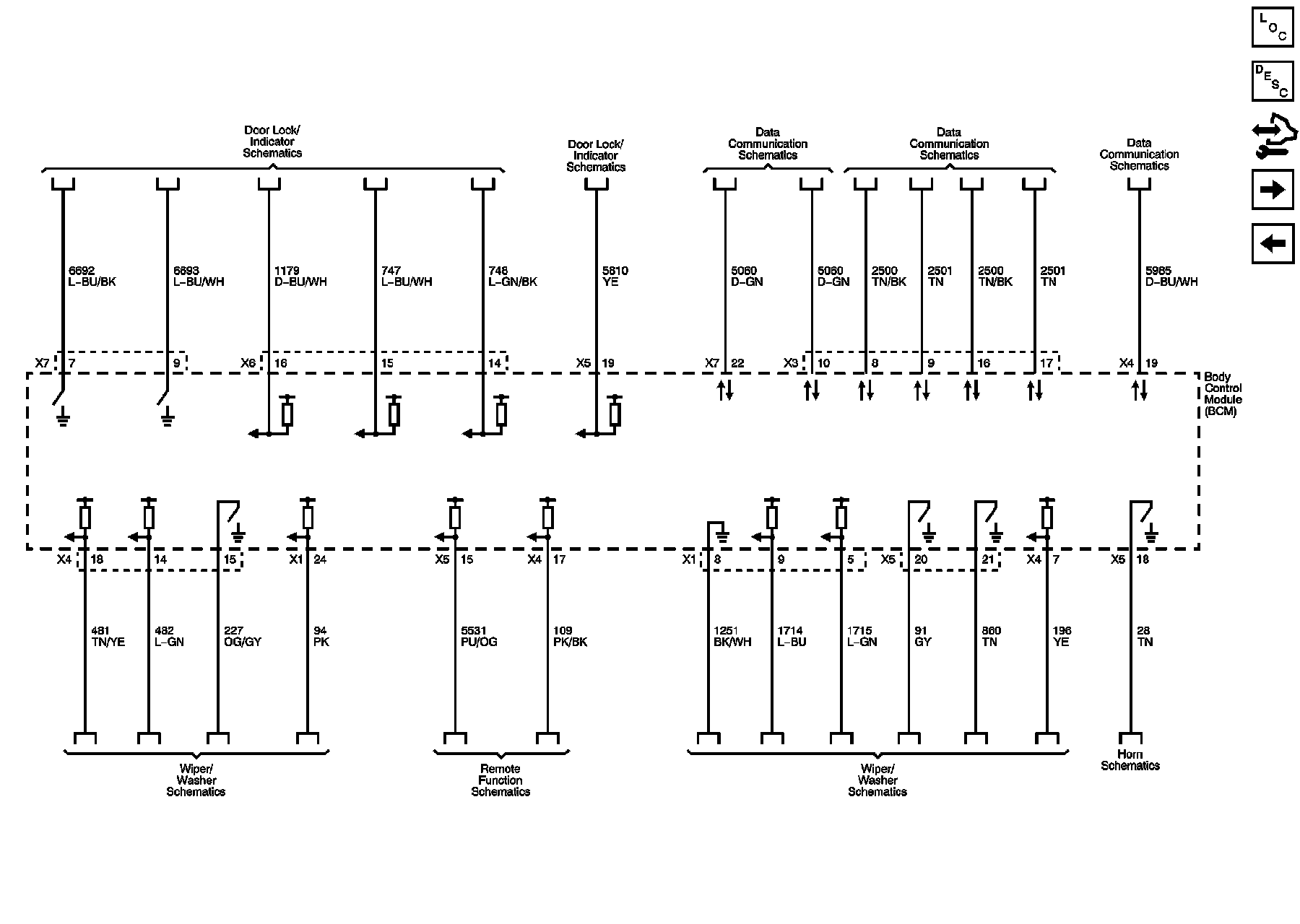

BCM Inputs and Outputs 2 of 4

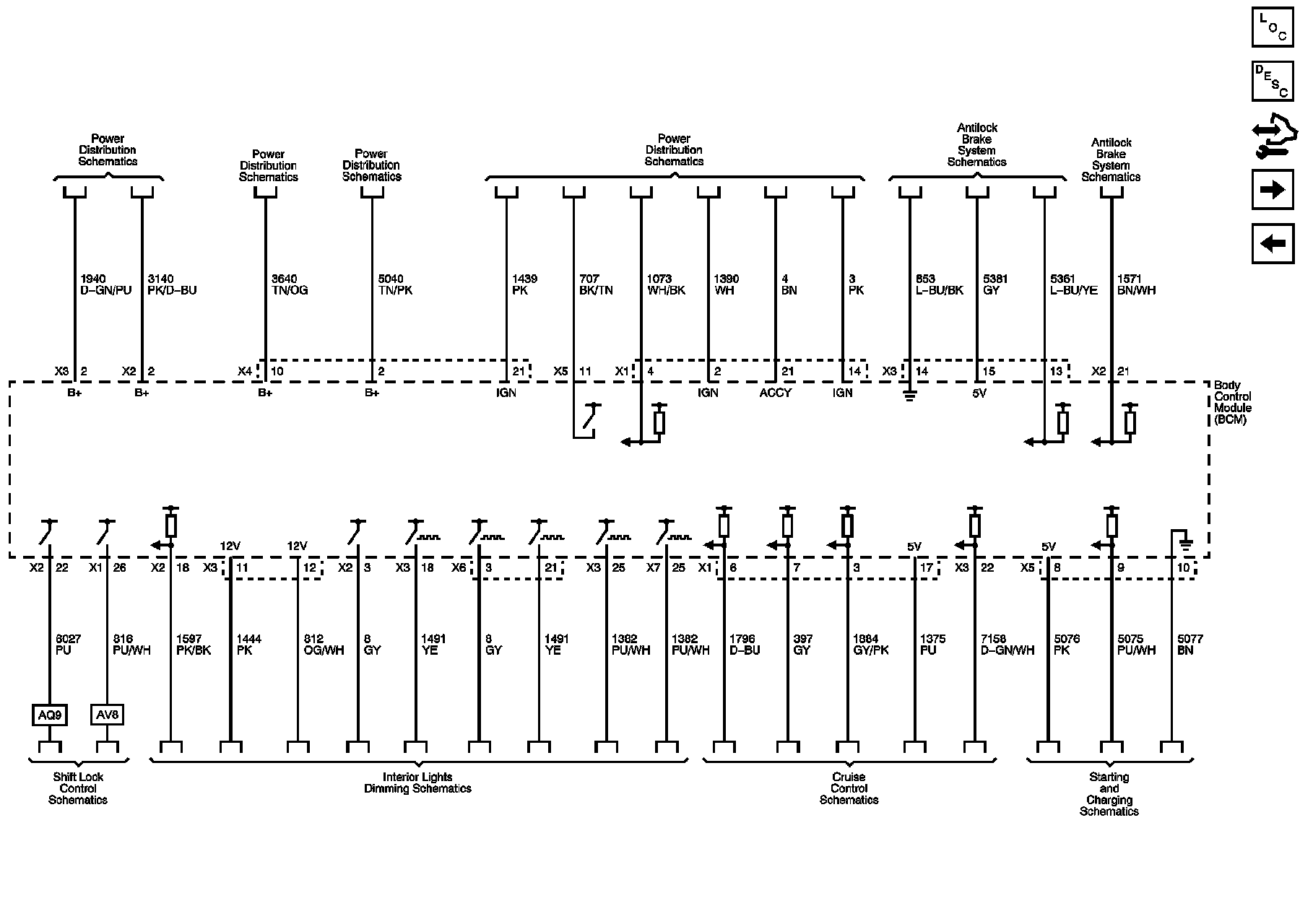

BCM Inputs and Outputs 3 of 4
BCM Inputs and Outputs 4 of 4
Body Control System Schematics
Module Power and Ground
BCM Inputs and Outputs 1 of 4
BCM Inputs and Outputs 2 of 4
BCM Inputs and Outputs 3 of 4
BCM Inputs and Outputs 4 of 4
