Keyless Entry Transmitter




Remote Function Schematics

Remote Control Door Lock Receiver (RCDLR)

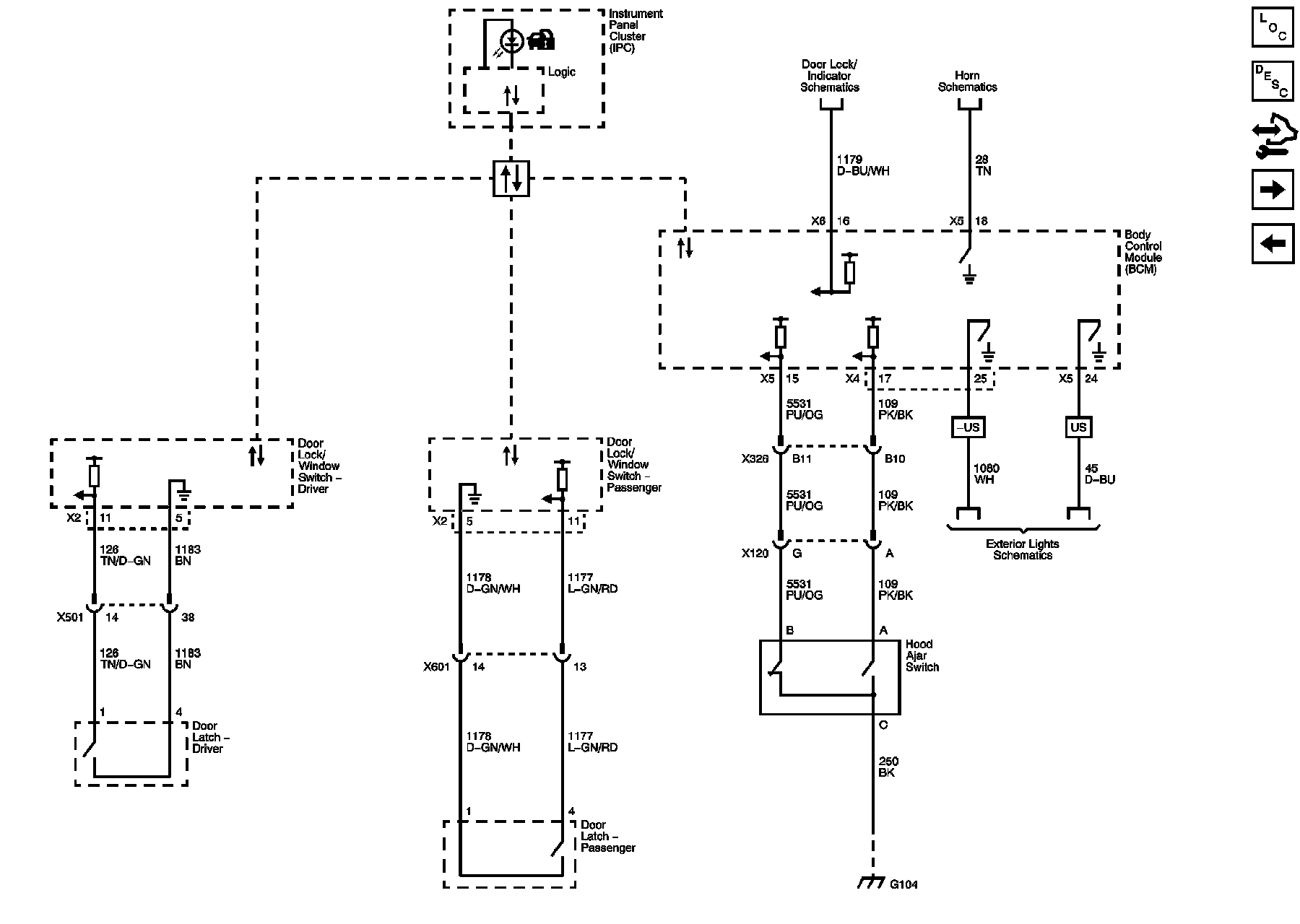

Door Latch Assemblies and Hood Ajar Switch





Garage Door Opener
