Accumulator Assembly

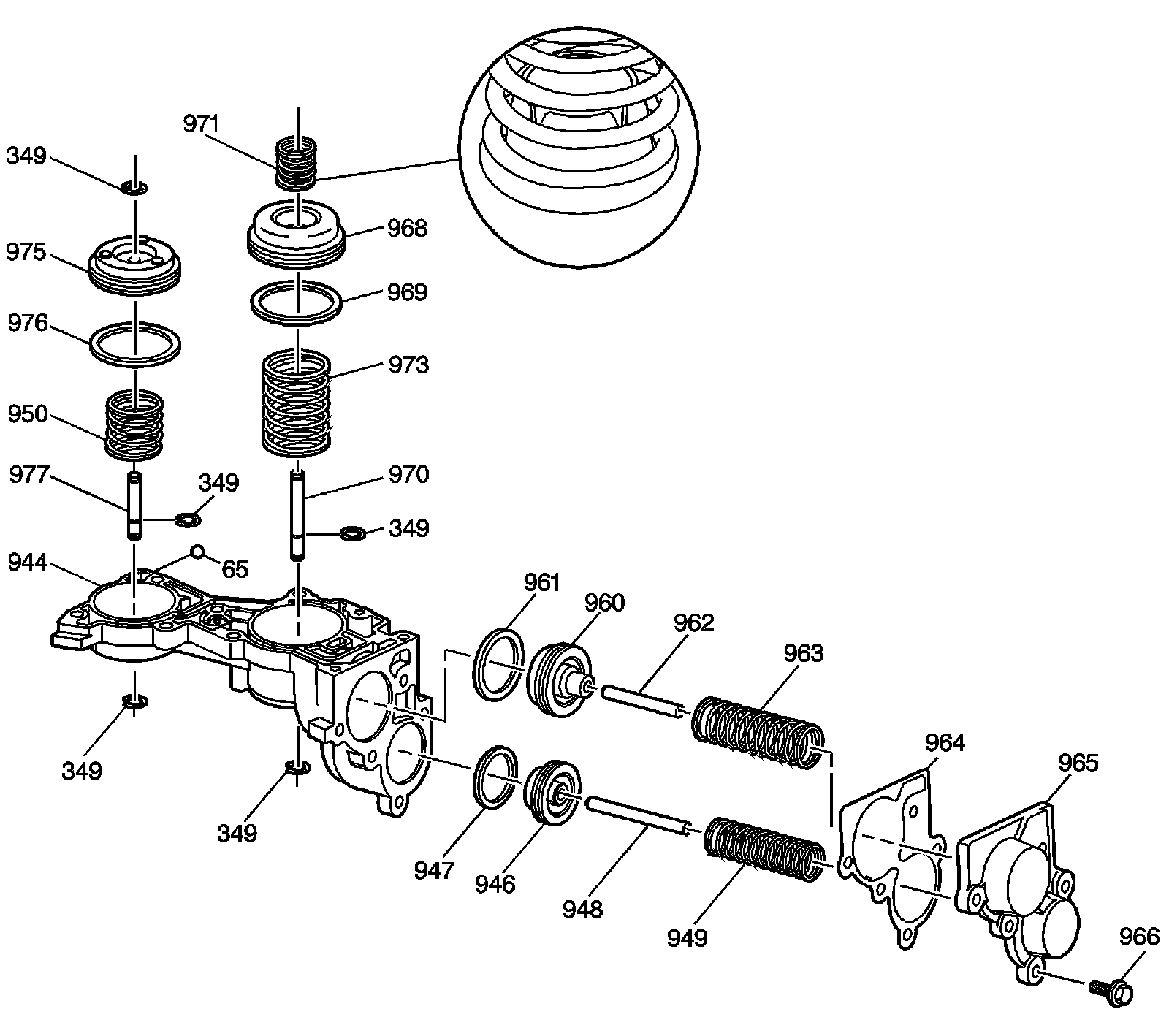

Disassembled Views

Accumulator Assembly




65 - Oil Hole Ball Plug (Staked in Casting)
349 - Snap Ring (5)
349 - Snap Ring (5)
349 - Snap Ring (5)
349 - Snap Ring (5)
349 - Snap Ring (5)
944 - Accumulator Housing
946 - Reverse Accumulator Piston
947 - Reverse Accumulator Piston Seal
948 - Reverse Accumulator Pin
949 - Reverse Accumulator Spring
950 - 3-4 Accumulator Spring
960 - Forward Accumulator Piston
961 - Forward Accumulator Seal
962 - Forward Accumulator Pin
963 - Forward Accumulator Spring
964 - Accumulator Housing Cover Gasket
965 - Accumulator Housing Cover
966 - Accumulator Cover Bolt (5, 8 mm)
968 - 1-2 Accumulator Piston
969 - 1-2 Accumulator Piston Seal
970 - 1-2 Accumulator Pin
971 - 1-2 Accumulator Inner Spring Assembly
973 - 1-2 Accumulator Spring
975 - 3-4 Accumulator Piston
976 - 3-4 Accumulator Piston Seal
977 - 3-4 Accumulator Pin
