Control Module HVAC: Diagrams




Component Connector End Views

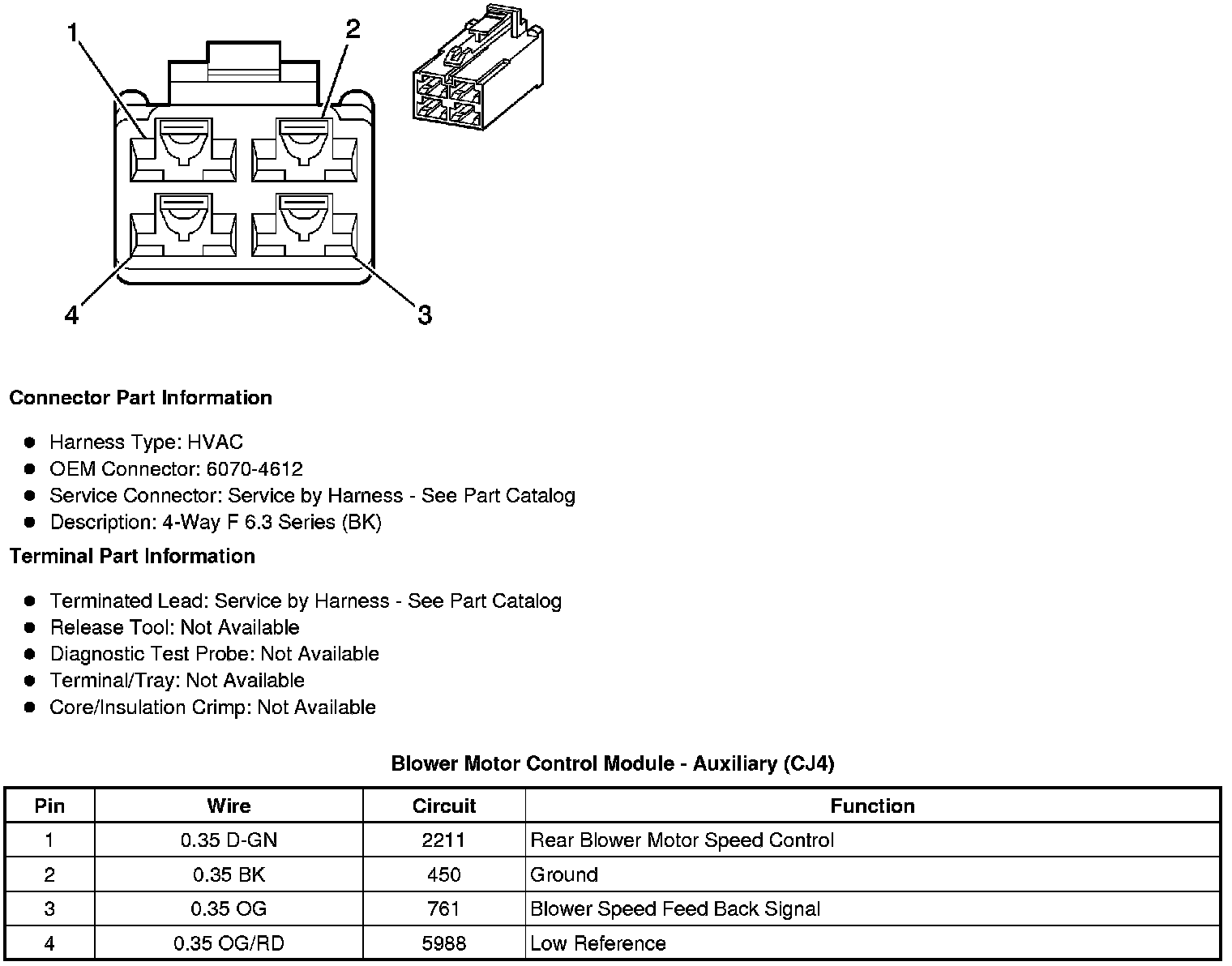

Blower Motor Control Module - Auxiliary (CJ4)

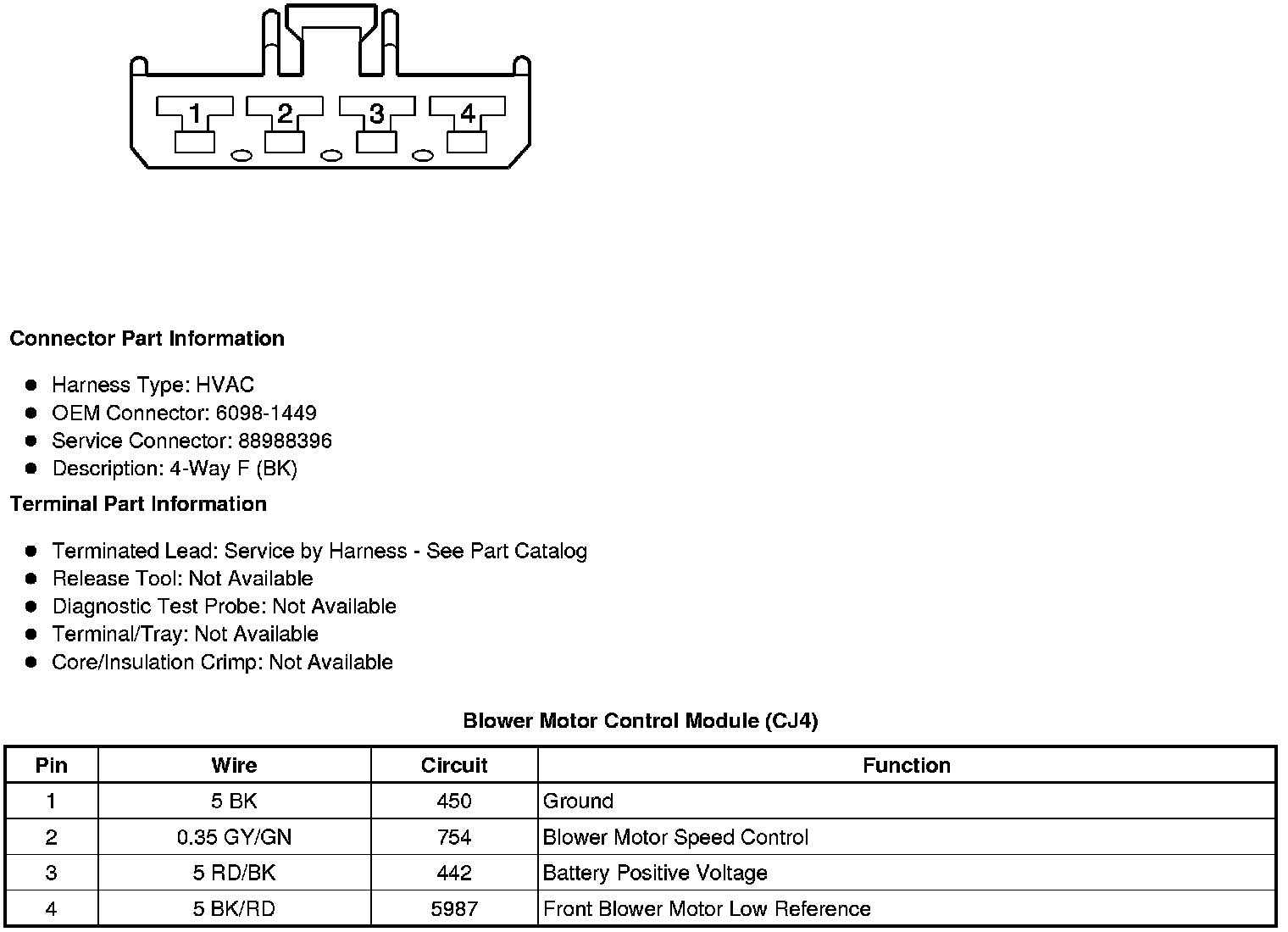

Blower Motor Control Module (CJ4)

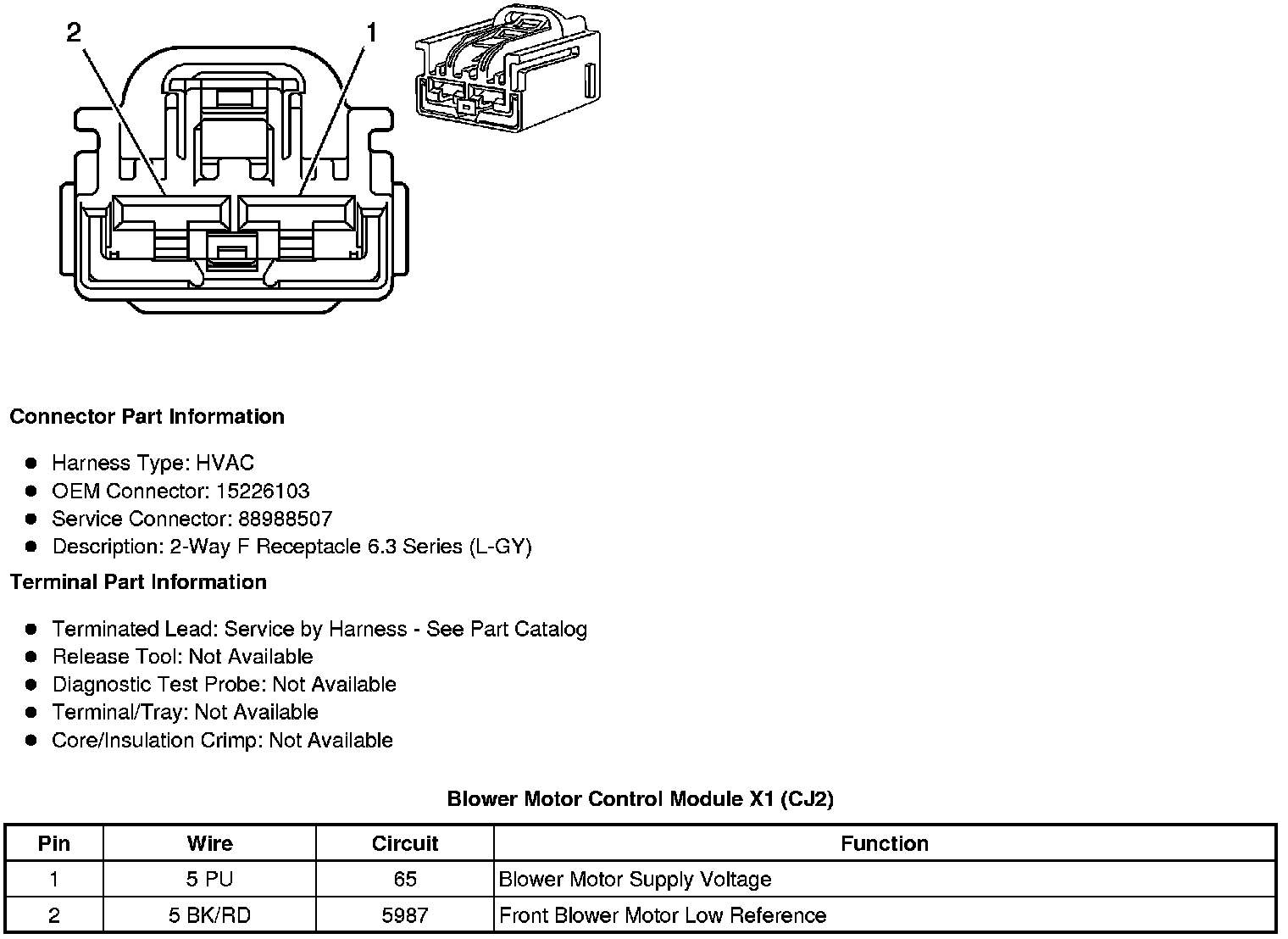

Blower Motor Control Module X1 (CJ2)

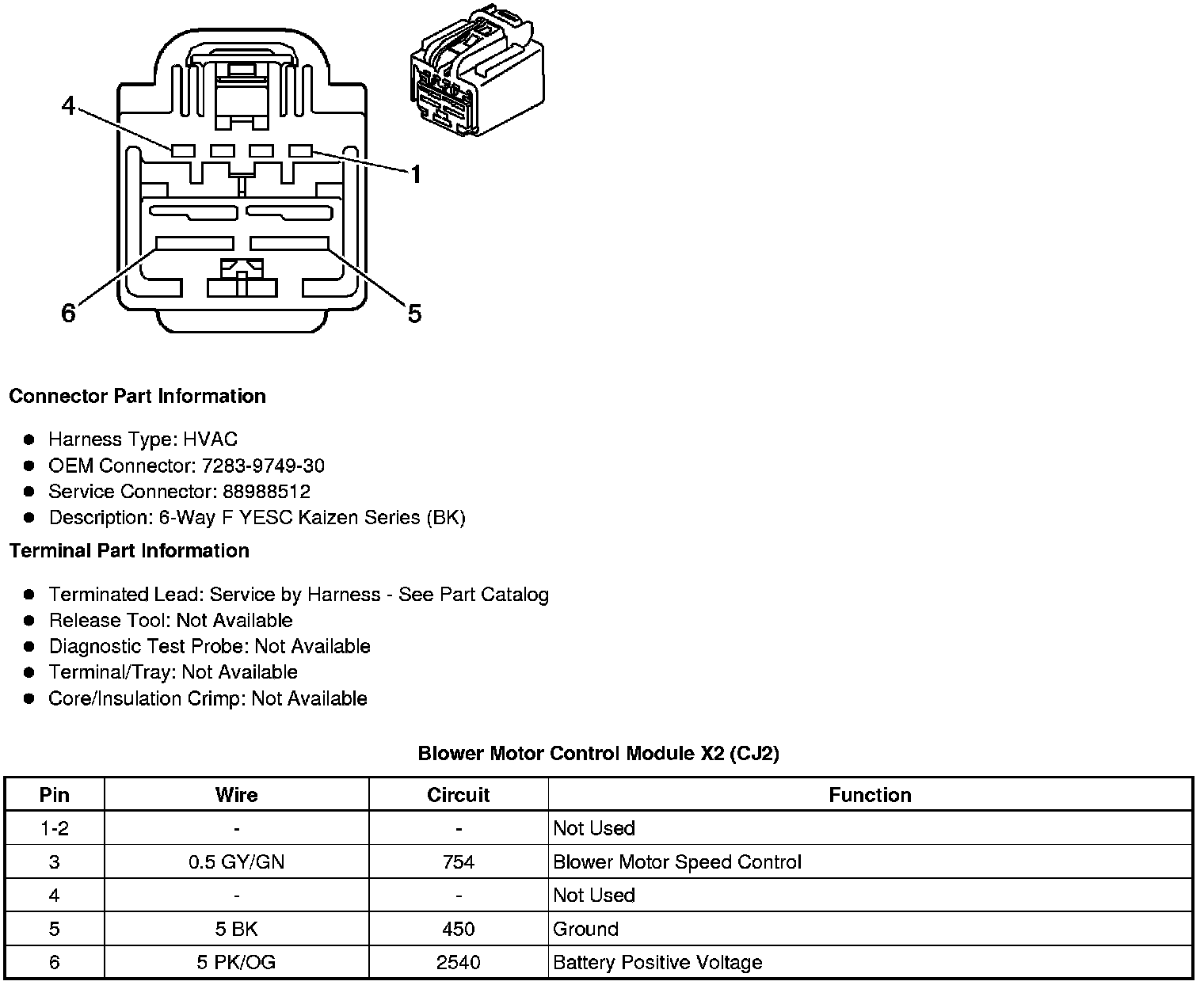

Blower Motor Control Module X2 (CJ2)
