Passenger Door Components

Door Component Views

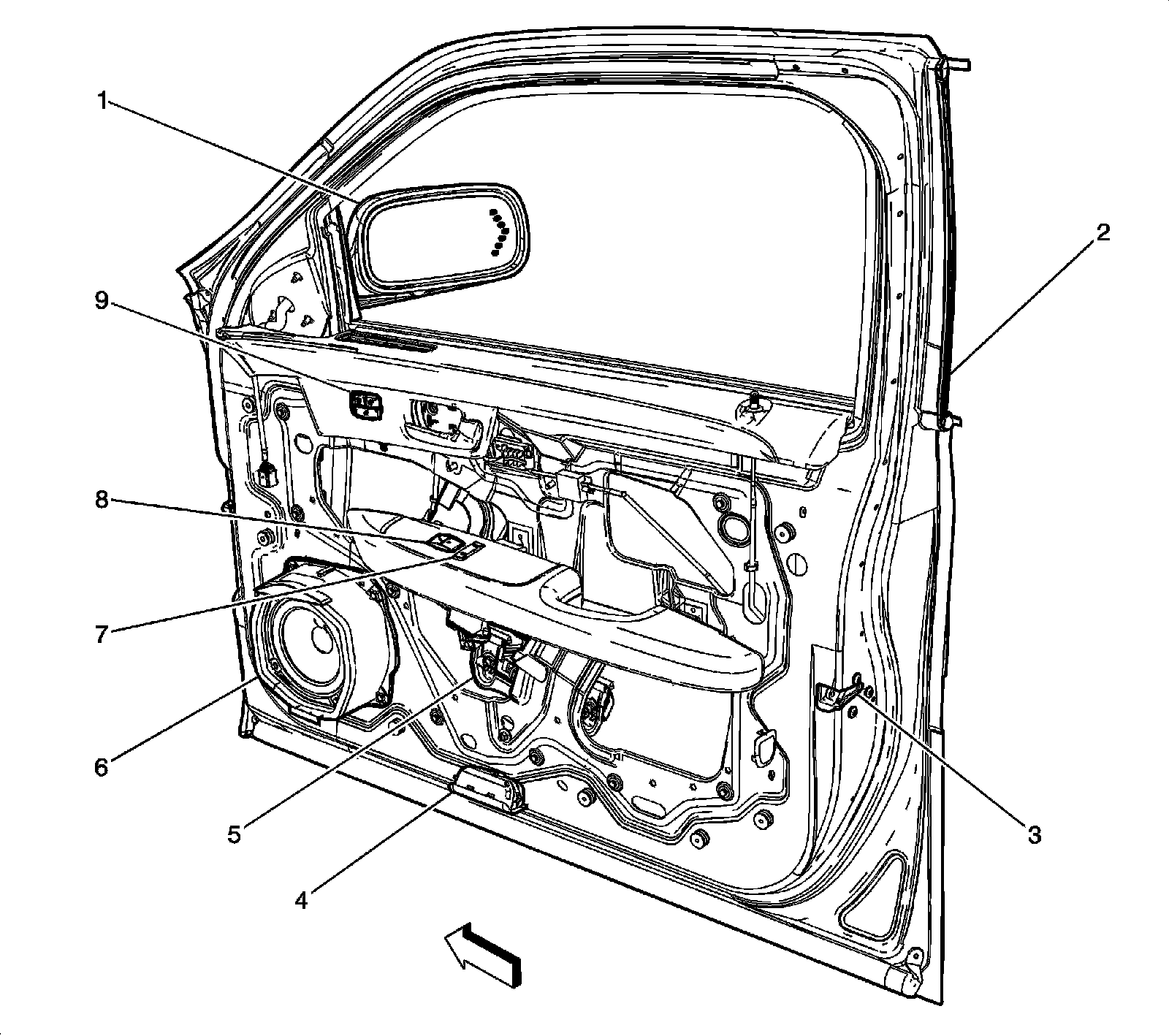

Passenger Door Components




1 - Outside Rearview Mirror - Passenger
2 - Door Frame
3 - Door Latch Assembly - Front Passenger
4 - Courtesy Lamp - Right Front Door
5 - Window Motor - Front Passenger
6 - Speaker - Right Front Door
7 - Power Lock Switch - Front Passenger
8 - Window Switch - Front Passenger
9 - Heated Cooled Seat Switch (KB6) - Front Passenger
