Front Engine Compartment

Front of Vehicle/Engine Compartment Component Views

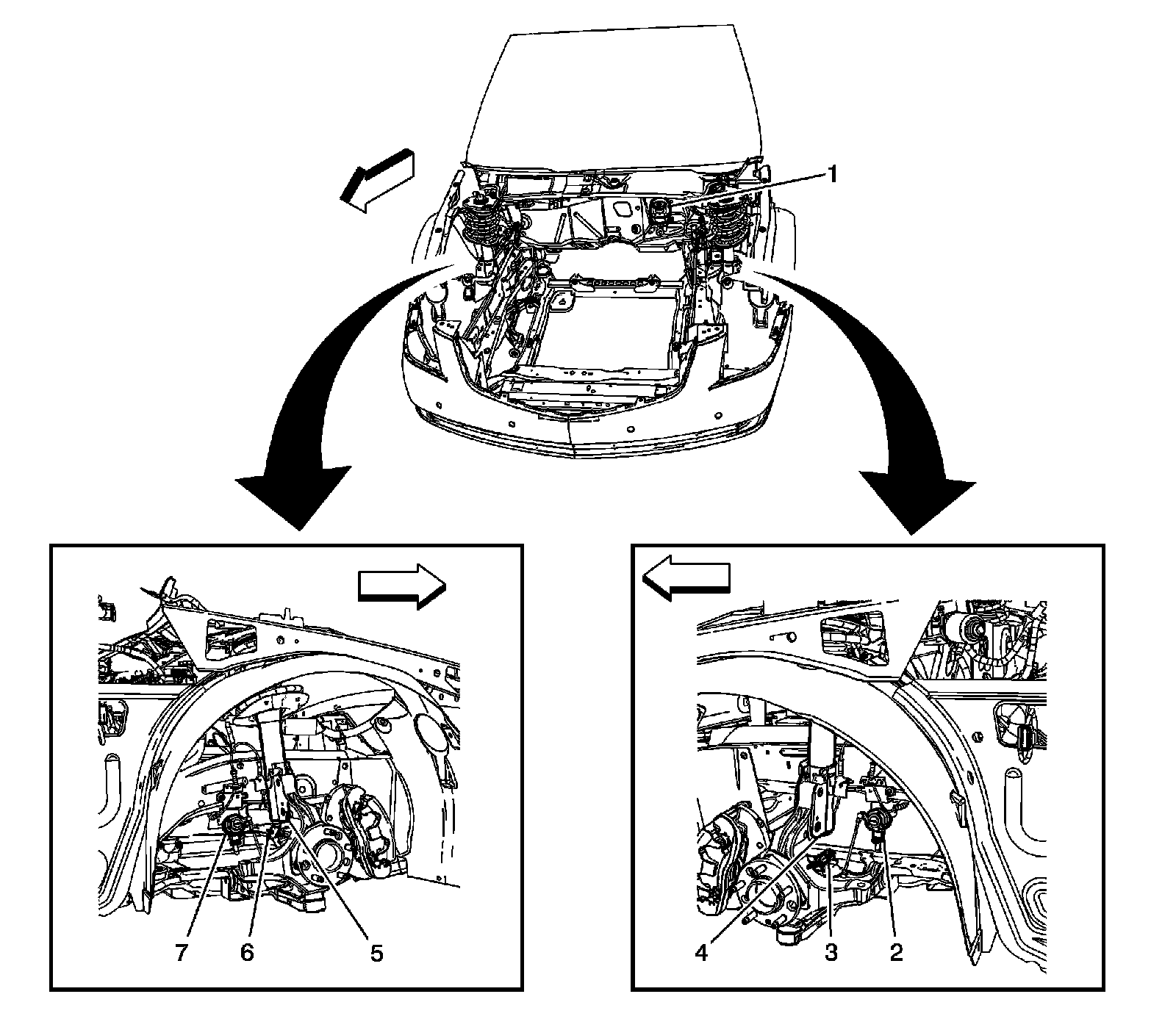

Front Engine Compartment




1 - Brake Fluid Switch
2 - Suspension Position Sensor - Left Front (F55)
3 - Wheel Speed Sensors (WSS) - Left Front
4 - Suspension Damper - Left Front (F55)
5 - Suspension Damper - Right Front (F55)
6 - Wheel Speed Sensors (WSS) - Right Front
7 - Suspension Position Sensor - Right Front (F55)
