Front Lights

Front of Vehicle/Engine Compartment Component Views

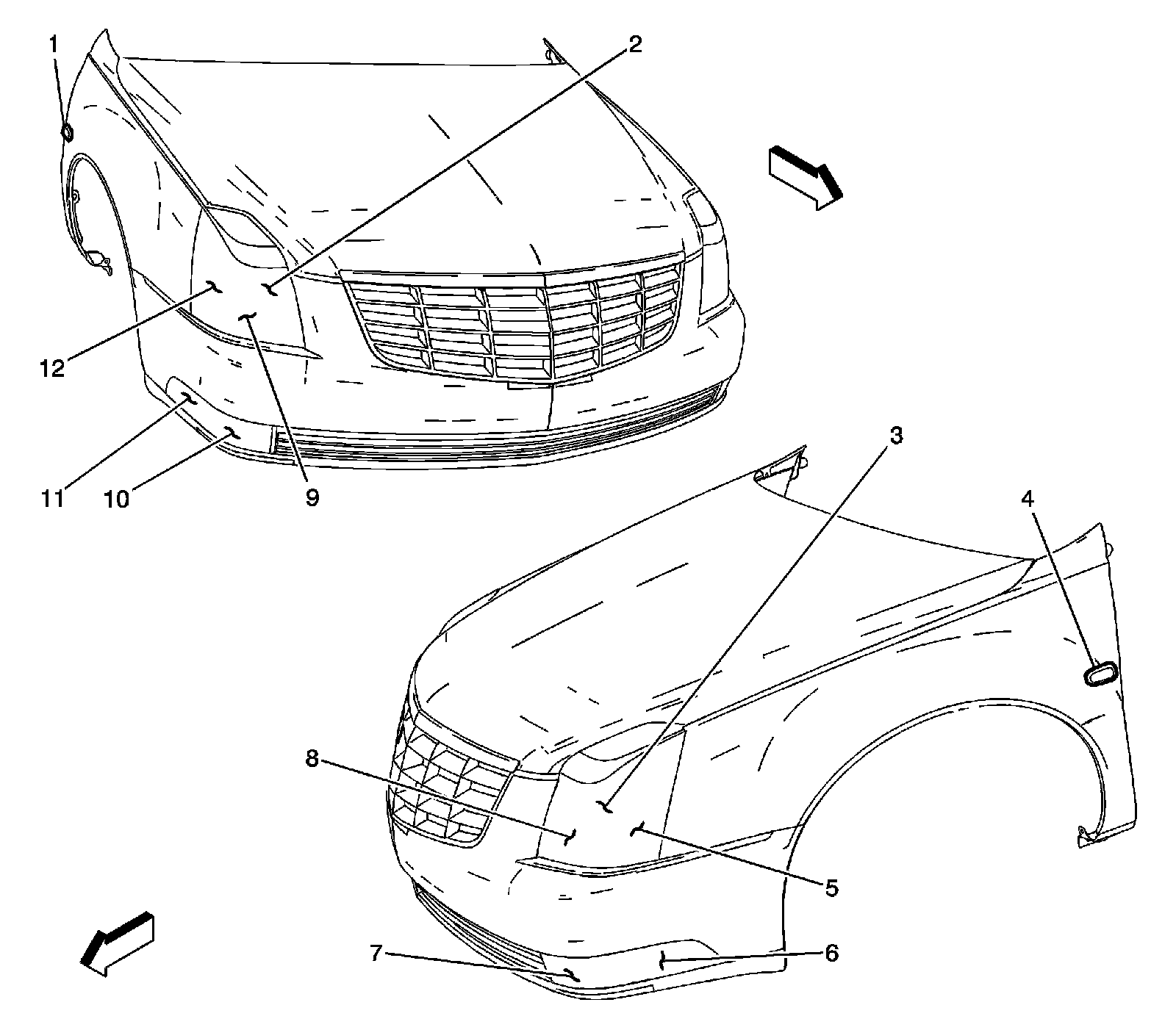

Front Lights




1 - Repeater Lamp - Right (EXP)
2 - Turn Signal / DRL Lamp - Right Front
3 - Turn Signal / DRL Lamp - Left Front
4 - Repeater Lamp - Left (EXP)
5 - Marker Lamp - Left Front
6 - Cornering Lamp - Left Front
7 - Fog Lamp - Left Front
8 - Headlamp High / Low - Left Front
9 - Headlamp High / Low - Right Front
10 - Fog Lamp - Right Front
11 - Cornering Lamp - Right Front
12 - Marker Lamp - Right Front
