HVAC Module Components 2 of 2

Instrument Panel/Center Console Component Views

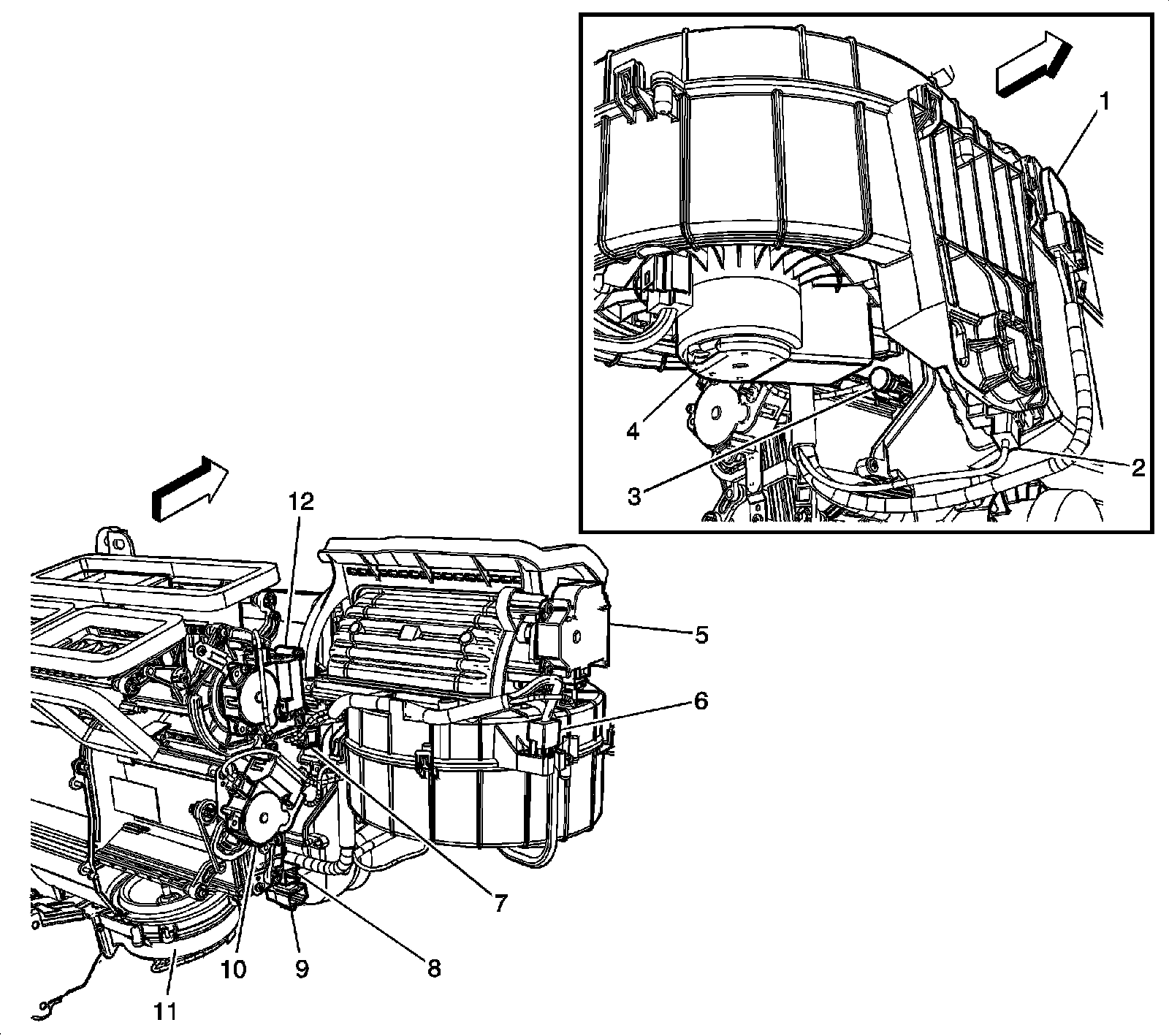

HVAC Module Components 2 of 2




1 - Blower Motor Control Module
2 - Blower Motor Control Module - Auxiliary (CJ4)
3 - Evaporative Temperature Sensor
4 - Blower Motor
5 - Recirculation Actuator
6 - X206 HVAC Harness to Body Harness
7 - Air Temperature Actuator - Front Passenger
8 - X204 HVAC Harness to I/P Harness
9 - X202 HVAC Harness to I/P Harness
10 - Air Temperature Actuator - Rear Passenger
11 - Blower Motor - Auxiliary (CJ4)
12 - Mode Actuator
