I/P Components

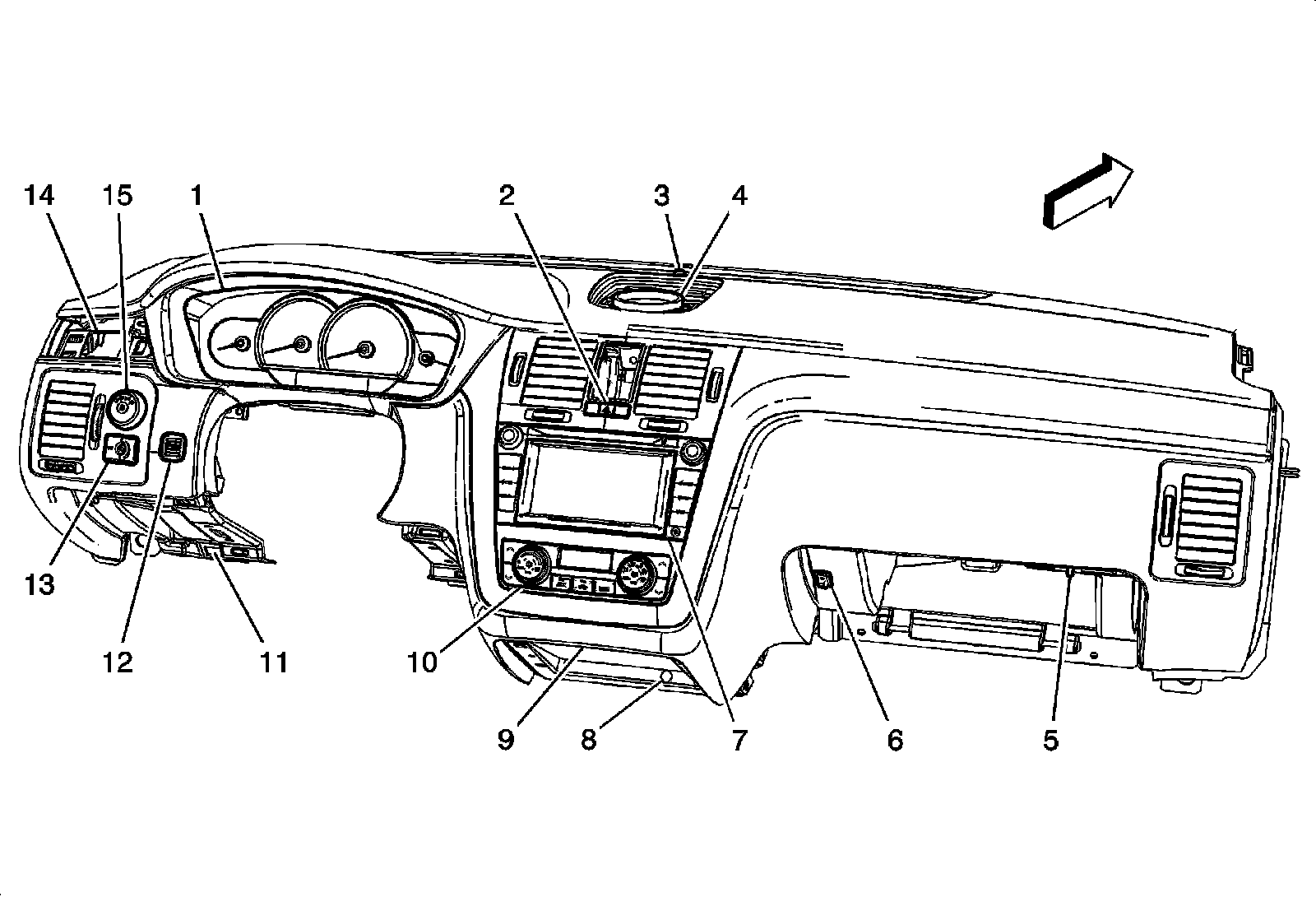

Instrument Panel/Center Console Component Views

I/P Components




1 - Instrument Panel Cluster (IPC)
2 - Hazard Switch
3 - Sunload Twilight Sensor
4 - Speaker - Front Center
5 - I/P Compartment Lamp
6 - Valet Switch
7 - Radio/Navigation Unit (U3Q)
8 - Auxiliary Power Outlet (AV8-DT4), Cigar Lighter (AV8+DT4)
9 - Ashtray Lamp (AV8)
10 - HVAC Control Module
11 - Data Link Connector (DLC)
12 - Air Temperature Sensor - Inside
13 - Rear Compartment Lid Release Switch
14 - Driver Information Center (DIC) Switch
15 - Headlamp Switch
