Steering Column Components

Instrument Panel/Center Console Component Views

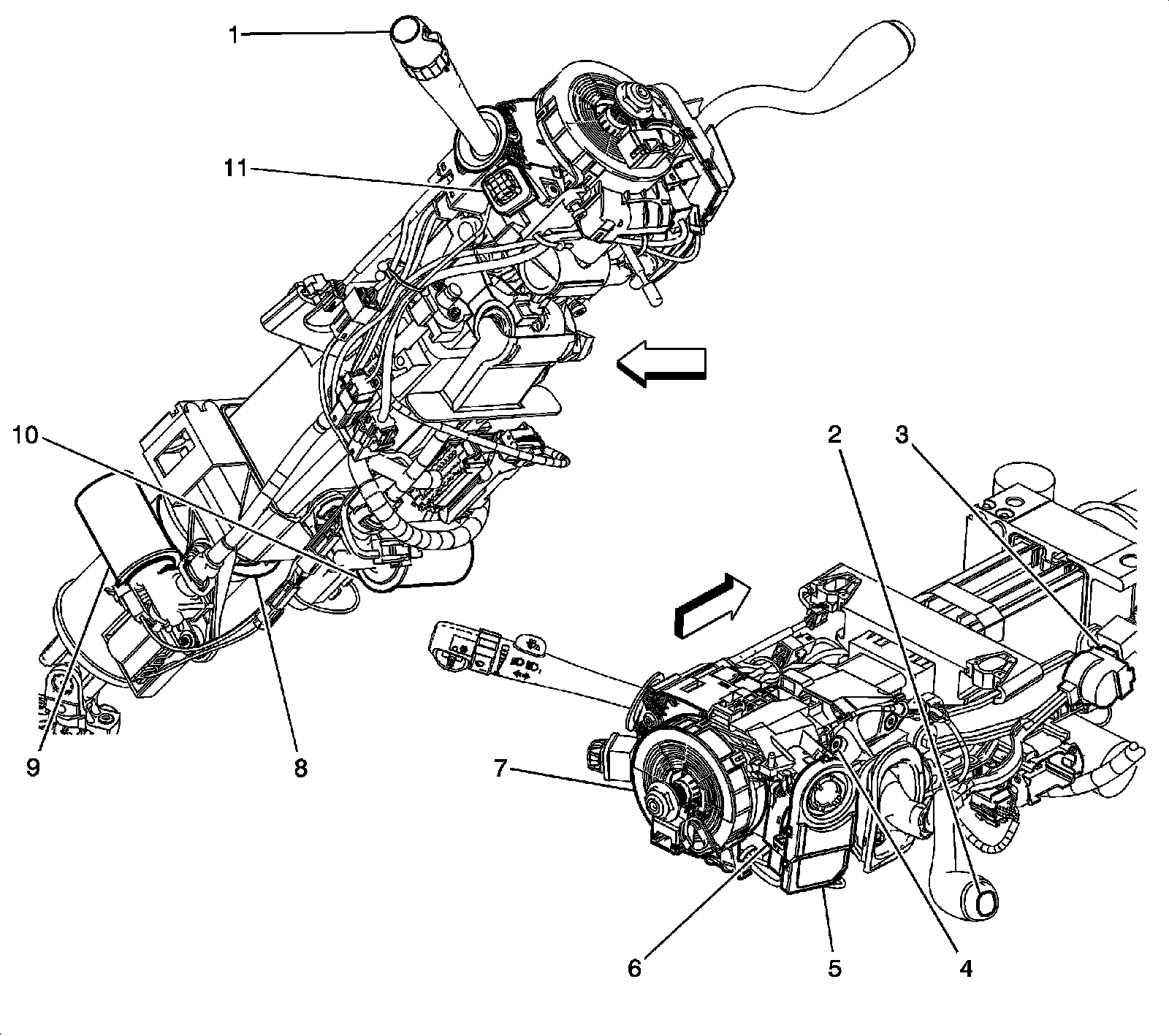

Steering Column Components




1 - Turn Signal/Multifunction Switch
2 - Traction Control Switch (AV8)
3 - Column Shifter Shift Lock Control Solenoid (AV8)
4 - Ignition Key Alarm Switch
5 - Theft Deterrent Module (TDM)
6 - Ignition Switch
7 - Inflatable Restraint Steering Wheel Module Coil
8 - Steering Angle Sensor (JL4)
9 - Telescoping Actuator (N37)
10 - Tilt Actuator (N37)
11 - Tilt/Telescope Switch (N37)
