Rear Toe Adjustment

Rear Toe Adjustment





Note: Complete the left and right rear toe adjustments separately, per wheel. Use the following procedure.

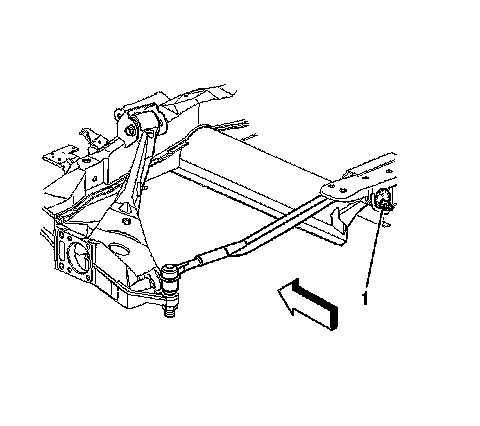

1. Loosen the cam lock nut (1) on the adjustment link.

Caution: Refer to Fastener Caution (Fastener Caution).

2. In order to adjust the toe, rotate the cam bolt using an 8 mm socket. Refer to Wheel Alignment Specifications (Wheel Alignment Specifications).

Tighten the cam lock nut to 75 Nm (55 lb ft).
