Accelerator Pedal Position Sensor: Locations

Instrument Panel/Center Console Component Views

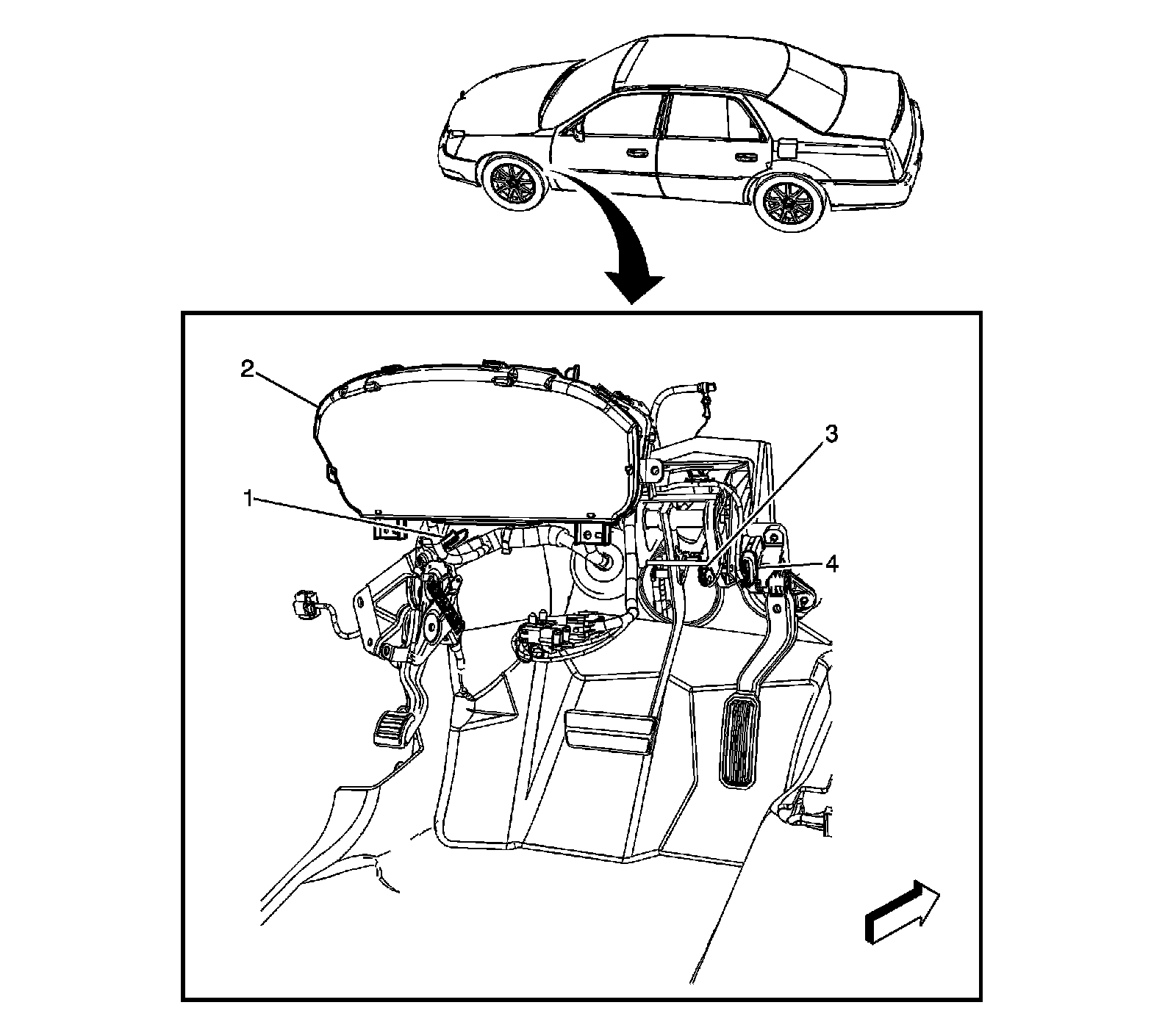

Lower Left Side of I/P




1 - Park Brake Switch
2 - Instrument Cluster
3 - Brake Pedal Position Sensor
4 - Accelerator Pedal Position (APP) Sensor
