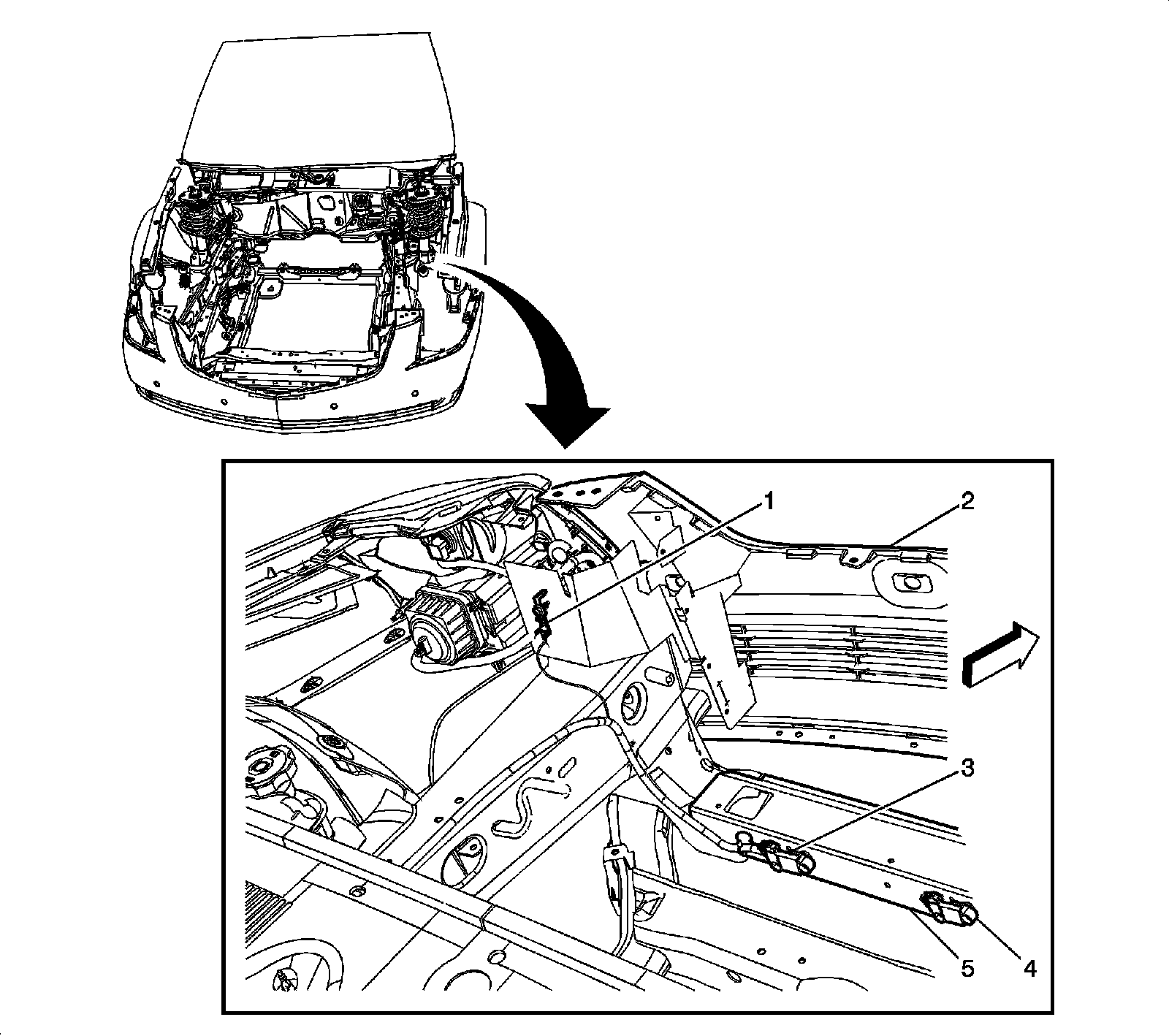

Left Side of Engine Compartment (1 of 2)

Front of Vehicle/Engine Compartment Component Views

Left Side of Engine Compartment (1 of 2)




1 - G101
2 - Front Fascia
3 - Inflatable Restraint Front End Sensor - Left
4 - Inflatable Restraint Front End Sensor - Right
5 - Lower Front Tie Bar
