Home
>>
Cadillac
>>
2011
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
>>
Fuse Block - Rear
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuse Block - Rear

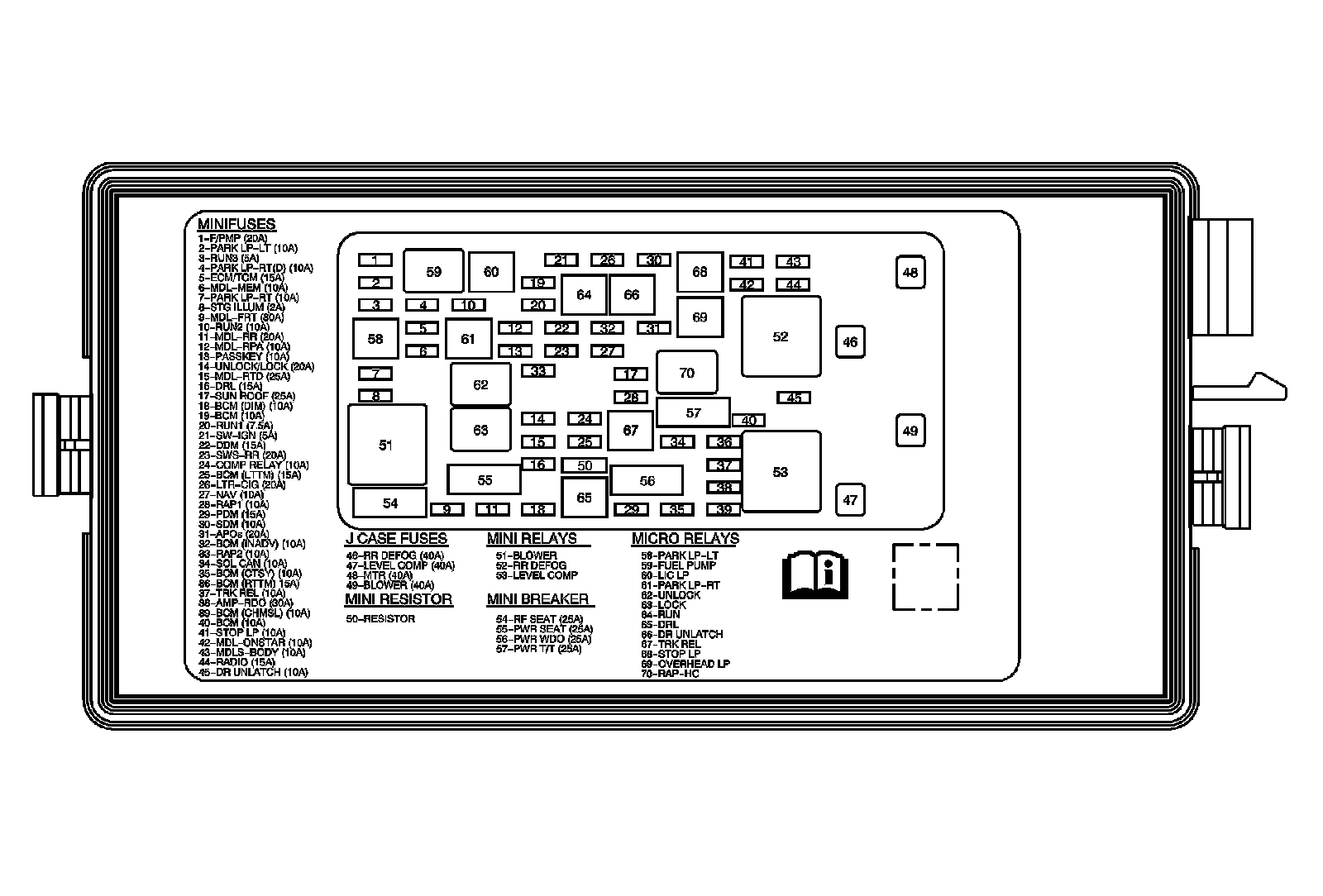

Electrical Center Identification Views

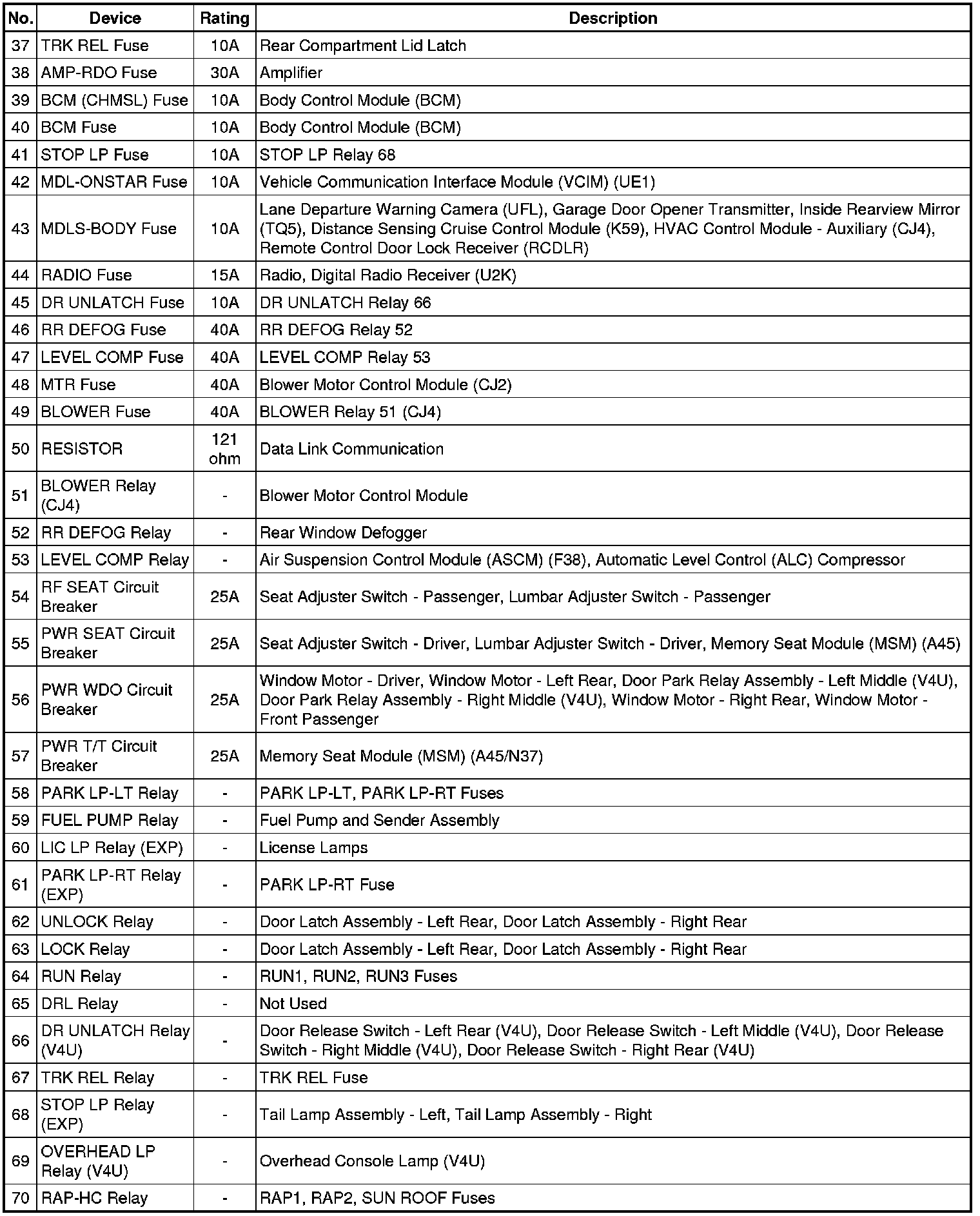

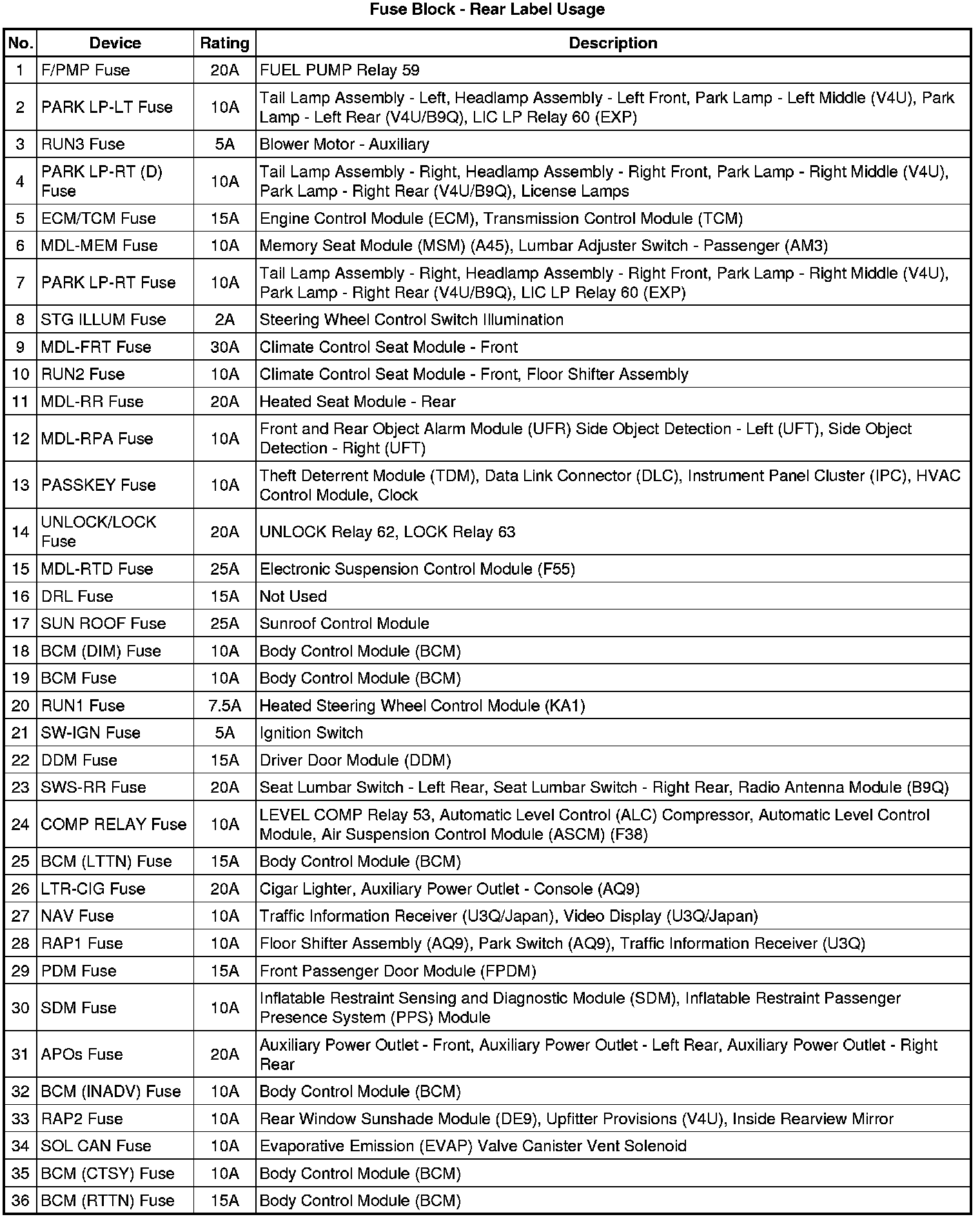

Fuse Block - Rear Label
