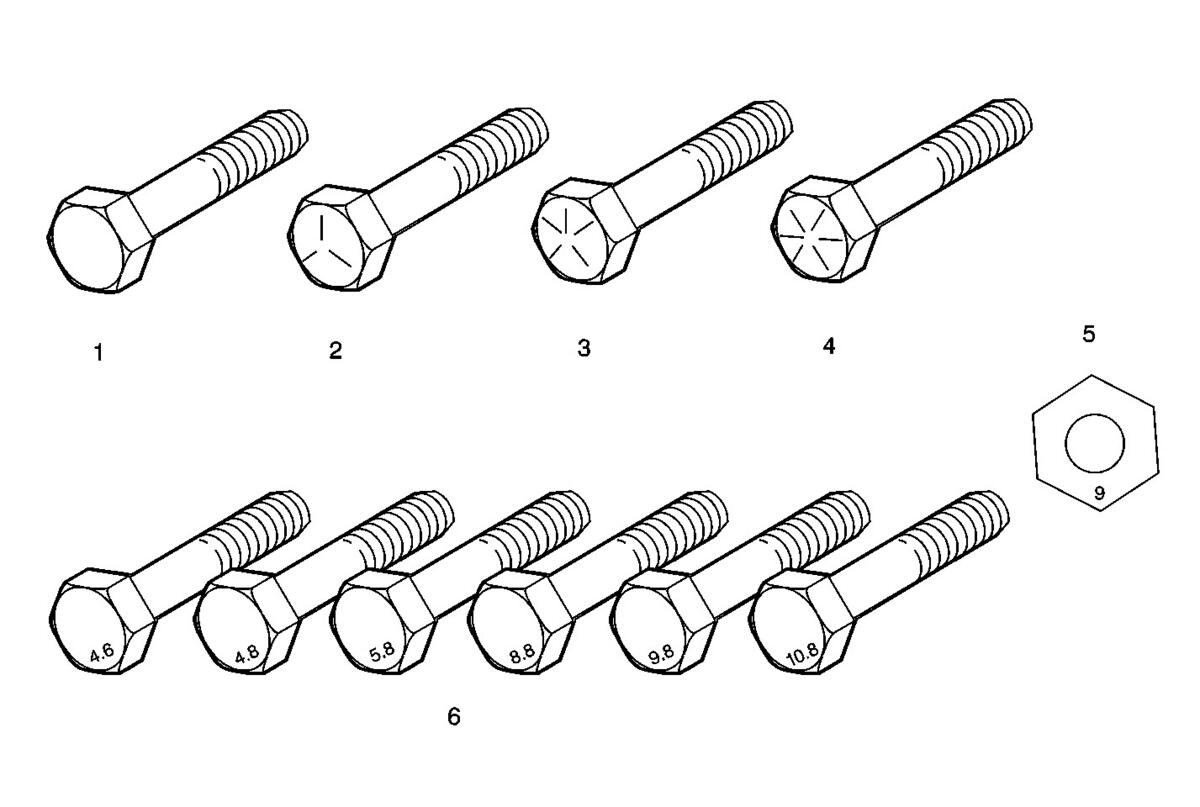

Fastener Strength Identification
| Callout | Component Name |
|---|---|
| 1 | English Bolt, Grade 2 (Strength Class) |
| 2 | English Bolt, Grade 5 (Strength Class) |
| 3 | English Bolt, Grade 7 (Strength Class) |
| 4 | English Bolt, Grade 8 (Strength Class) |
| 5 | Metric Nut, Strength Class 9 |
| 6 | Metric Bolts, Strength Class Increases as Numbers Increase |
The most commonly used metric fastener strength property classes are 9.8 and 10.9. The class identification is embossed on the head of each bolt. The English, inch strength classes range from grade 2 to grade 8. Radial lines are embossed on the head of each bolt in order to identify the strength class. The number of lines on the head of the bolt is 2 lines less than the actual grade. For example, a grade 8 bolt will have 6 radial lines on the bolt head. Some metric nuts are marked with a single digit strength identification number on the nut face.
The correct fasteners are available through GM SPO. Many metric fasteners available in the aftermarket parts channels are designed to metric standards of countries other than the United States, and may exhibit the following:
- Lower strength
- No numbered head marking system
- Wrong thread pitch
The metric fasteners on GM products are designed to new, international standards. The following are the common sizes and pitches, except for special applications:
- M6.0 X 1
- M8 X 1.25
- M10 X 1.5
- M12 X 1.75
- M14 X 2.00
- M16 X 2.00
