Auxiliary Body Control Module Replacement (Domestic)

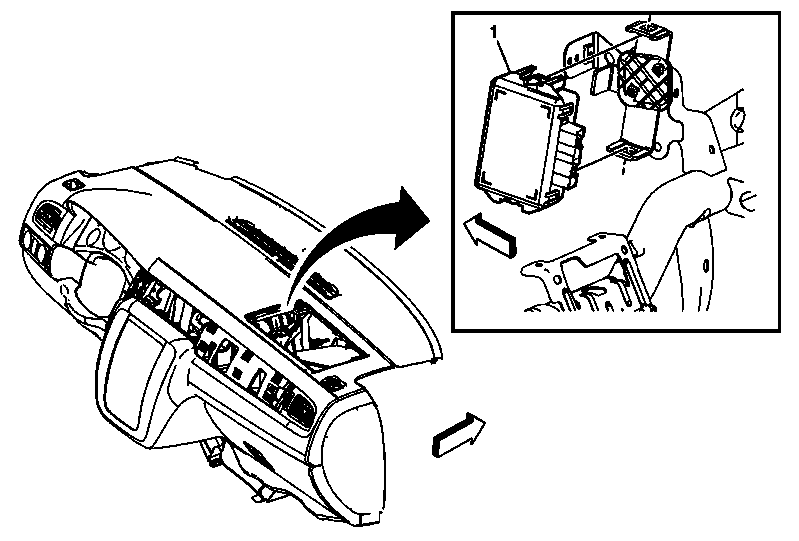

Fig 1: Auxiliary Body Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the inflatable restraint module. Refer to Instrument Panel Inflatable Restraint Module Replacement .
1	Auxiliary Body Control Module Procedure Press on the tabs to release the auxiliary body control module. Disconnect the electrical connectors. Reprogram the auxiliary body control module if replaced. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures
Remove the inflatable restraint module. Refer to Instrument Panel Inflatable Restraint Module Replacement .

Auxiliary Body Control Module

Procedure

Press on the tabs to release the auxiliary body control module.
Disconnect the electrical connectors.
Reprogram the auxiliary body control module if replaced. Refer to Control Module References .
