Body Control Module Replacement

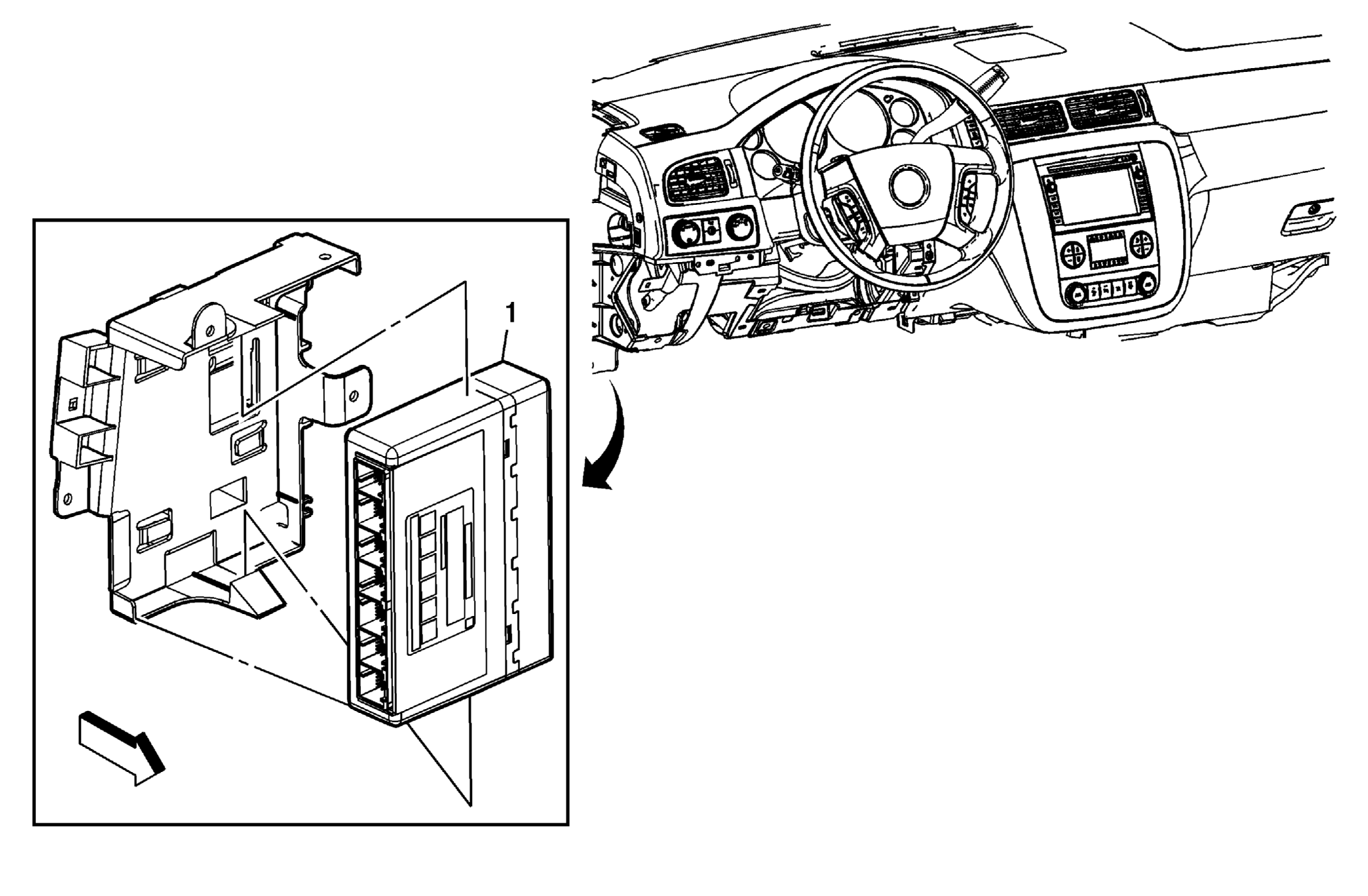

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the knee bolster. Refer to Knee Bolster Replacement (Except Cadillac) , Knee Bolster Replacement (Cadillac)
1	Body Control Module Remove the BCM cover. Disconnect the electrical connectors. Press on the tabs to release the body control module. If a replacement module is installed, program the module. Refer to Control Module References .
