Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References

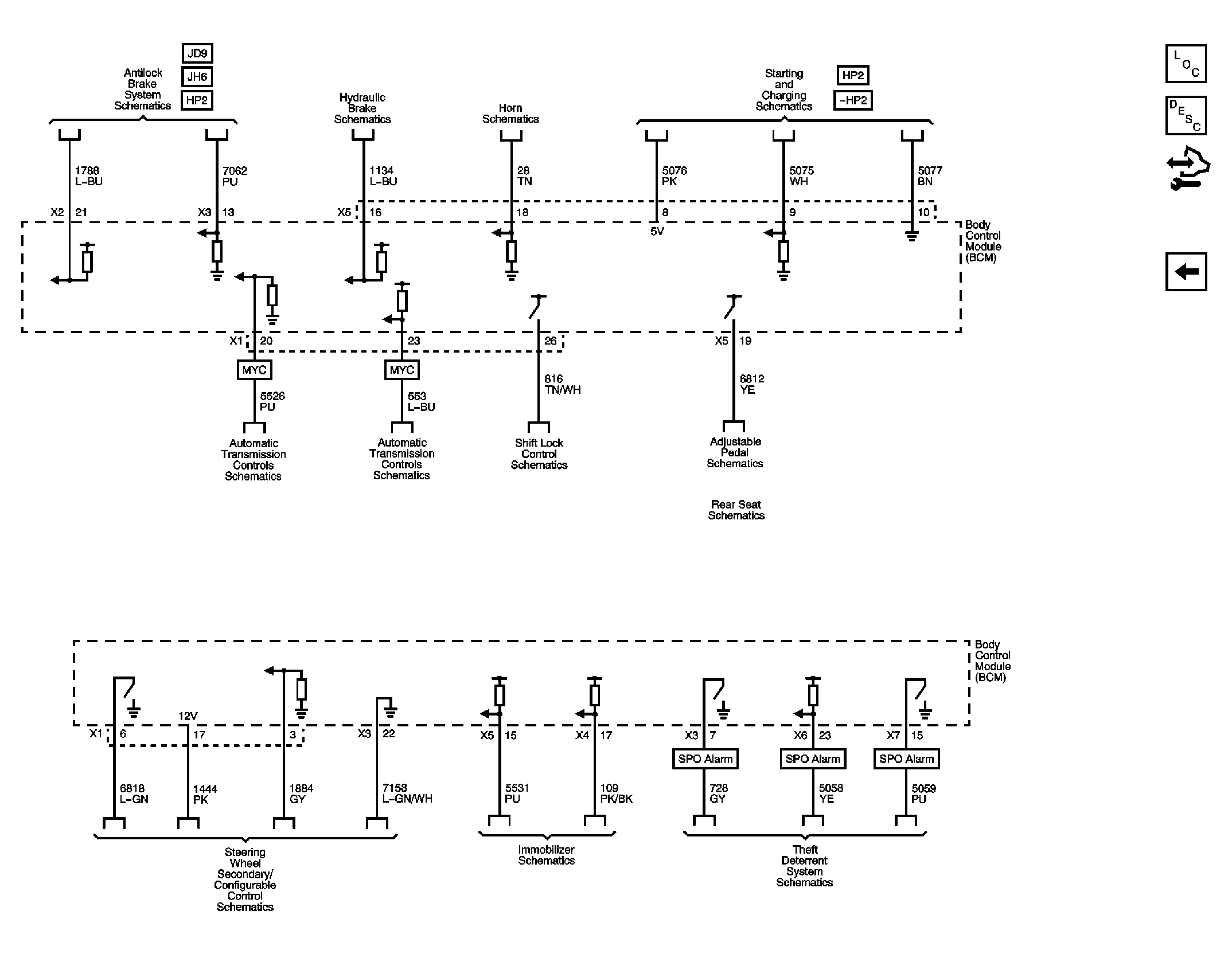

Fig 1: Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References Wiring Schematic
GM2399871Courtesy of GENERAL MOTORS CORP.
