Exterior Light References

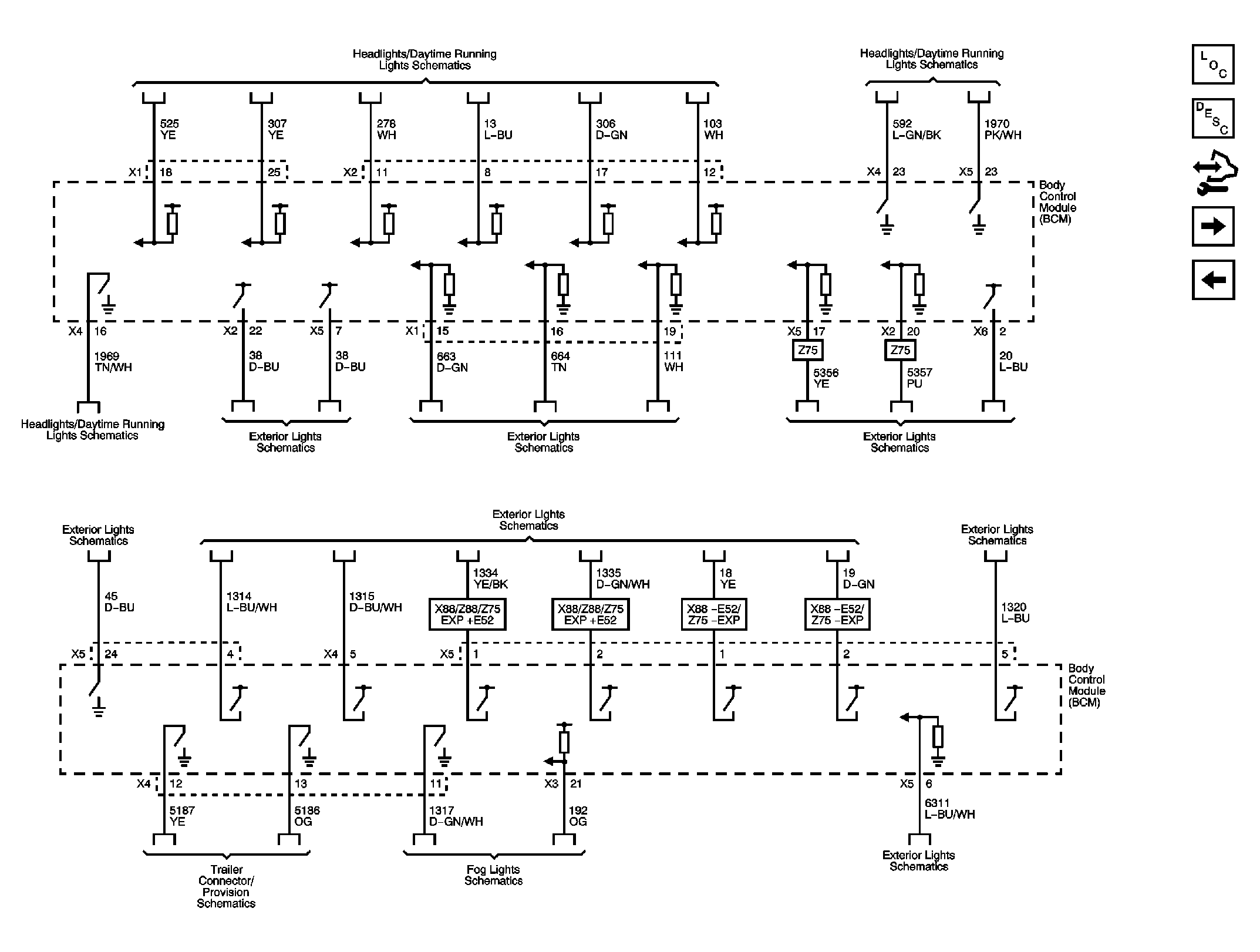

Fig 1: Exterior Light References Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
