Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Schematics
>>
Body Control System Schematics
>>
Module Power, Ground, and Serial Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Module Power, Ground, and Serial Data

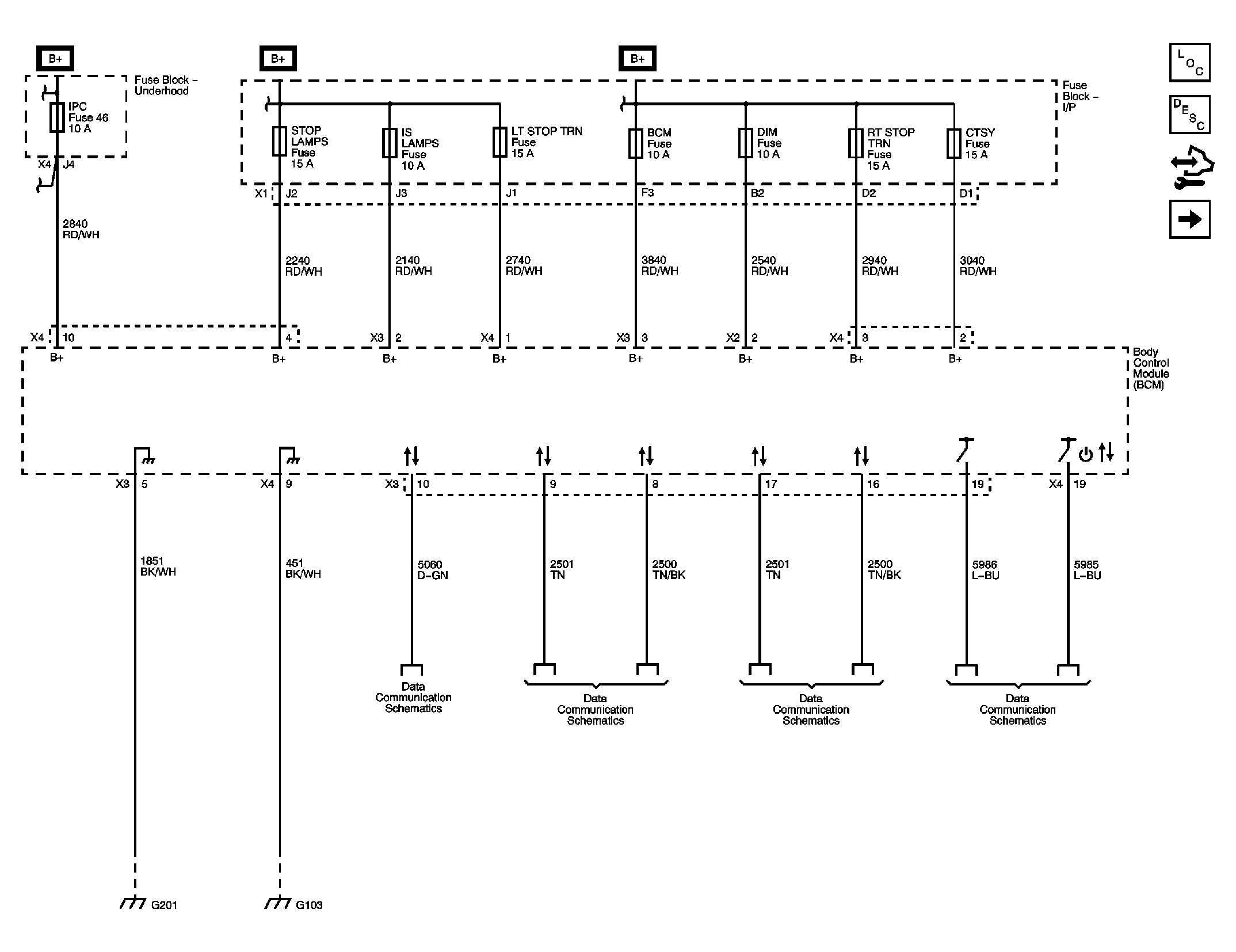

Fig 1: Module Power, Ground, and Serial Data Wiring Schematic
