Vehicle Access and Wiper References

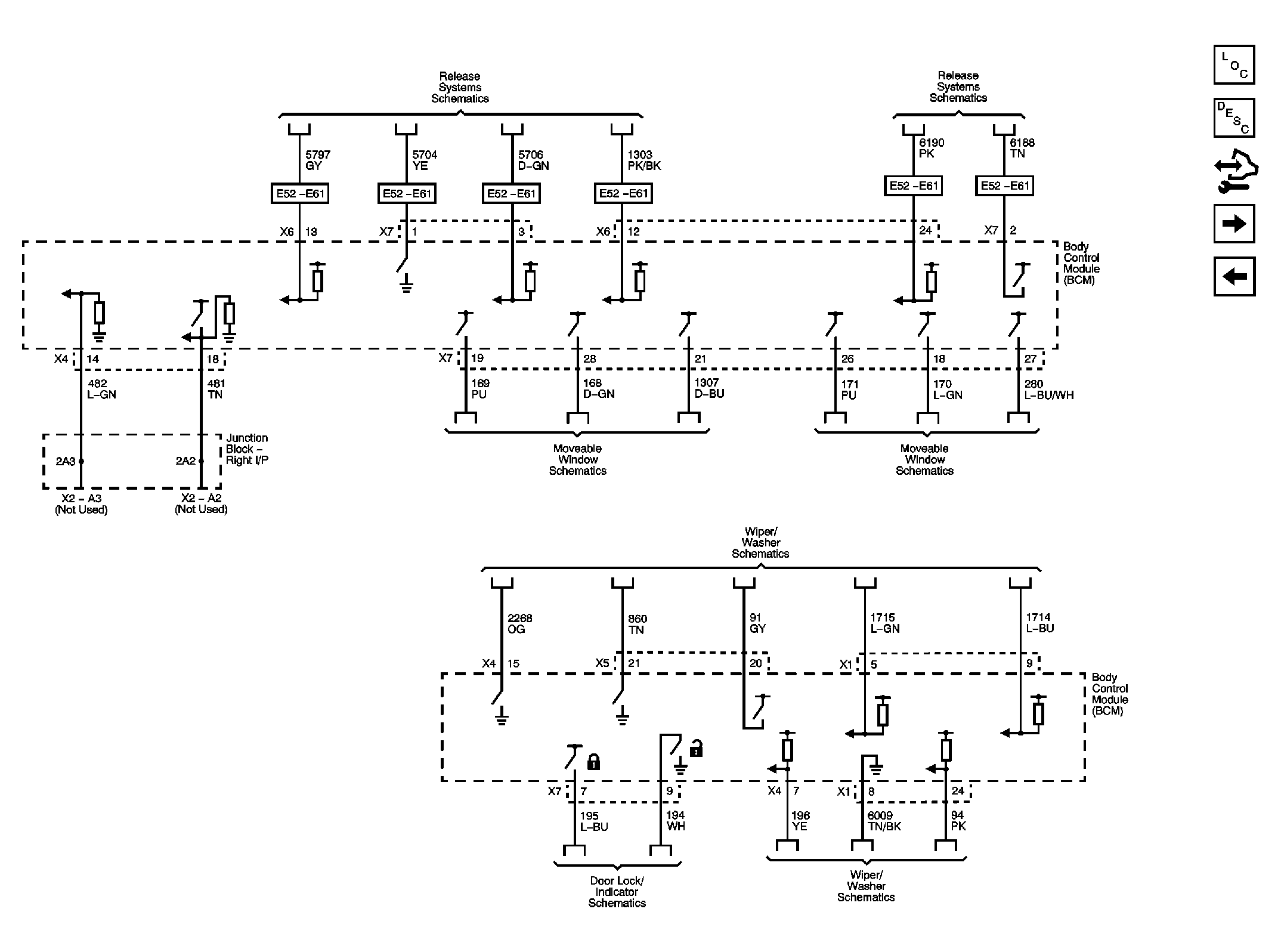

Fig 1: Vehicle Access and Wiper References Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
