Linear Interconnect Network (LIN) Bus

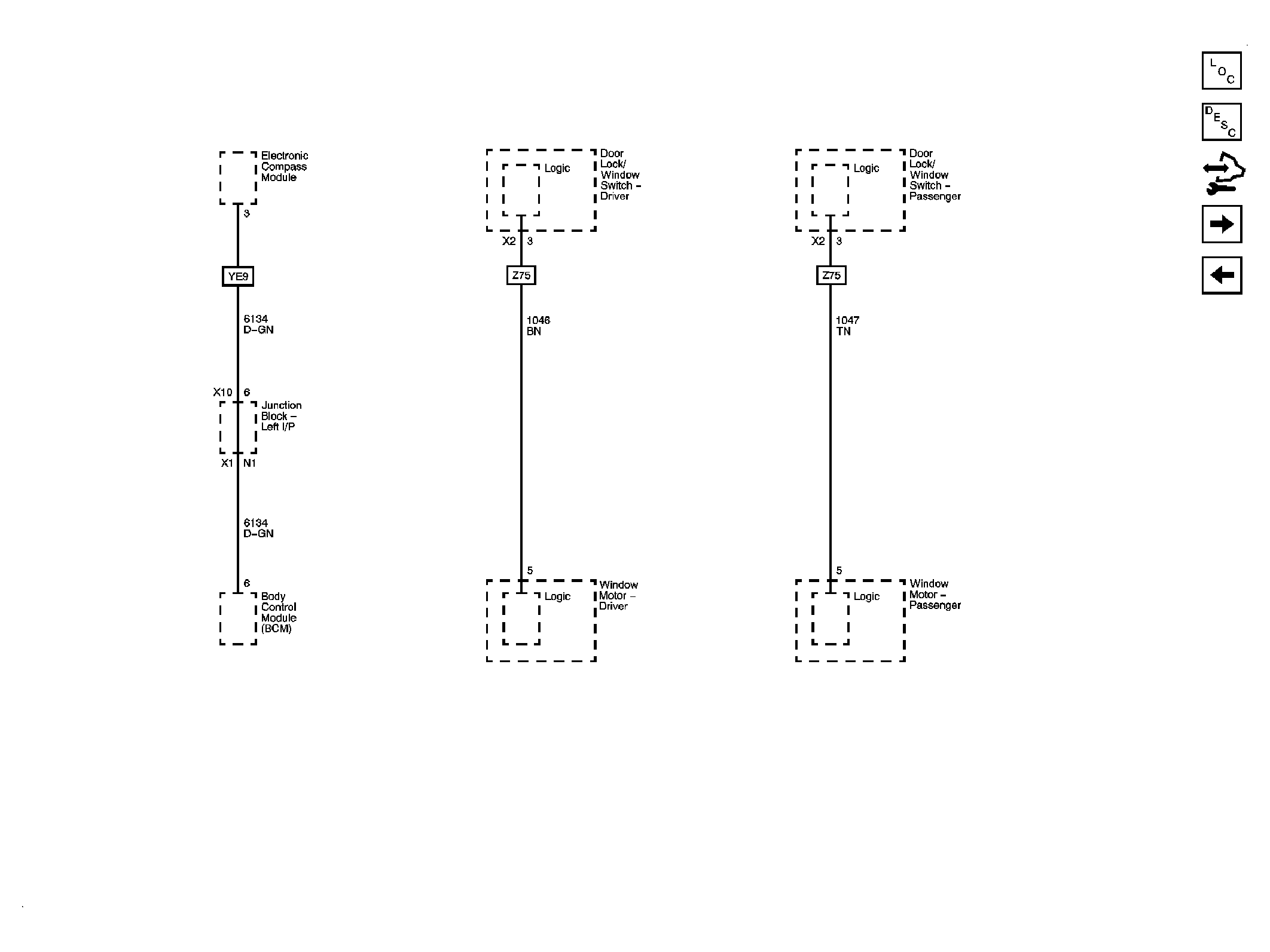

Fig 1: Linear Interconnect Network (LIN) Bus Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
