Powertrain Expansion Bus (HP2)

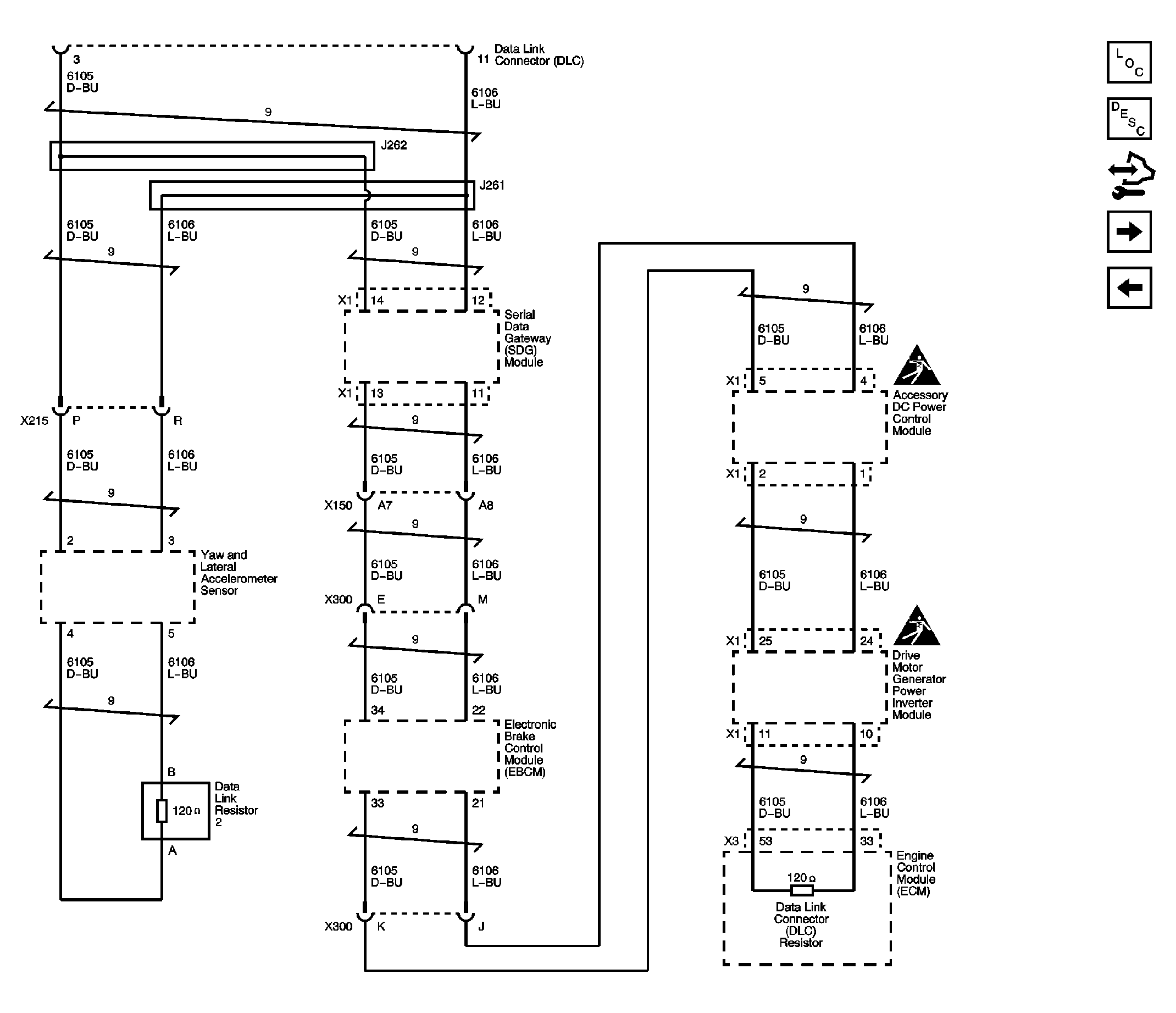

Fig 1: Powertrain Expansion Bus (HP2) Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
