Serial Data Communication Enable and Wake-up Circuits

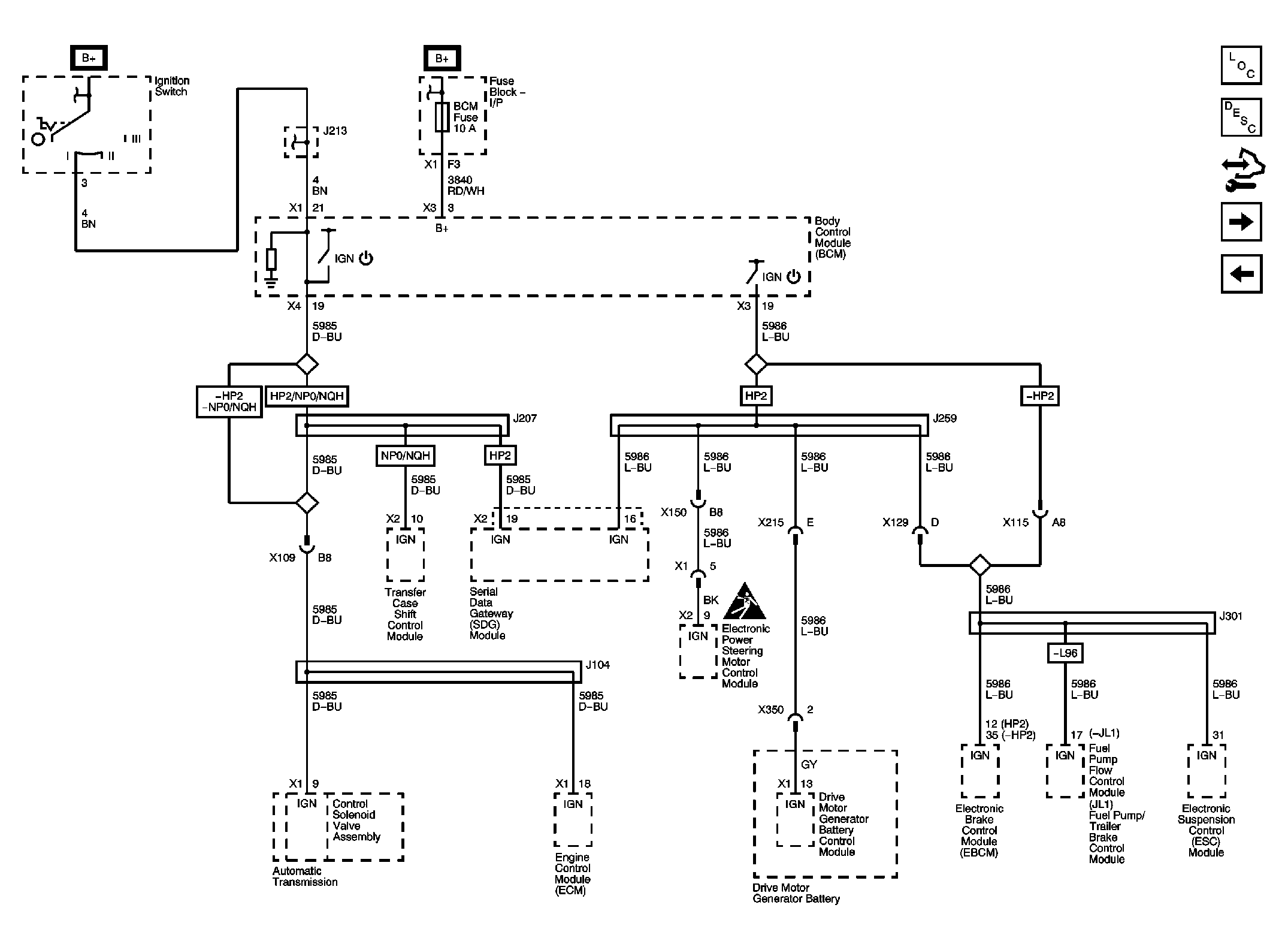

Fig 1: Serial Data Communication Enable and Wake-up Circuits Wiring Schematic
GM2398339Courtesy of GENERAL MOTORS CORP.
