Remote Function Schematics

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

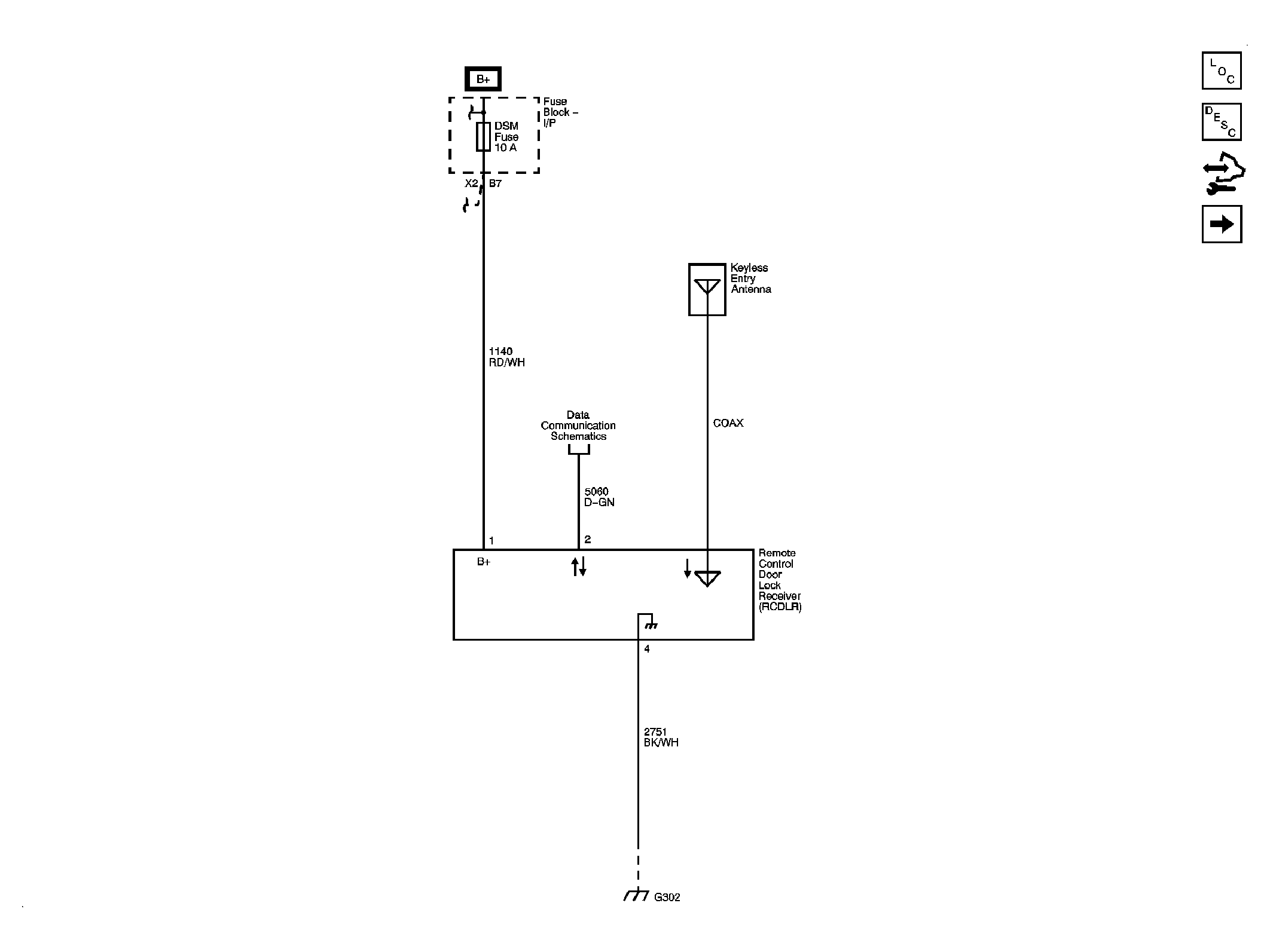

Fig 1: Keyless Entry
GM1916790Courtesy of GENERAL MOTORS CORP.

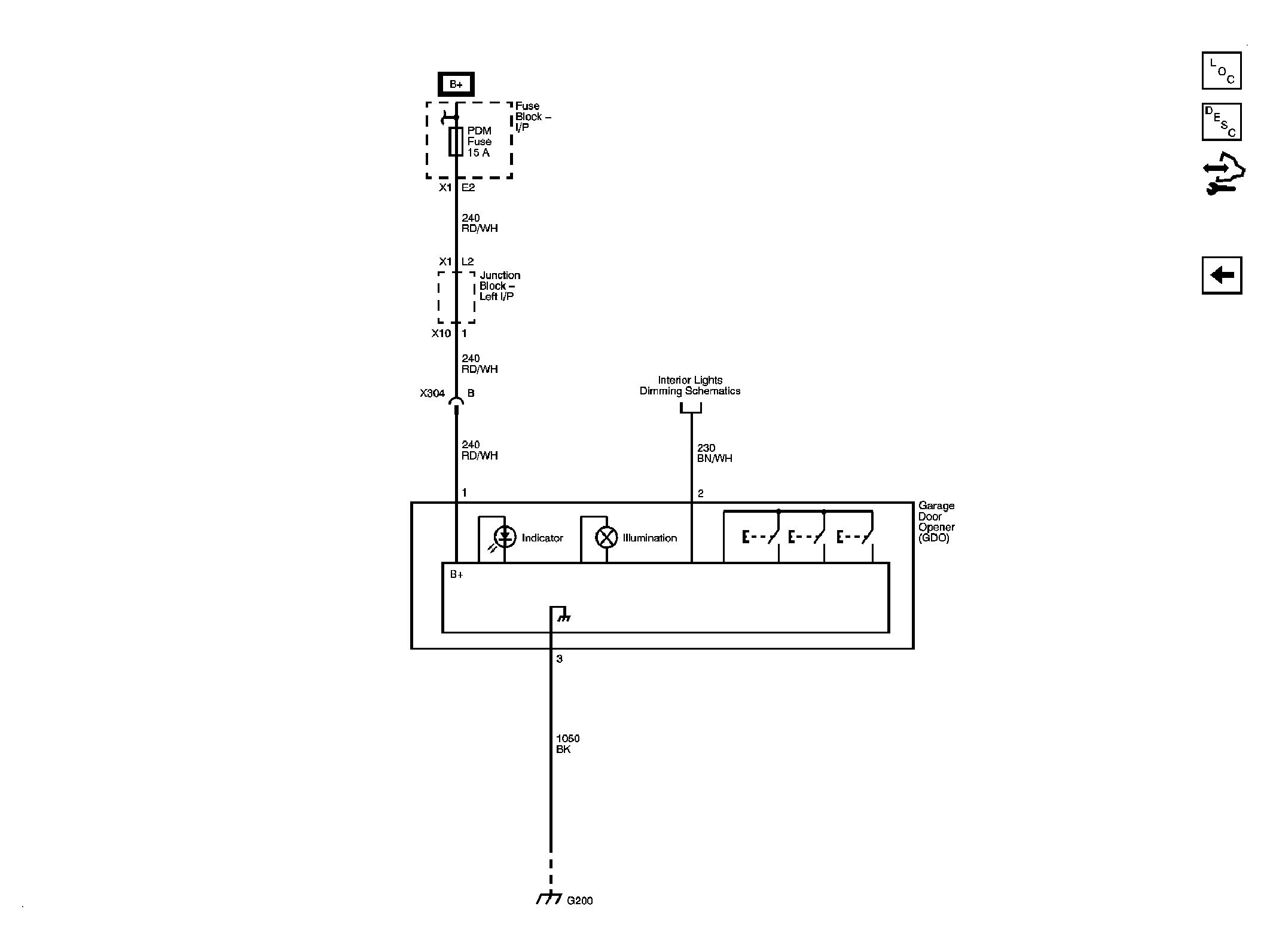

Fig 2: Garage Door Opener
GM1916792Courtesy of GENERAL MOTORS CORP.
