Front Seat Belt Guide Adjuster Replacement

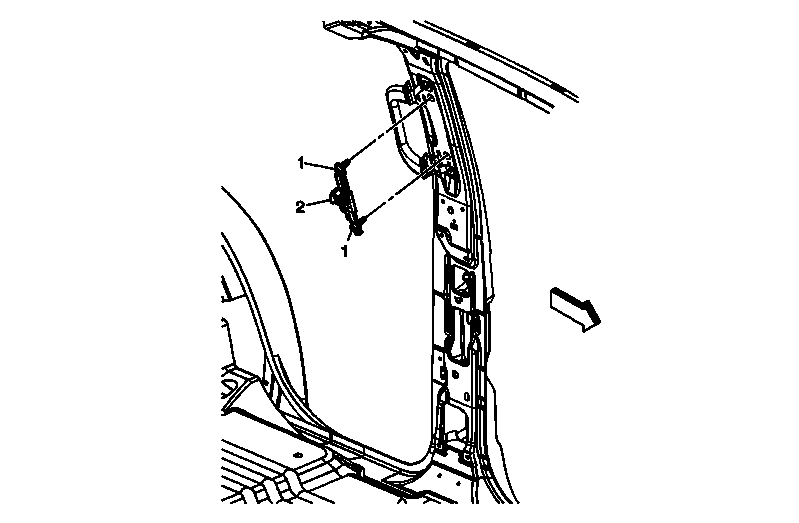

Fig 1: Front Seat Belt Guide Adjuster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove front door sill plate. Refer to Front Side Door Sill Trim Plate Replacement . Remove rear door sill plate. Refer to Rear Side Door Sill Trim Plate Replacement (Extended Wheelbase) , Rear Side Door Sill Trim Plate Replacement (Standard Wheelbase) . Remove front seat shoulder belt adjuster cover. Refer to Seat Belt Height Adjuster Knob Replacement - Front . Remove center pillar lower garnish molding. Refer to Center Pillar Lower Garnish Molding Replacement . Remover center pillar upper garnish molding. Refer to Center Pillar Upper Garnish Molding Replacement . Remove front seat belt. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
1	Front Seat Shoulder Belt Guide Adjuster Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	Front Seat Shoulder Belt Guide Adjuster Assembly

Callout

Component Name

Preliminary Procedure

Front Seat Shoulder Belt Guide Adjuster Bolt (Qty: 2)

CAUTION:

Tighten
50 N.m (37 lb ft)

Front Seat Shoulder Belt Guide Adjuster Assembly
