Antenna Control Module




Component Connector End Views

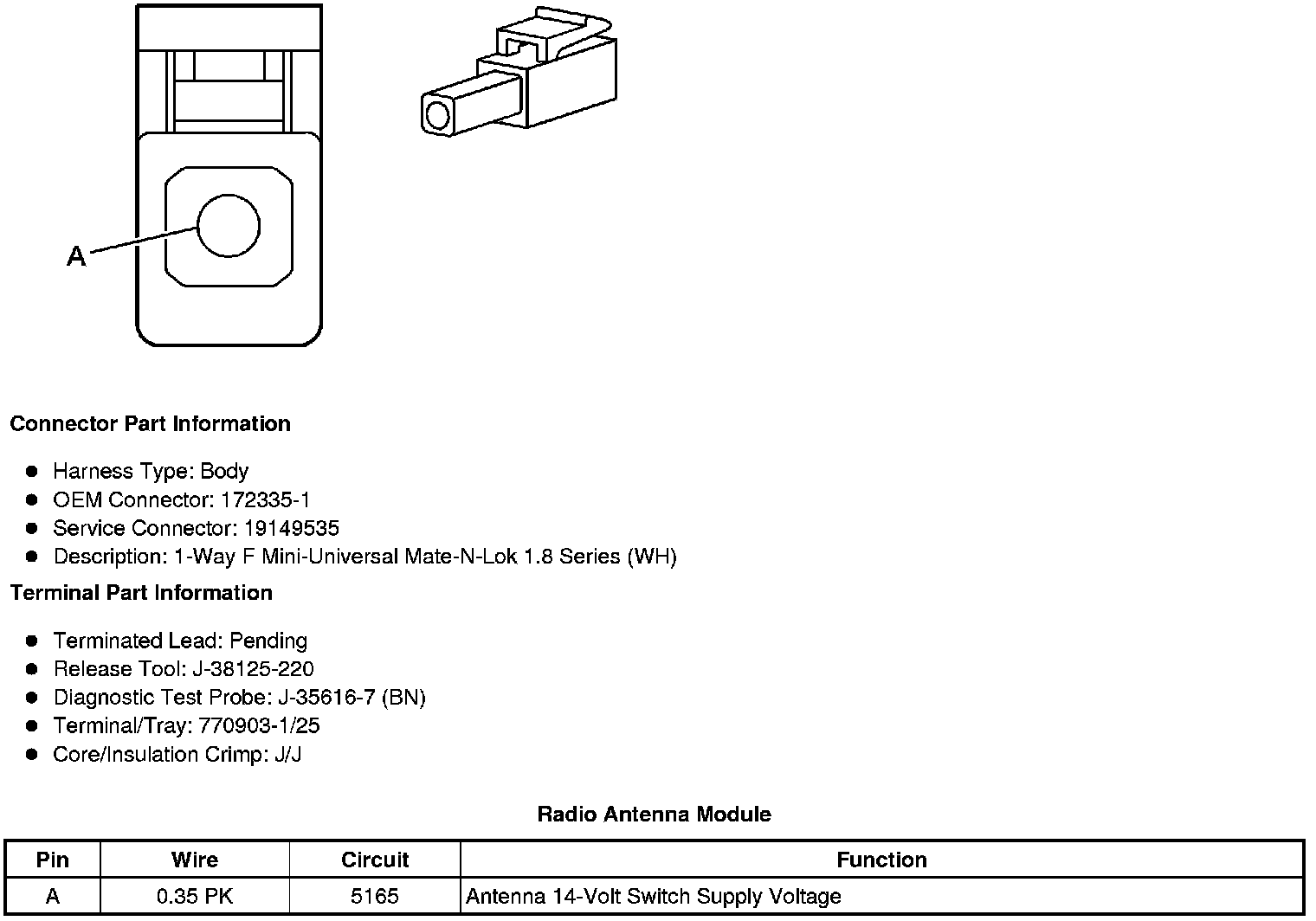

Radio Antenna Module

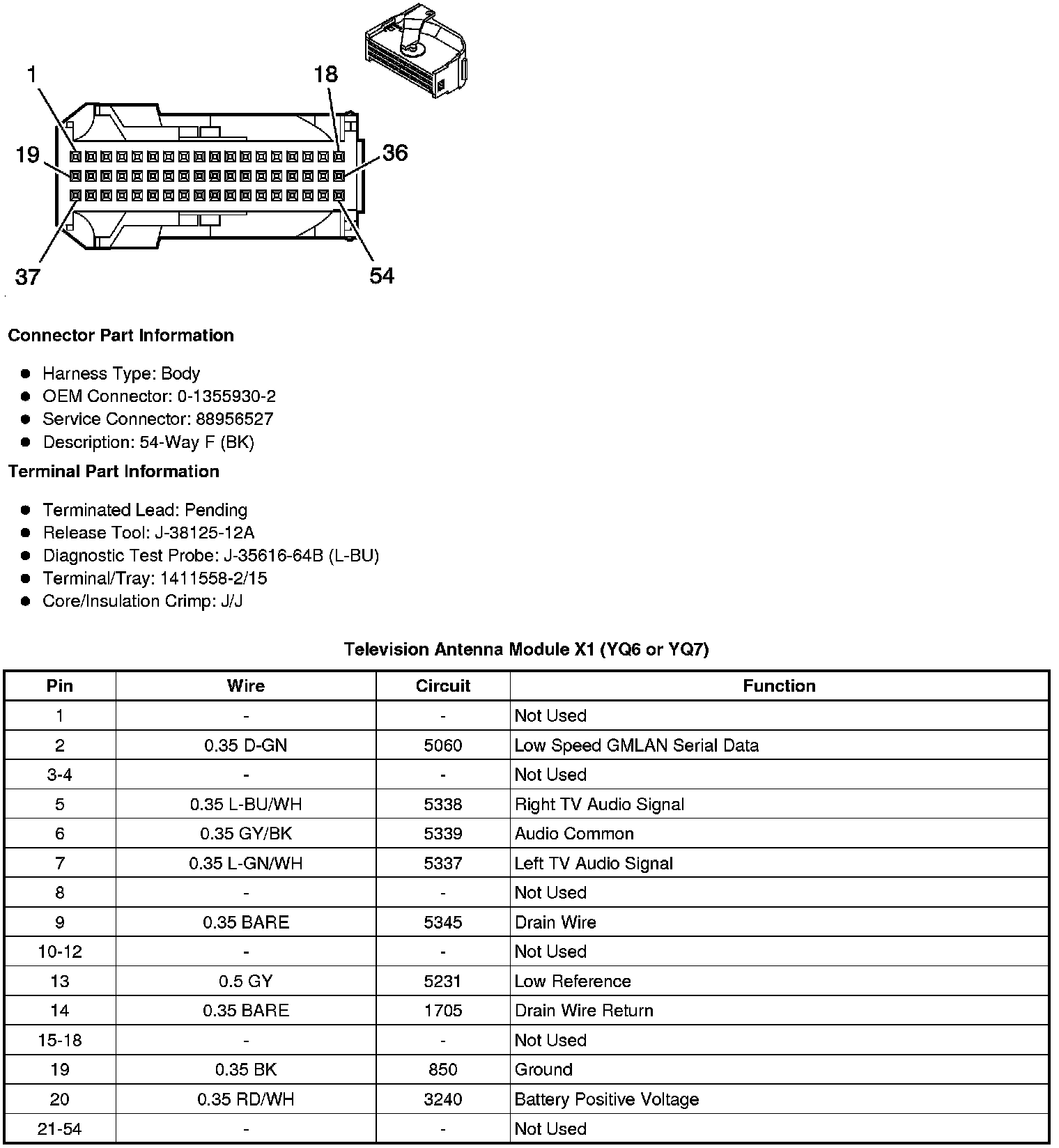

Television Antenna Module X1 (YQ6 or YQ7)

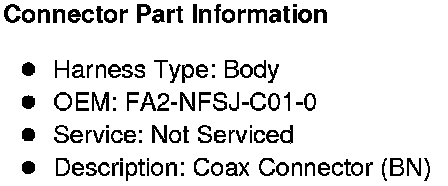

Television Antenna Module X2 (YQ6 or YQ7)

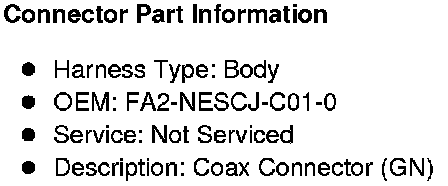

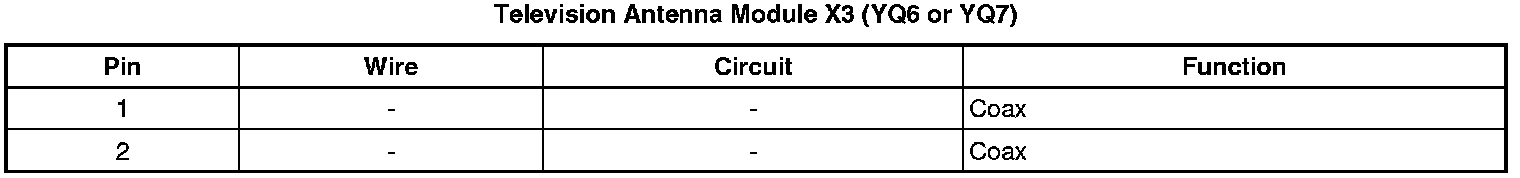

Television Antenna Module X3 (YQ6 or YQ7)
