Compressor/Pump, Suspension Control

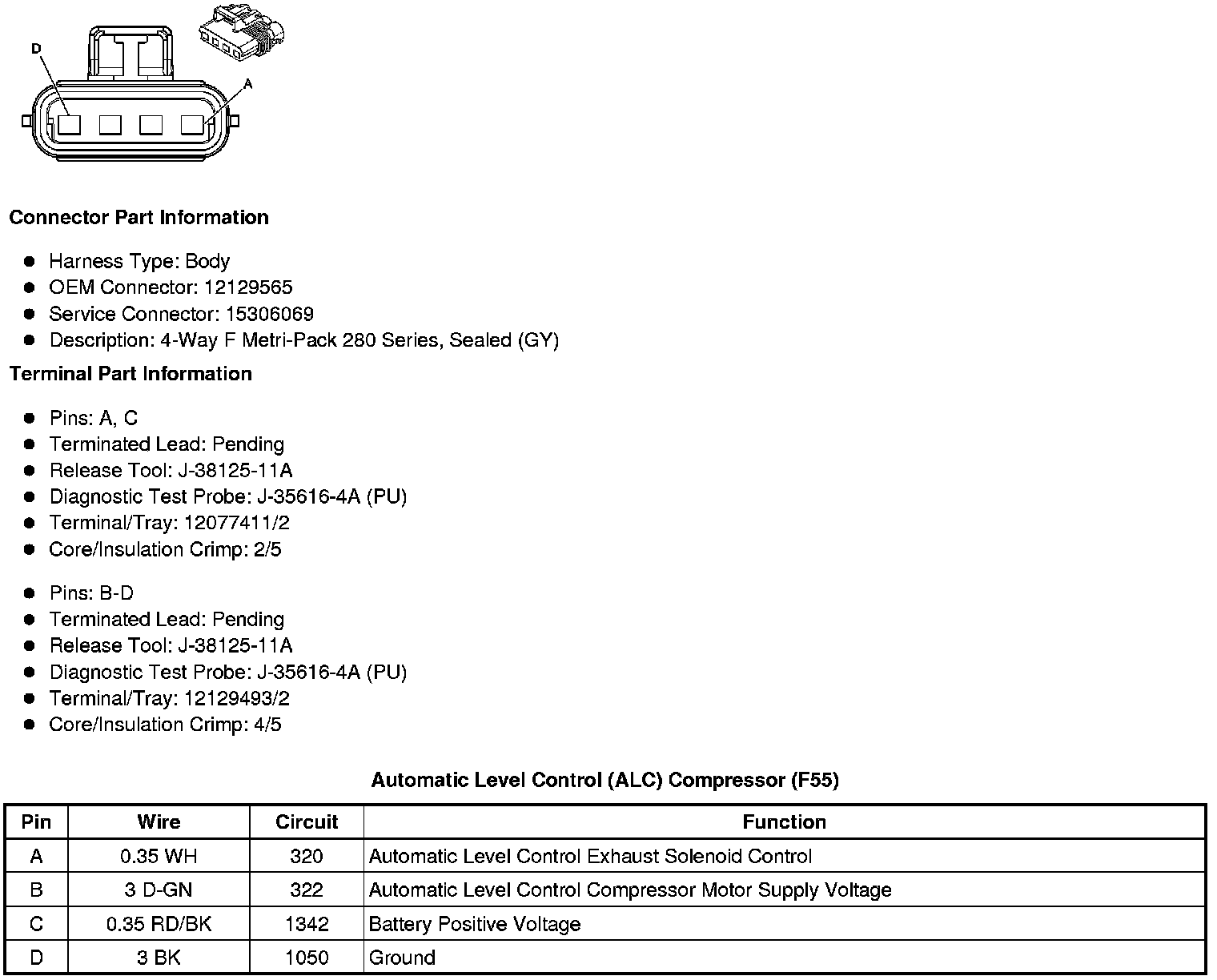

Component Connector End Views
Automatic Level Control (ALC) Compressor (F55)
