Control Module HVAC




Component Connector End Views

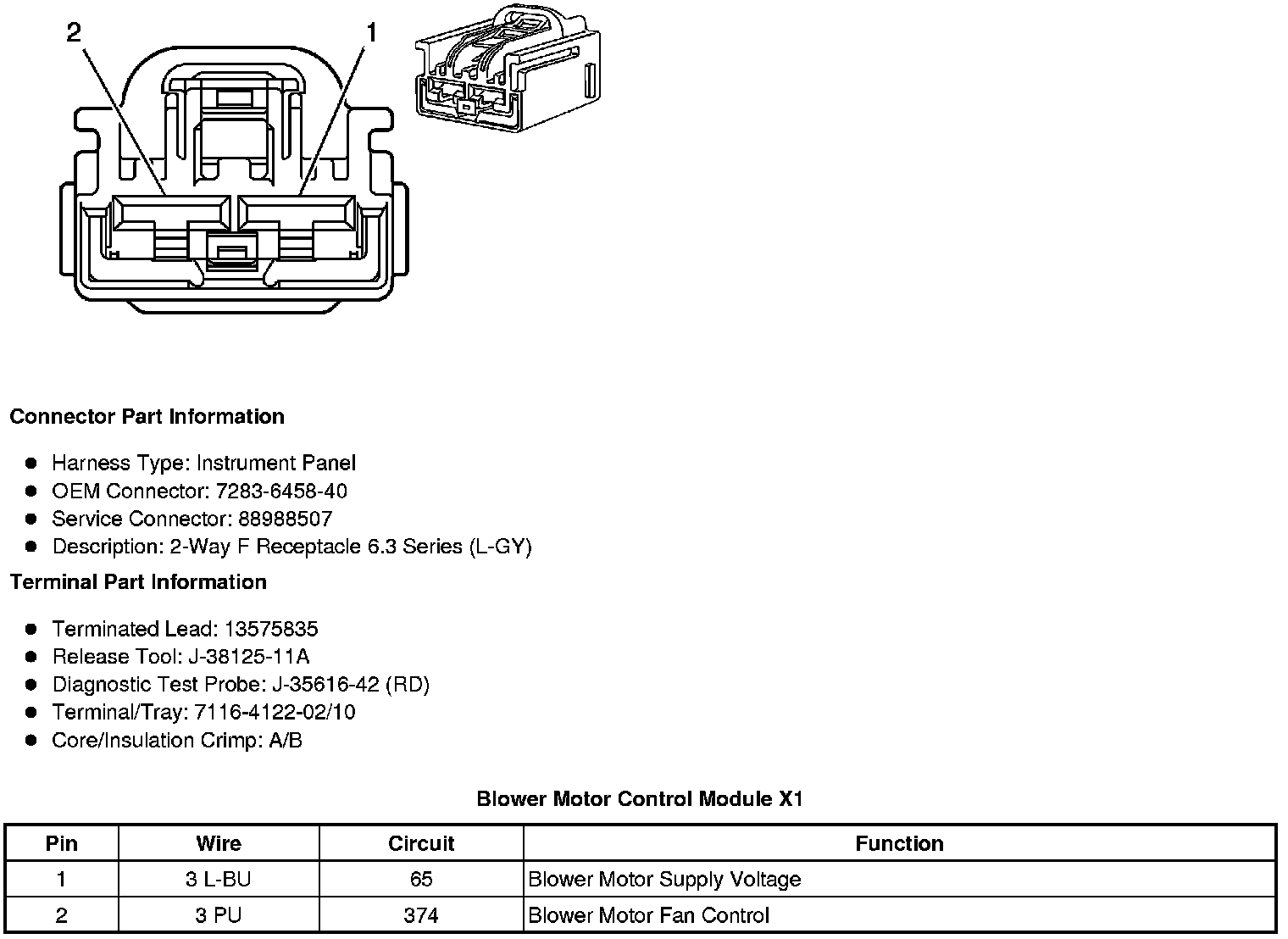

Blower Motor Control Module X1

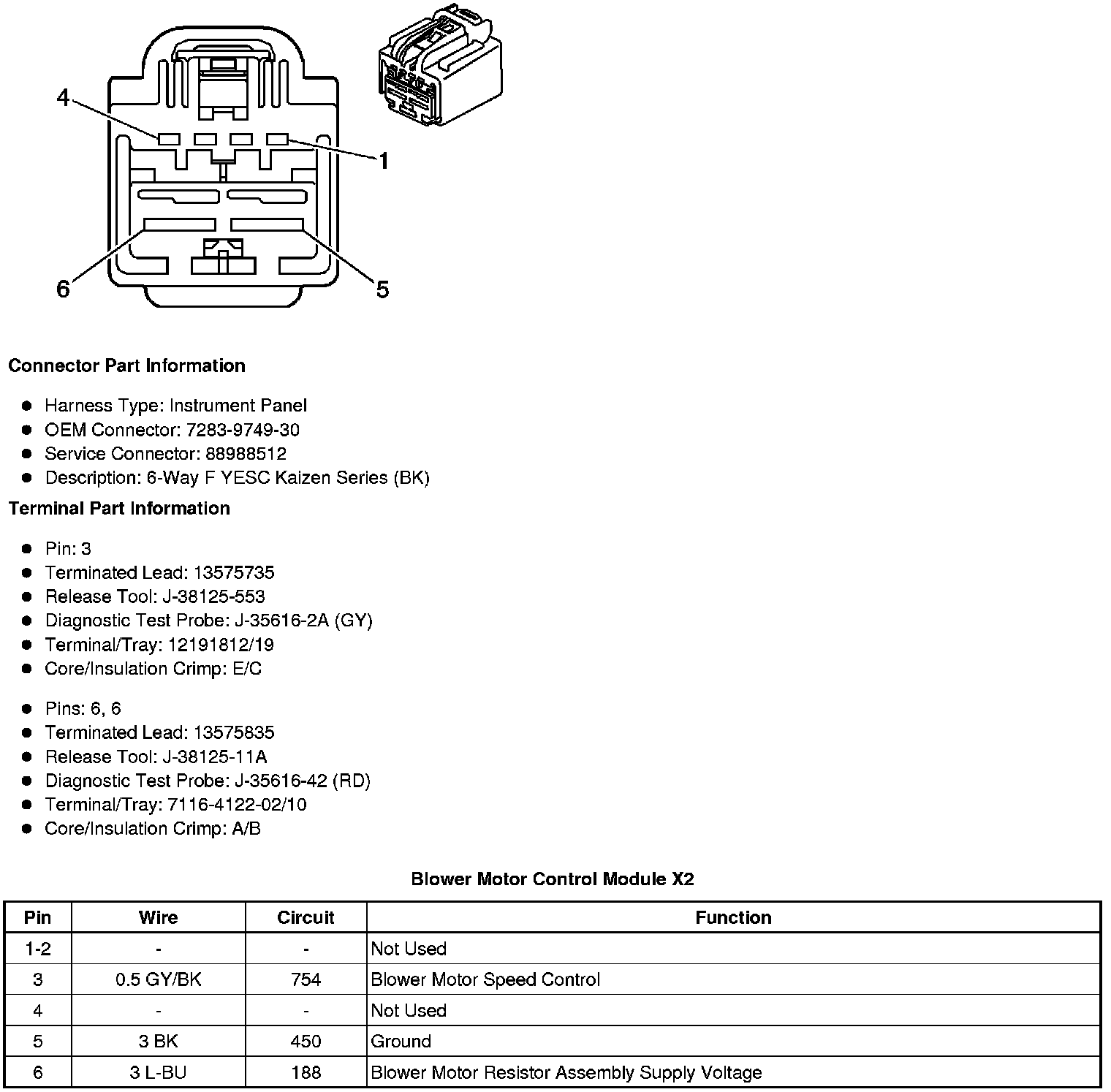

Blower Motor Control Module X2

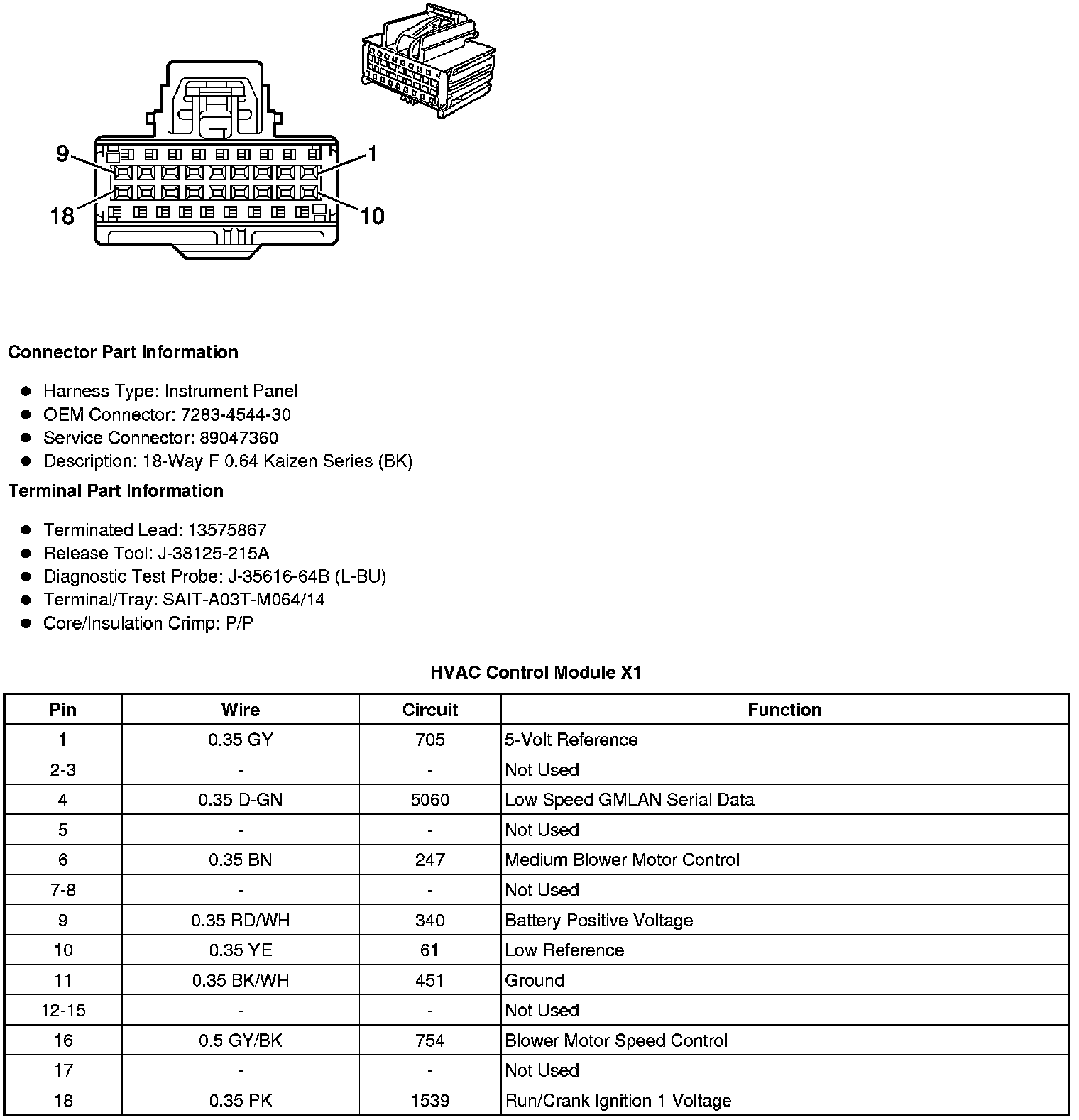

HVAC Control Module X1

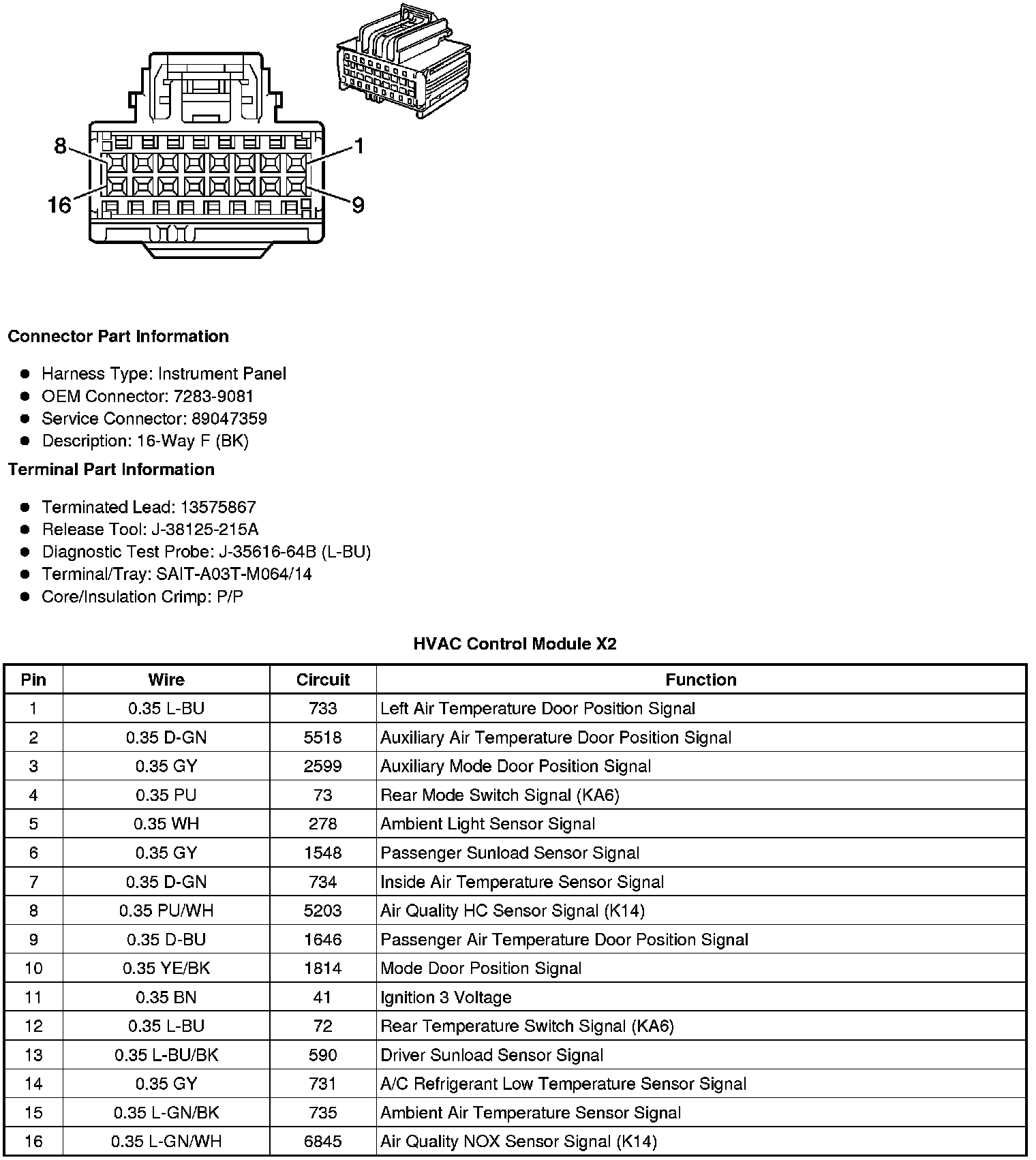

HVAC Control Module X2

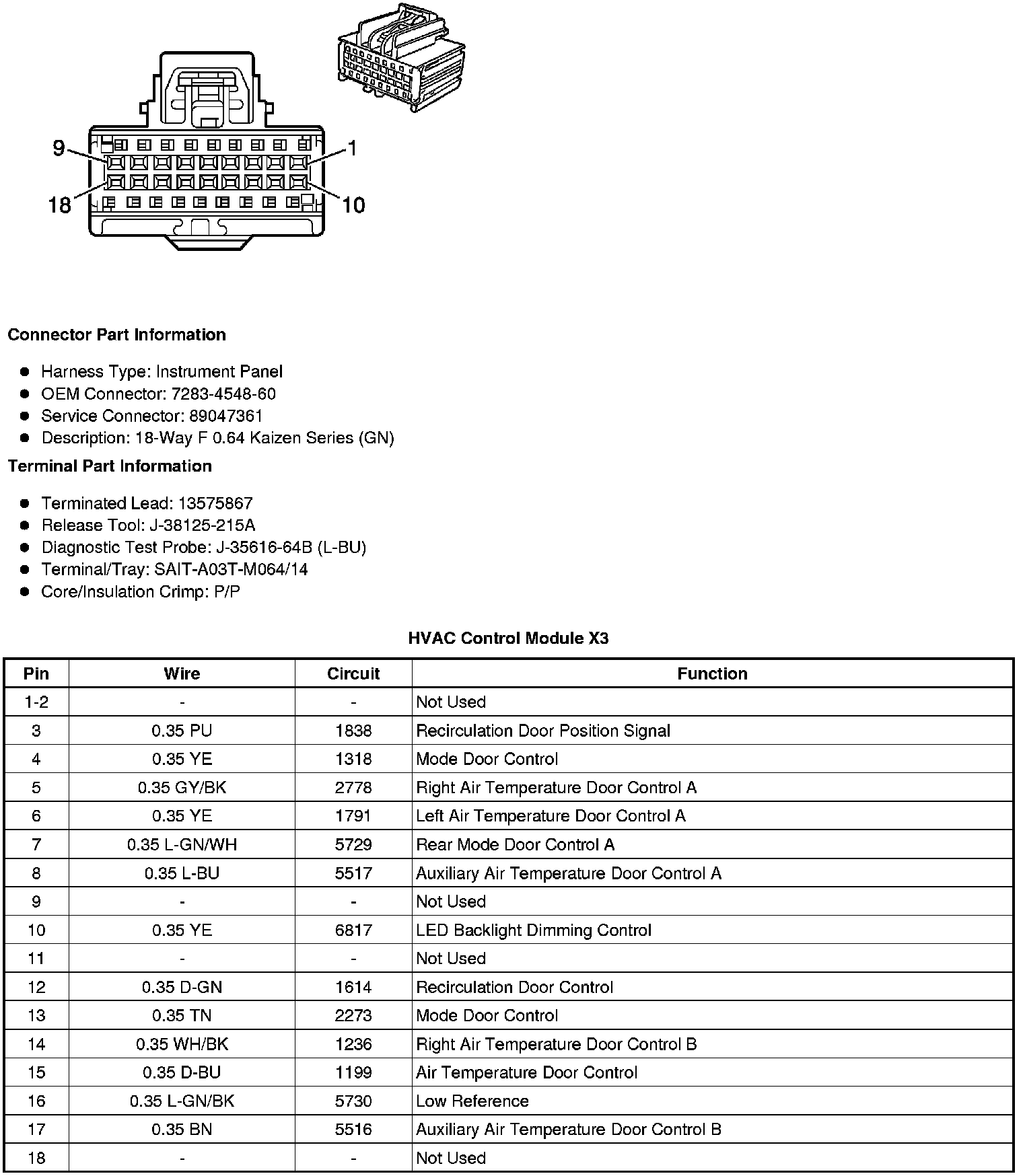

HVAC Control Module X3

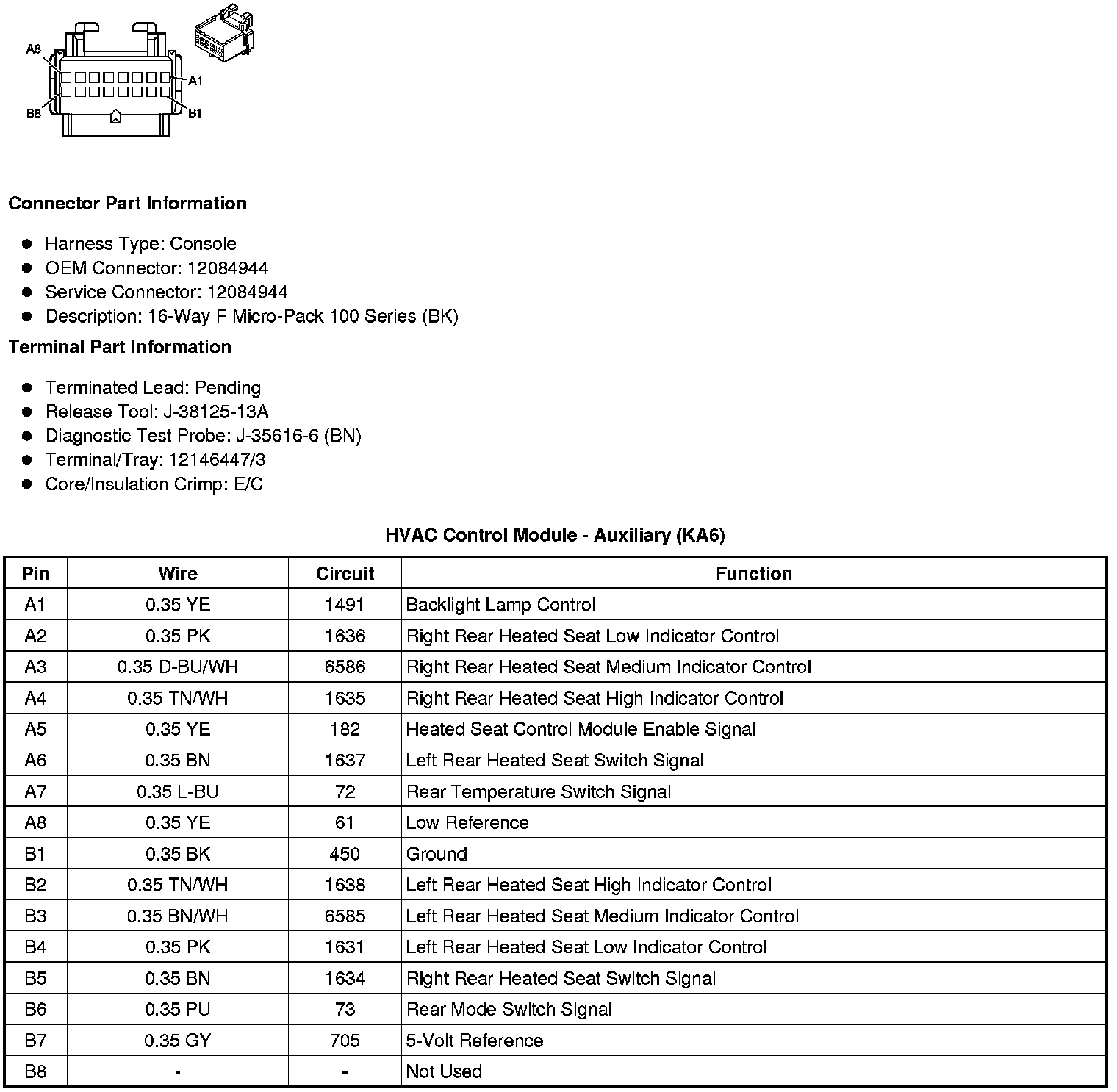

HVAC Control Module - Auxiliary (KA6)
