Keyless Entry Module




Component Connector End Views

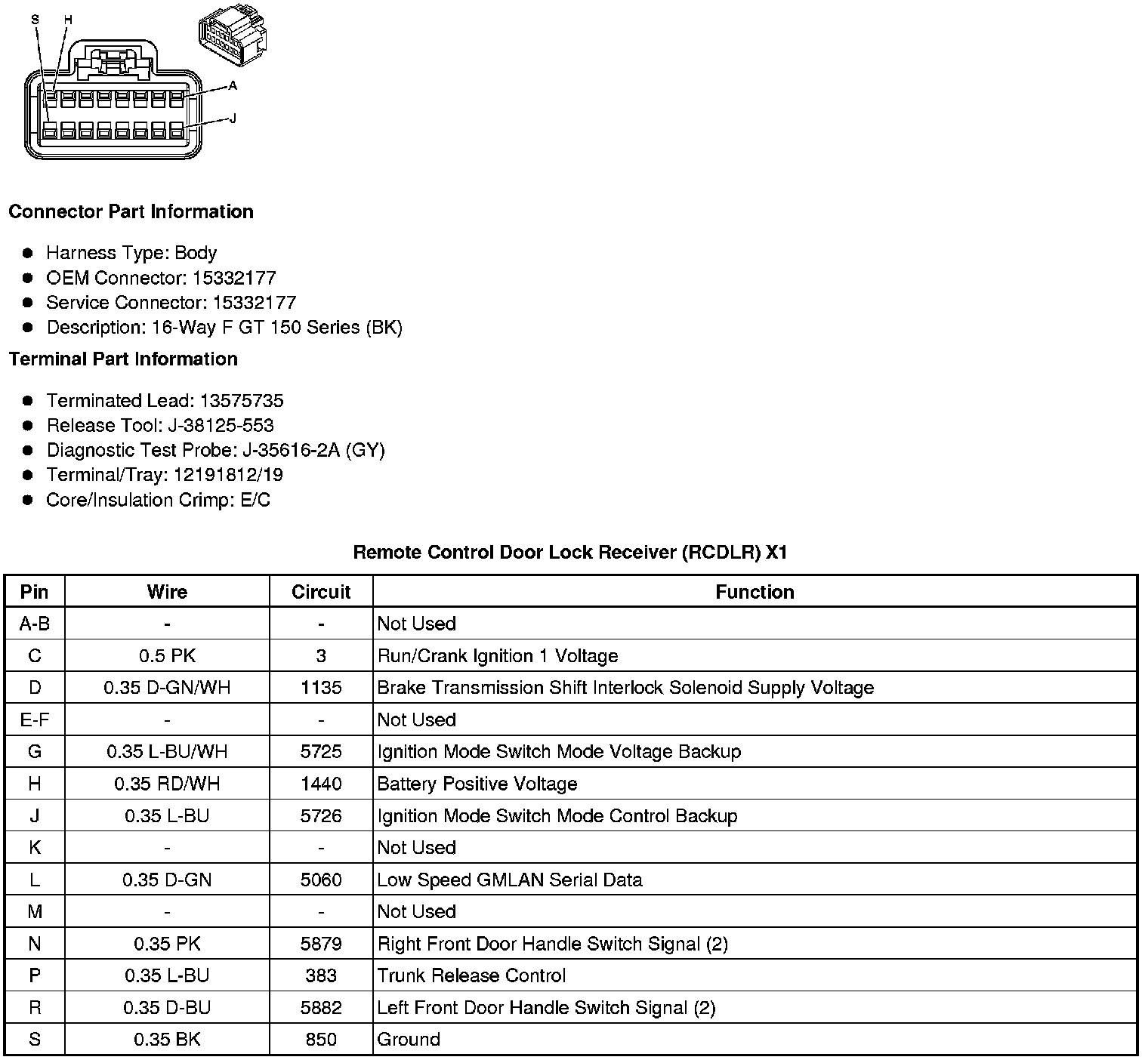

Remote Control Door Lock Receiver (RCDLR) X1

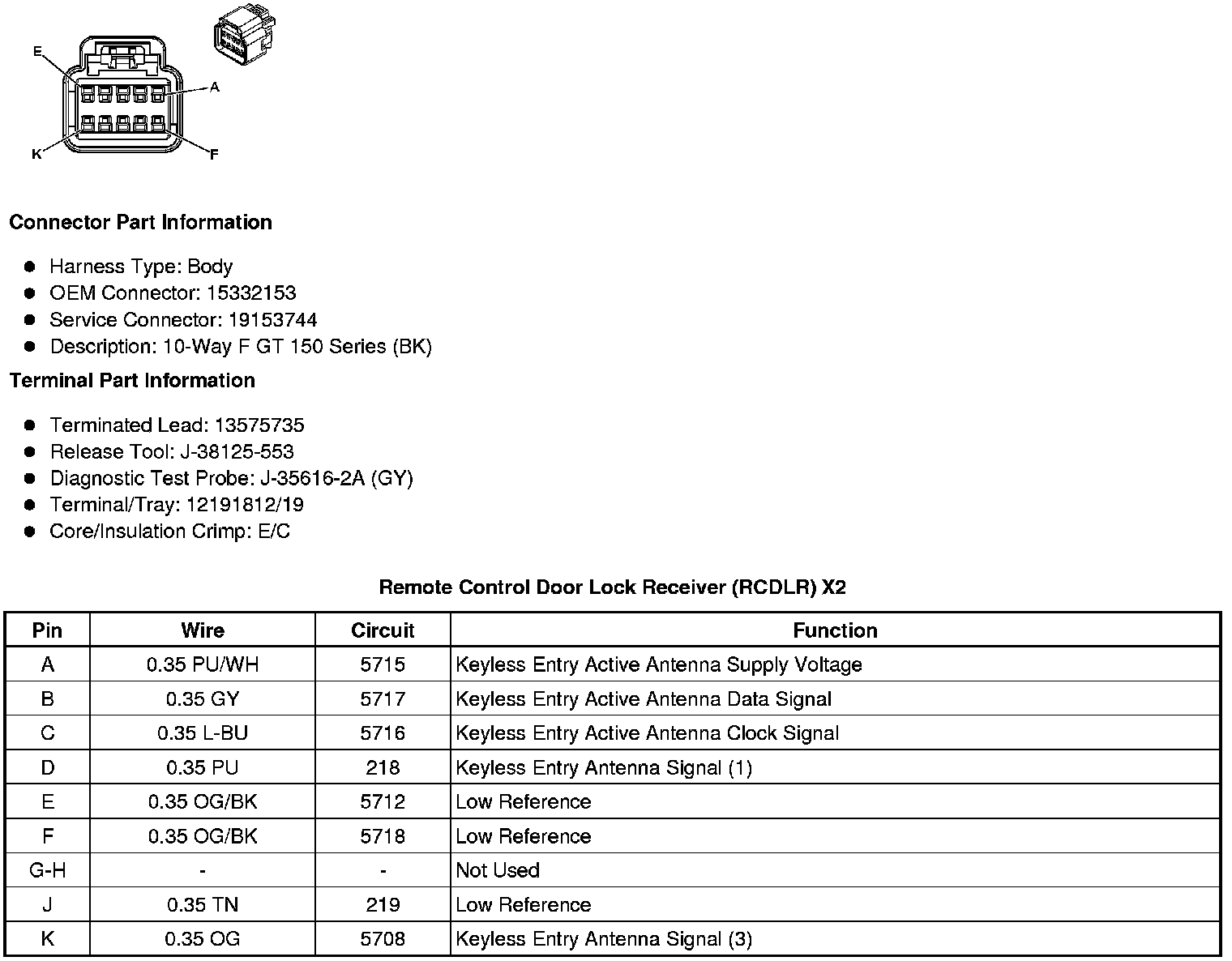

Remote Control Door Lock Receiver (RCDLR) X2

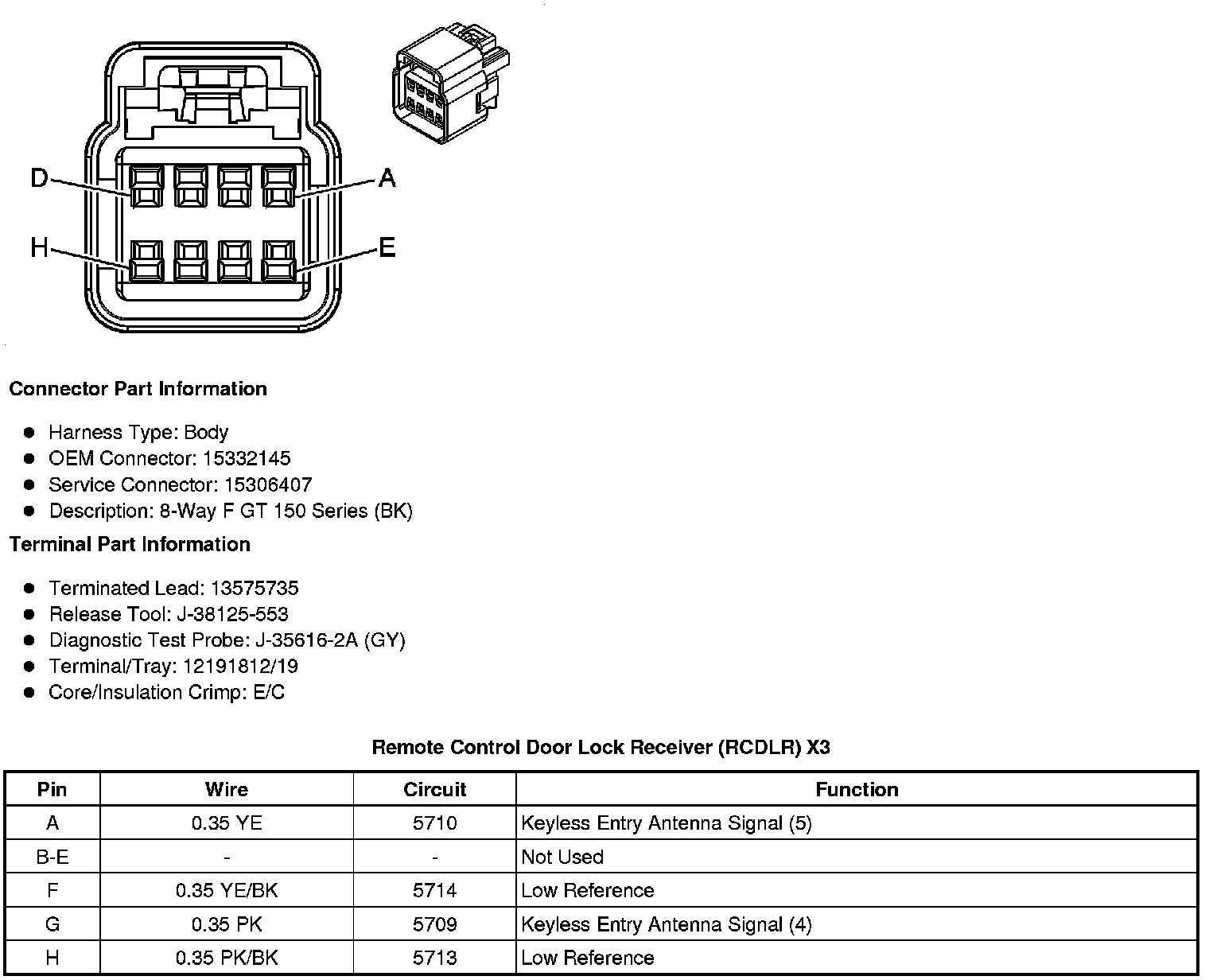

Remote Control Door Lock Receiver (RCDLR) X3
