Navigation System




Component Connector End Views

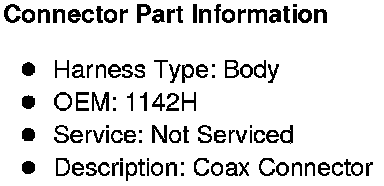

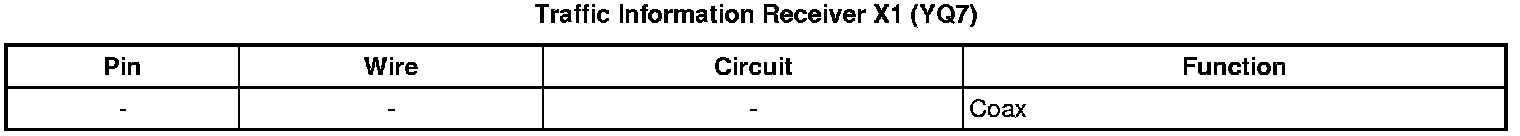

Traffic Information Receiver X1 (YQ7)

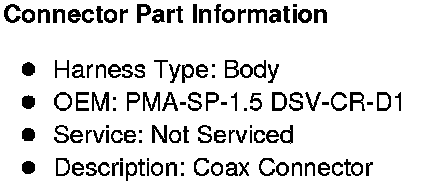

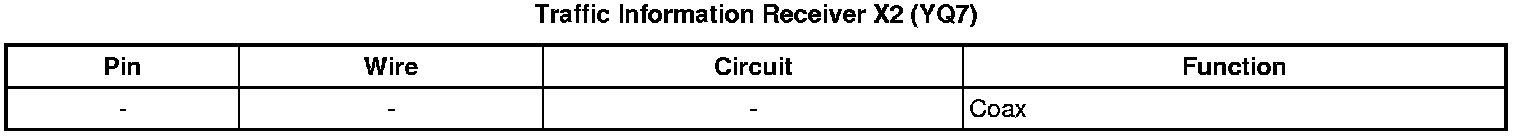

Traffic Information Receiver X2 (YQ7)

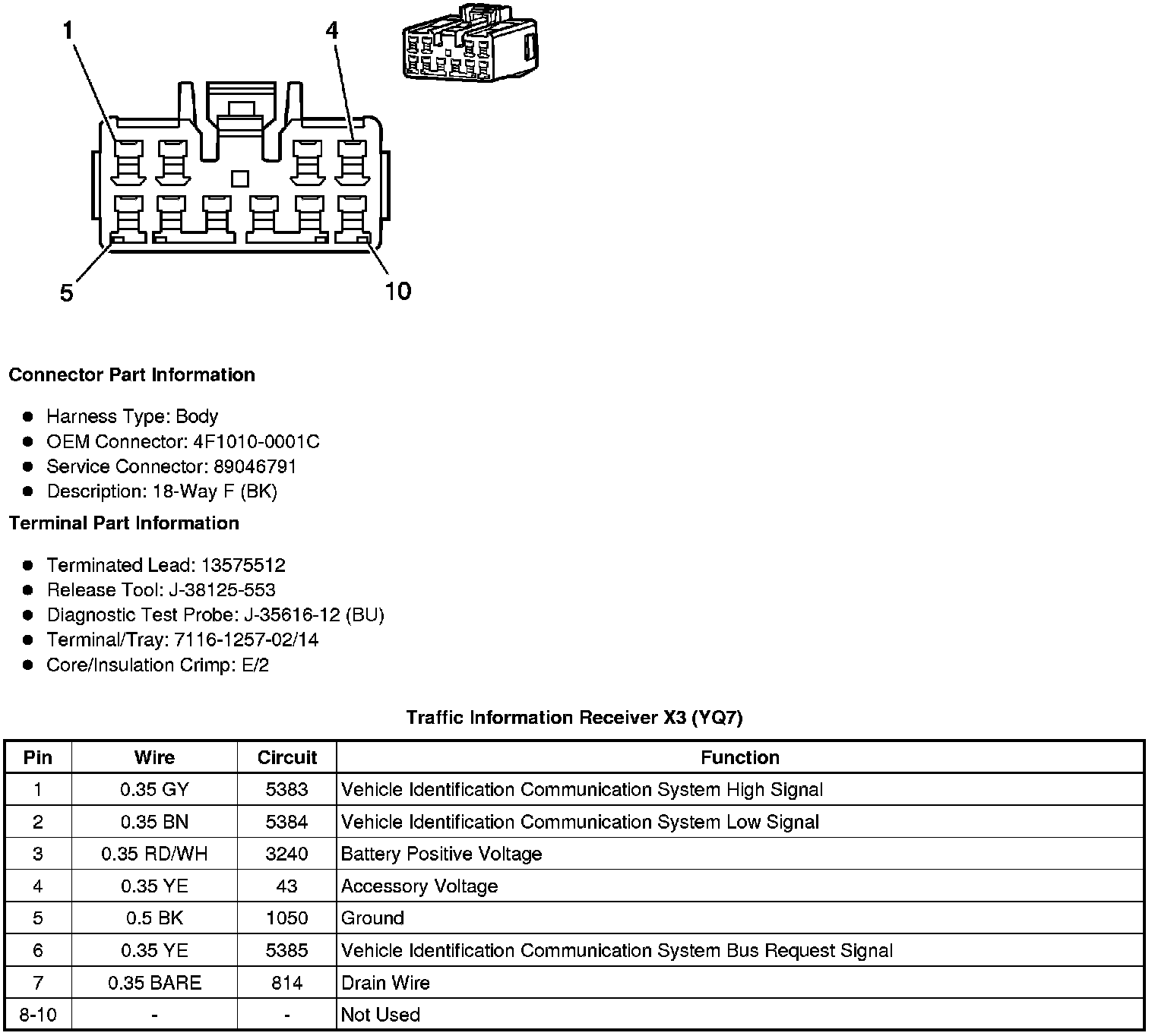

Traffic Information Receiver X3 (YQ7)
