Power Steering Pressure Control Valve




Component Connector End Views

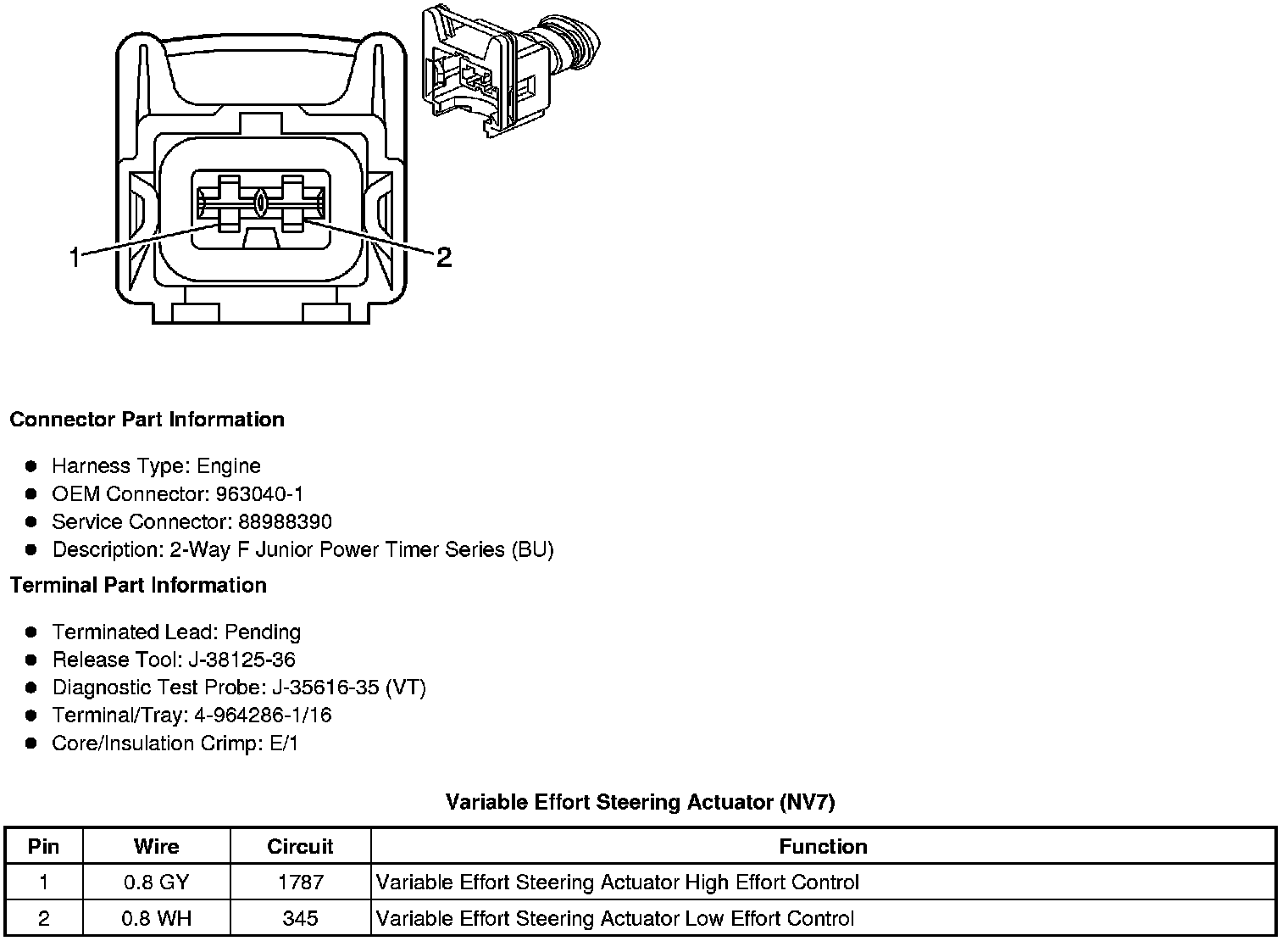

Variable Effort Steering Actuator (NV7)

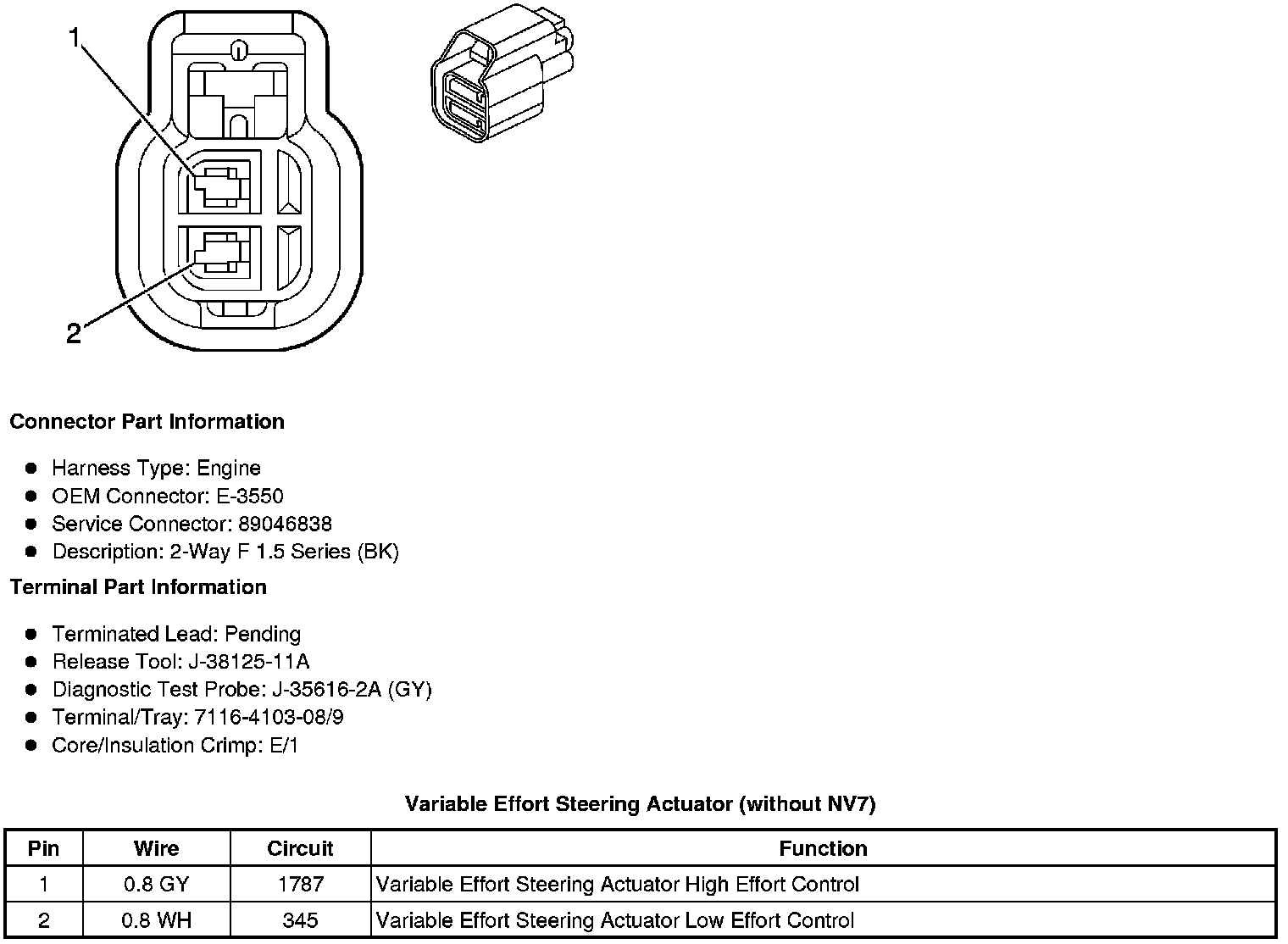

Variable Effort Steering Actuator (without NV7)
