Suspension Control Module

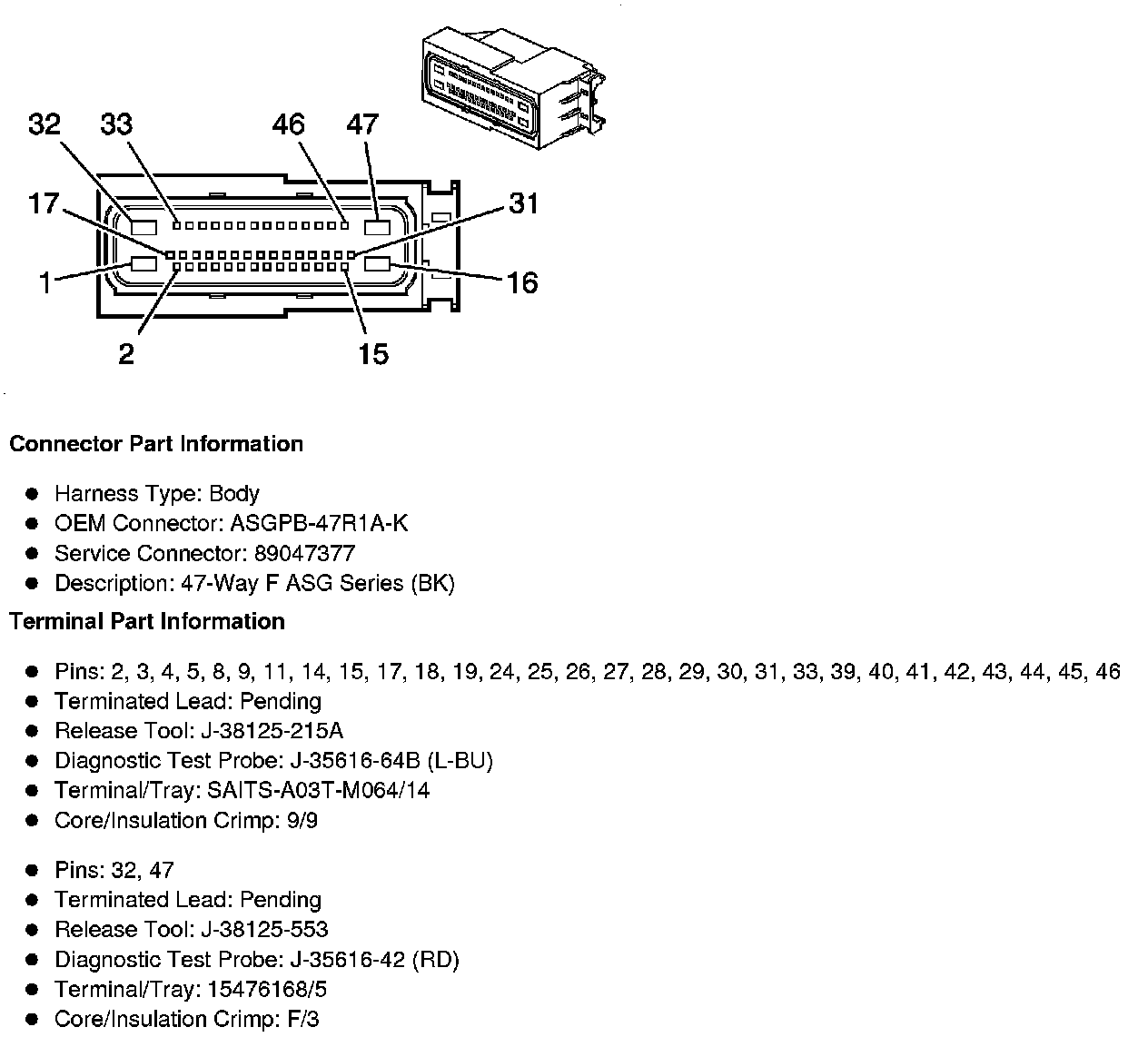

Component Connector End Views

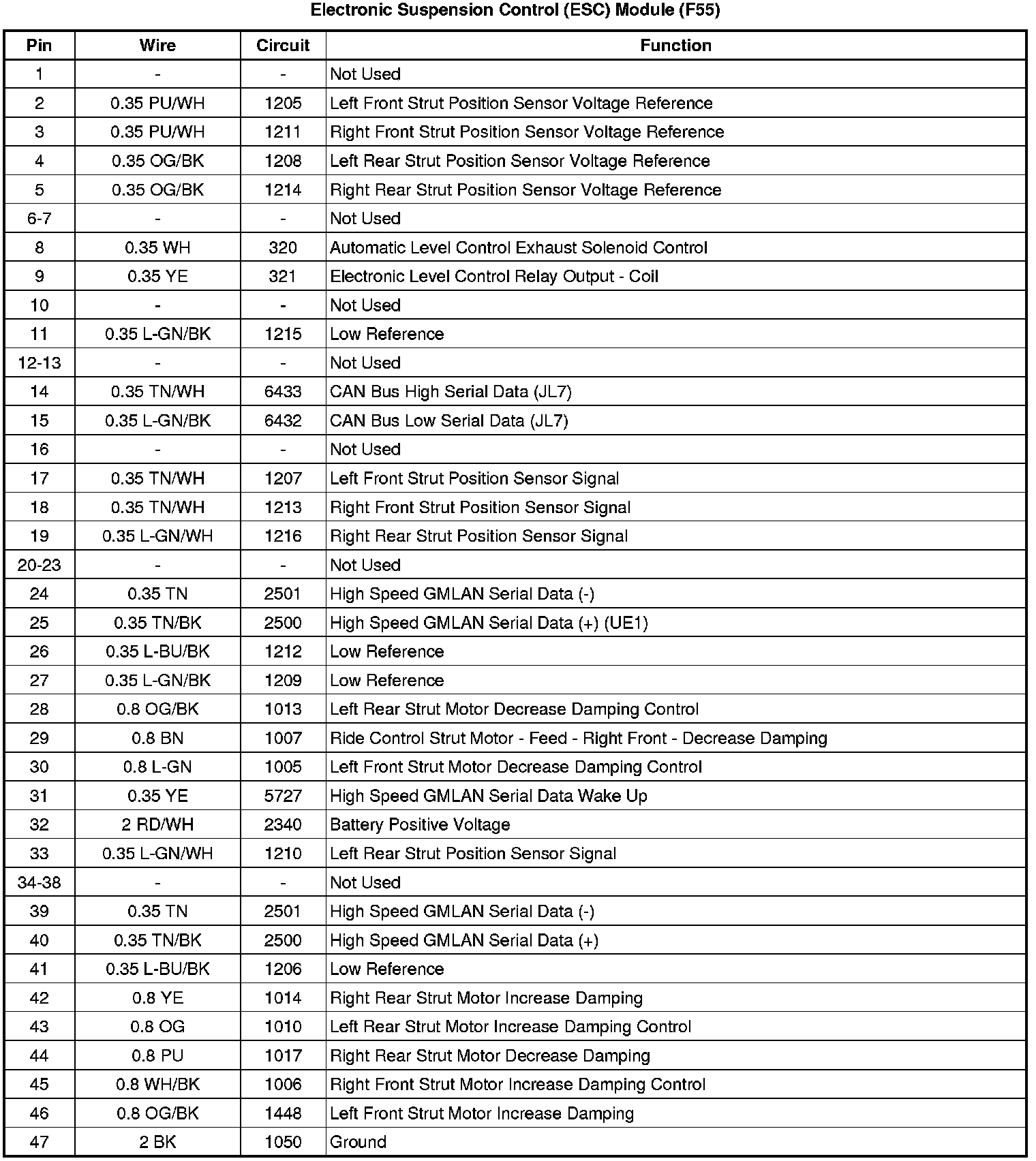

Electronic Suspension Control (ESC) Module (F55)
