Telescoping Wheel Position Sensor

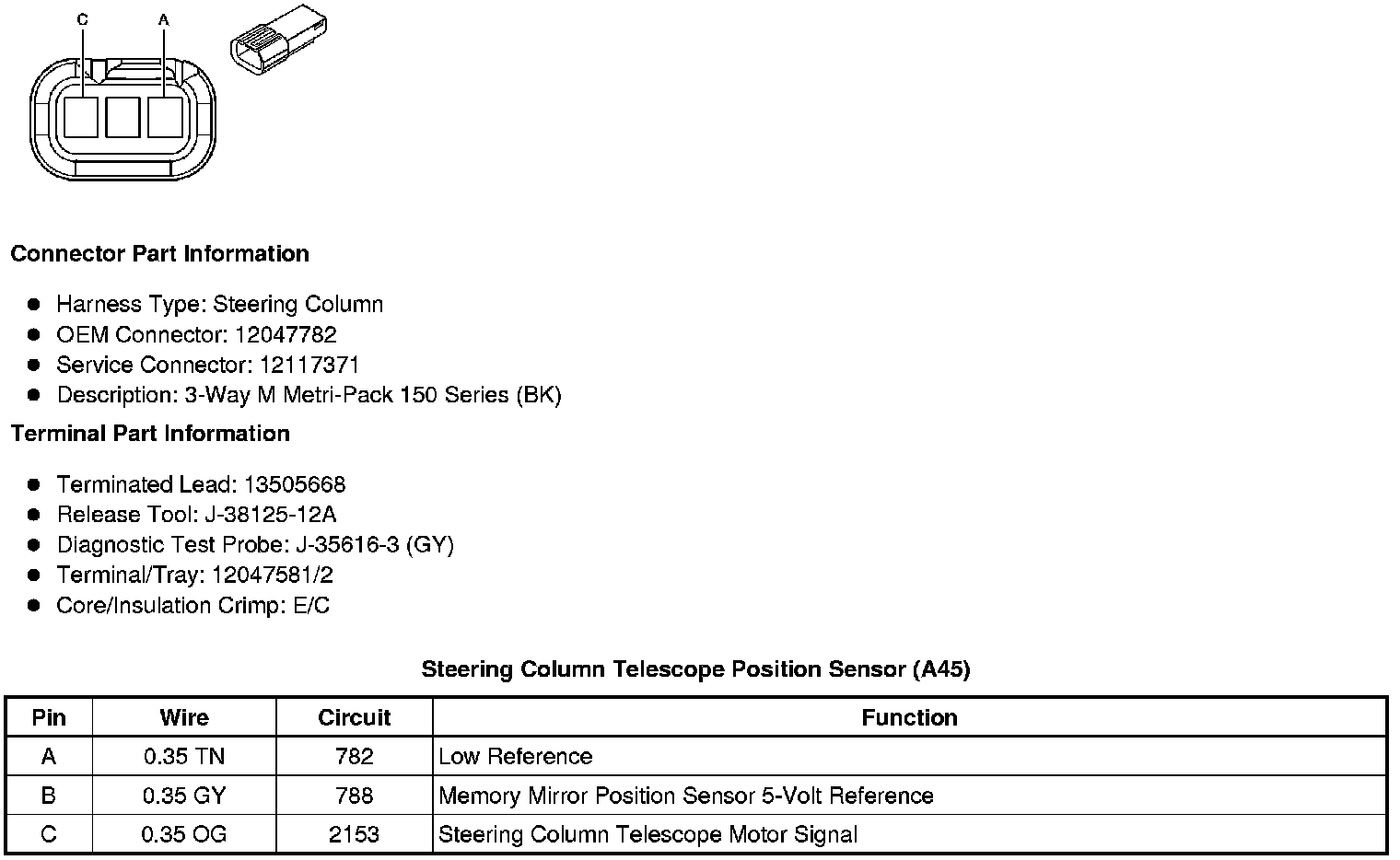

Component Connector End Views
Steering Column Telescope Position Sensor (A45)
