Traction Control Module




Component Connector End Views

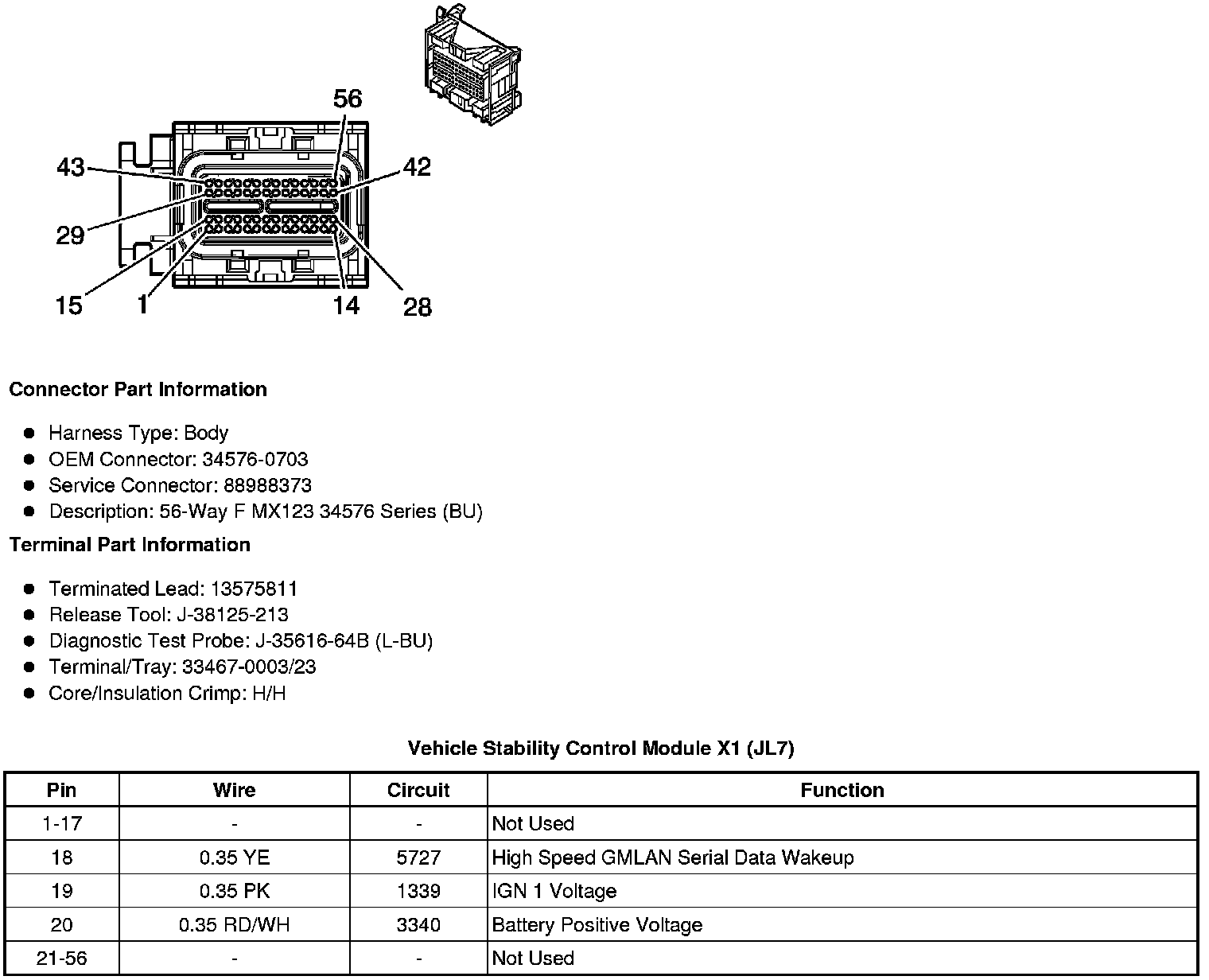

Vehicle Stability Control Module X1 (JL7)

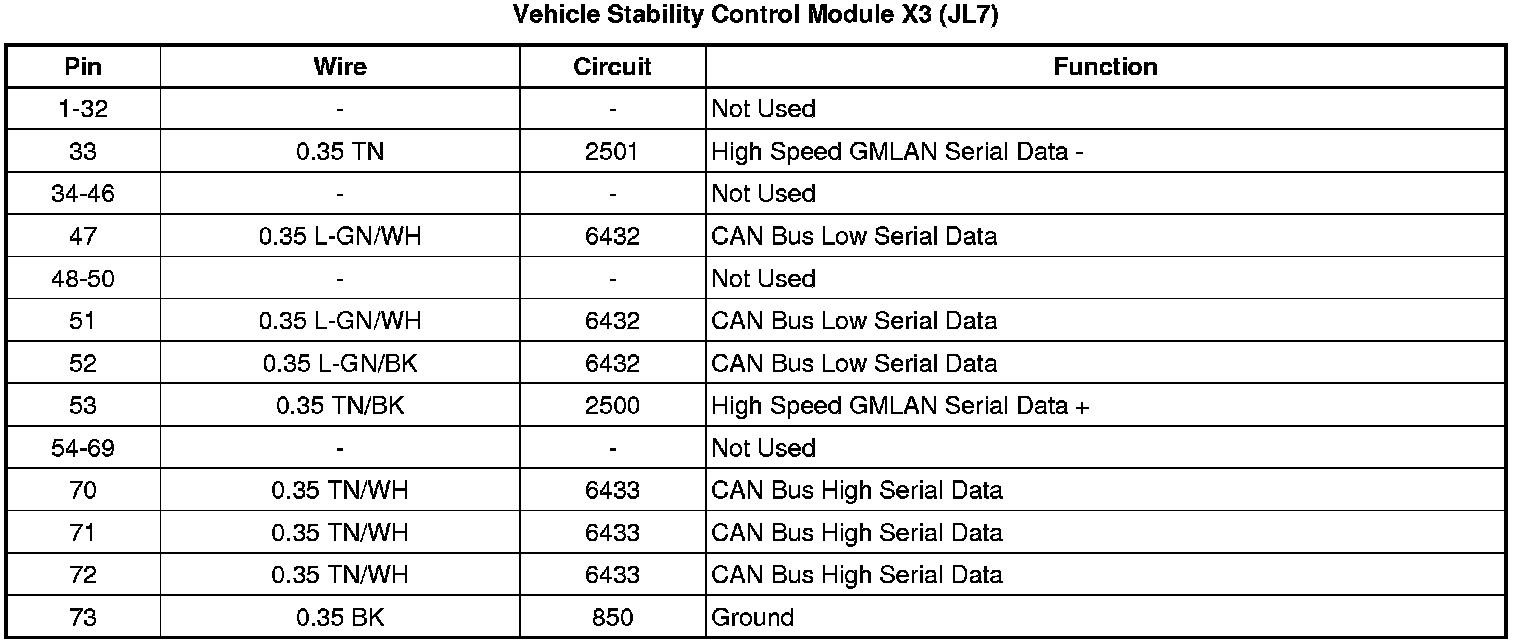

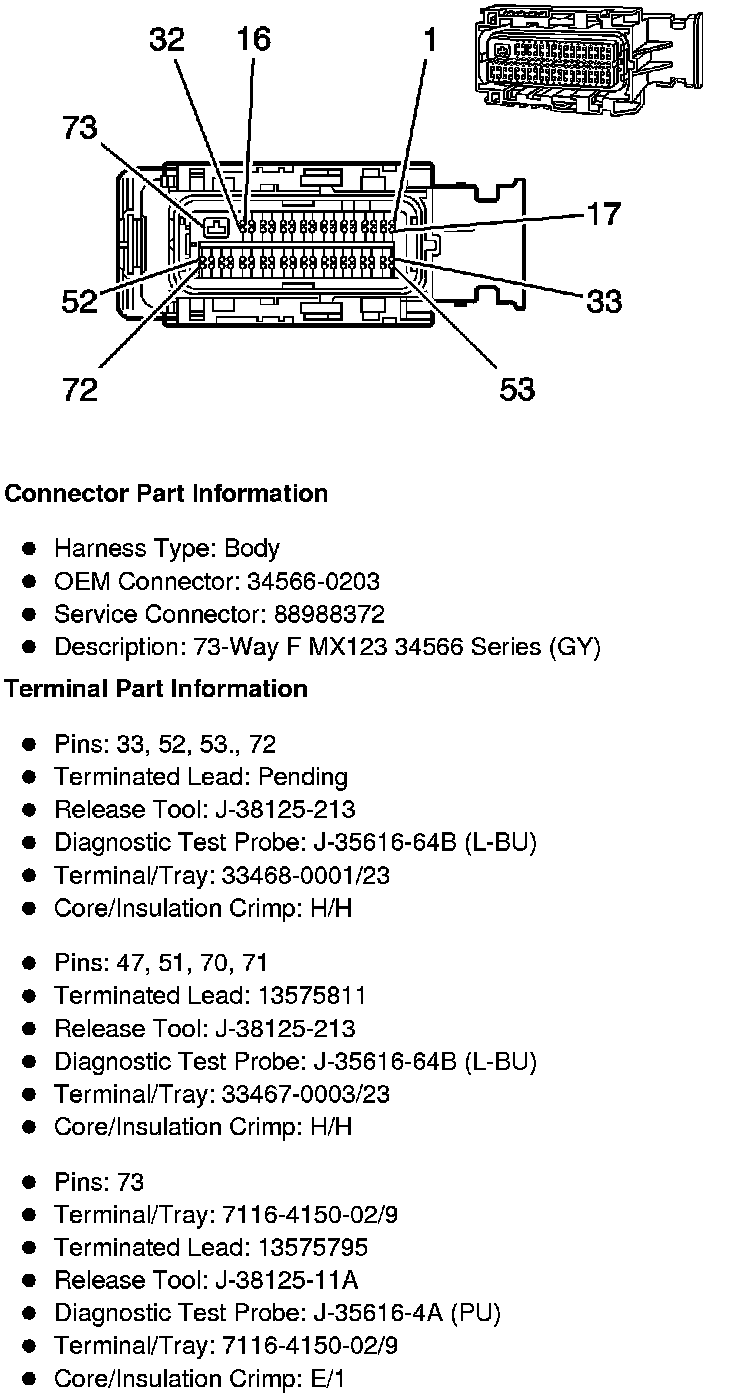

Vehicle Stability Control Module X3 (JL7)
