Door Control Module Schematics
Door Control Module Schematics

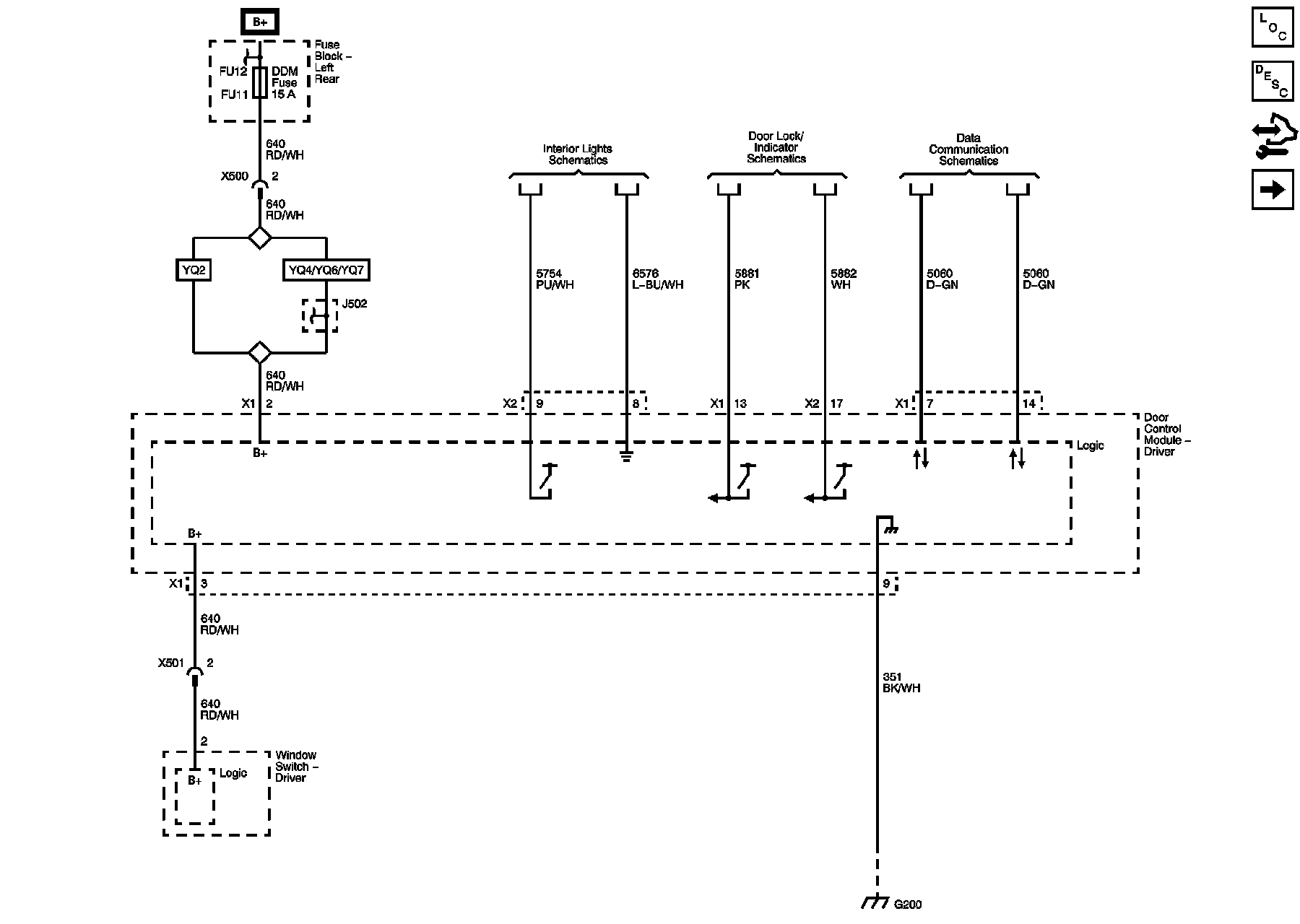

Door Control Module - Driver Power, Ground and DLC

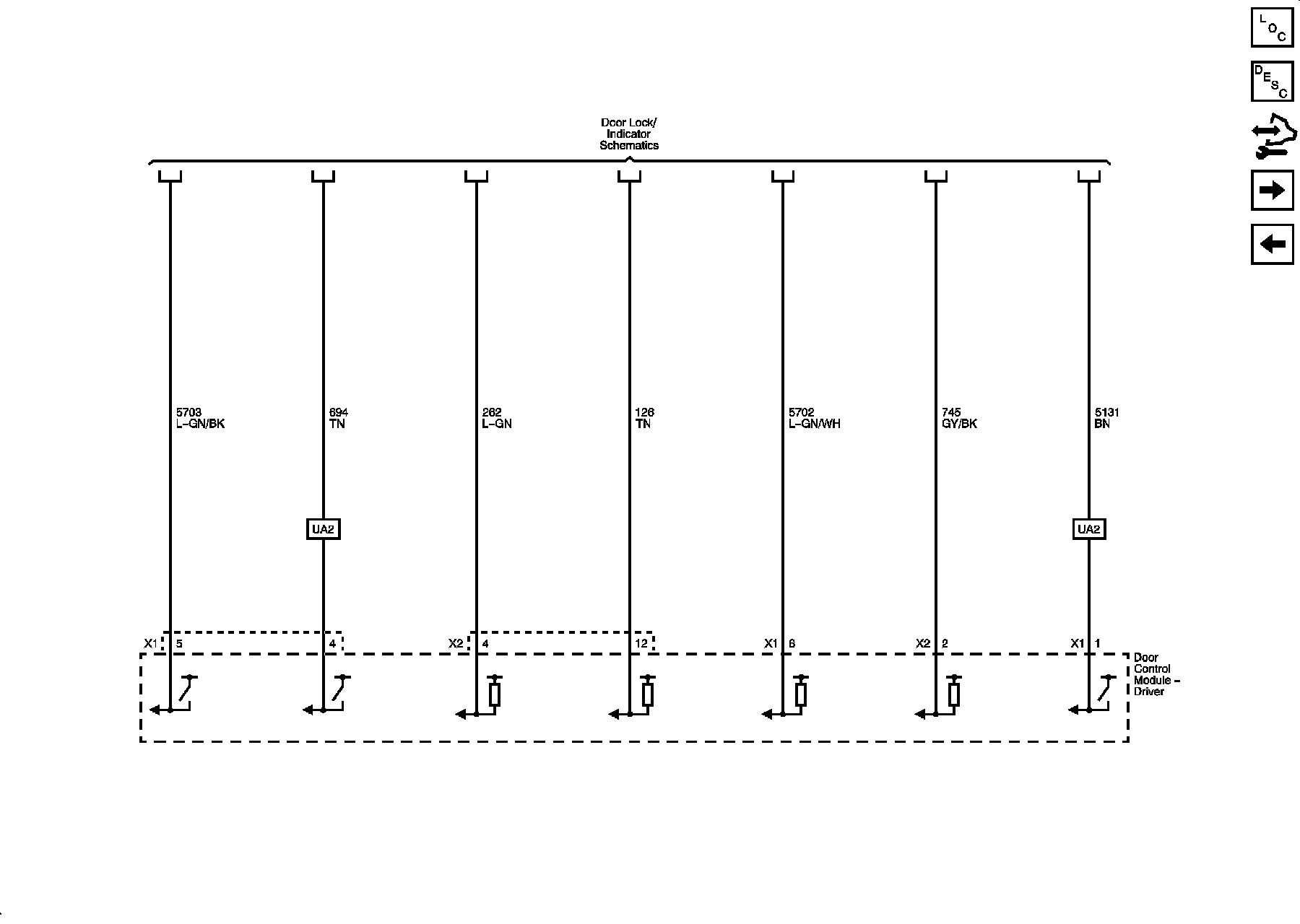

Door Control Module - Driver Signals/Controls (1 of 2)

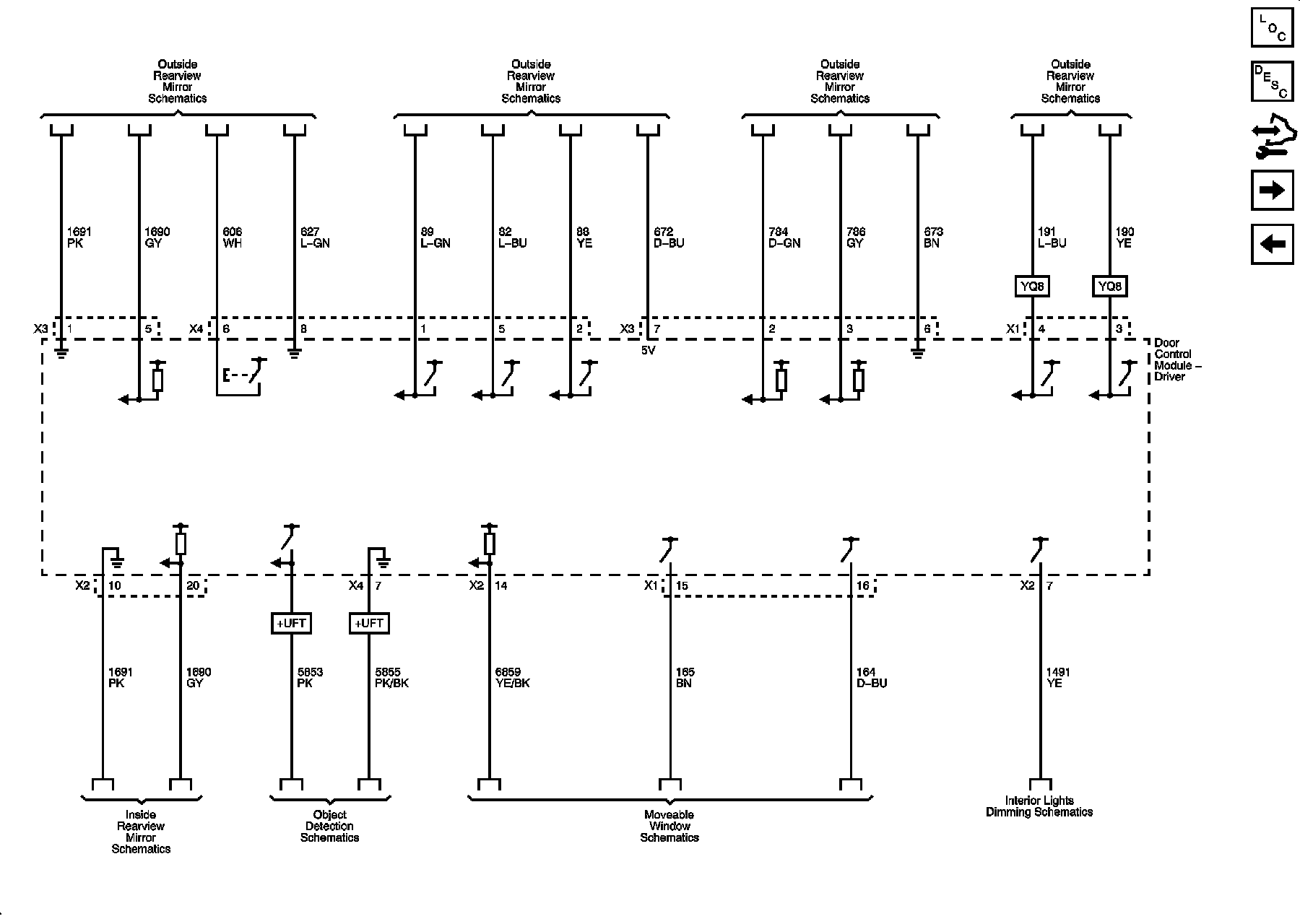

Door Control Module - Driver Signals/Controls (2 of 2)

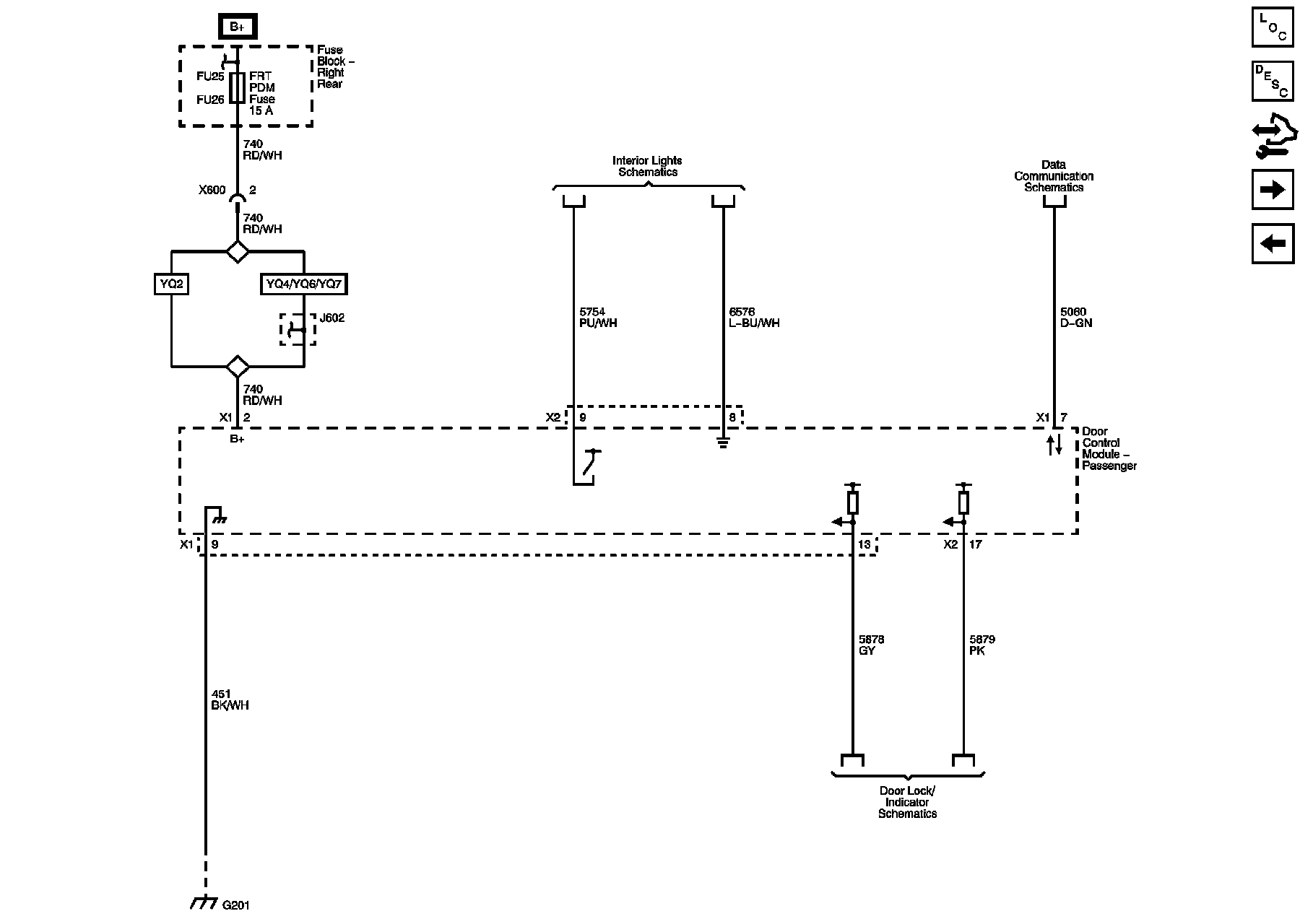

Door Control Module - Passenger Power, Ground and DLC

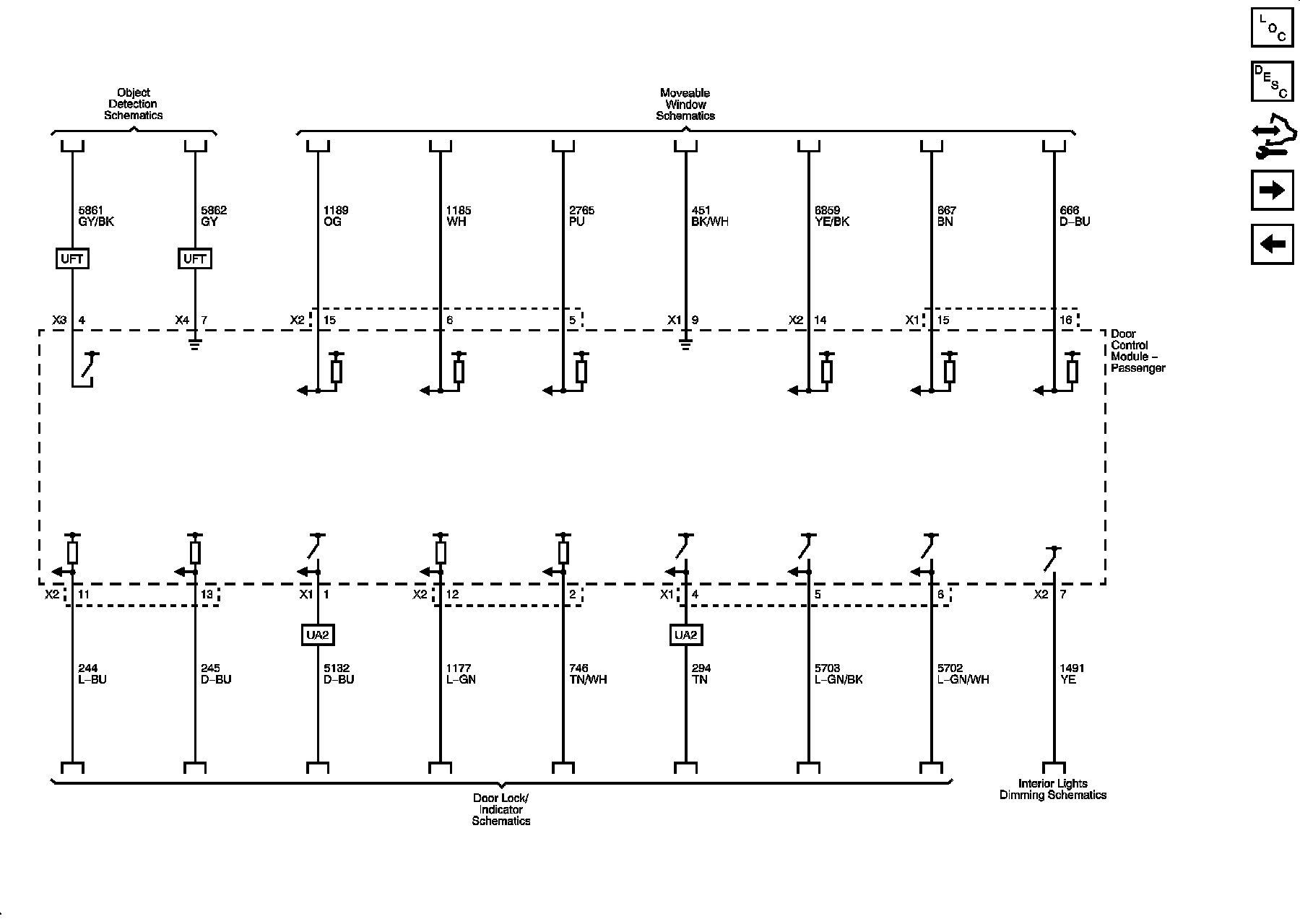

Door Control Module - Passenger Signals/Controls (1 of 2)

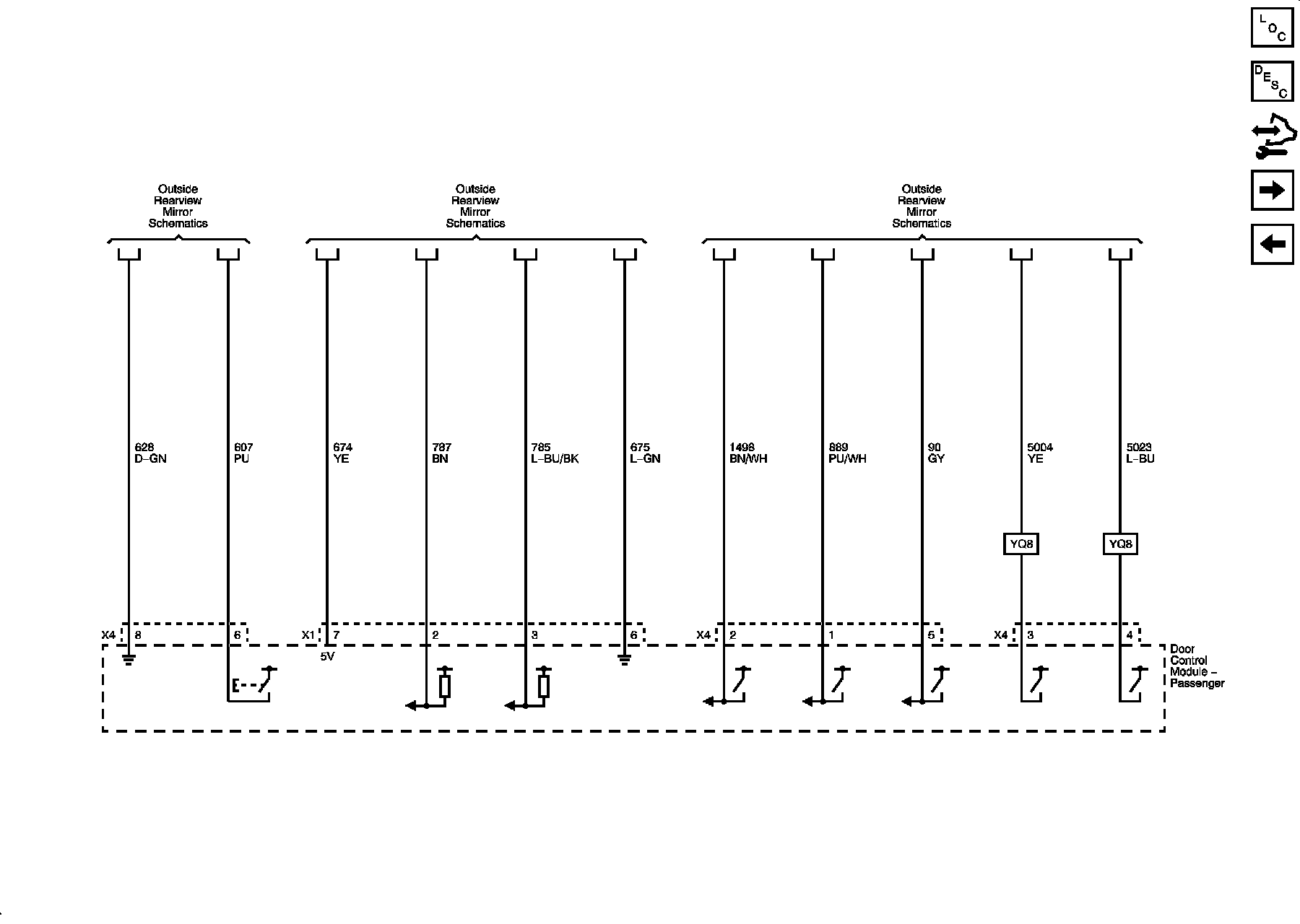

Door Control Module - Passenger Signals/Controls (2 of 2)

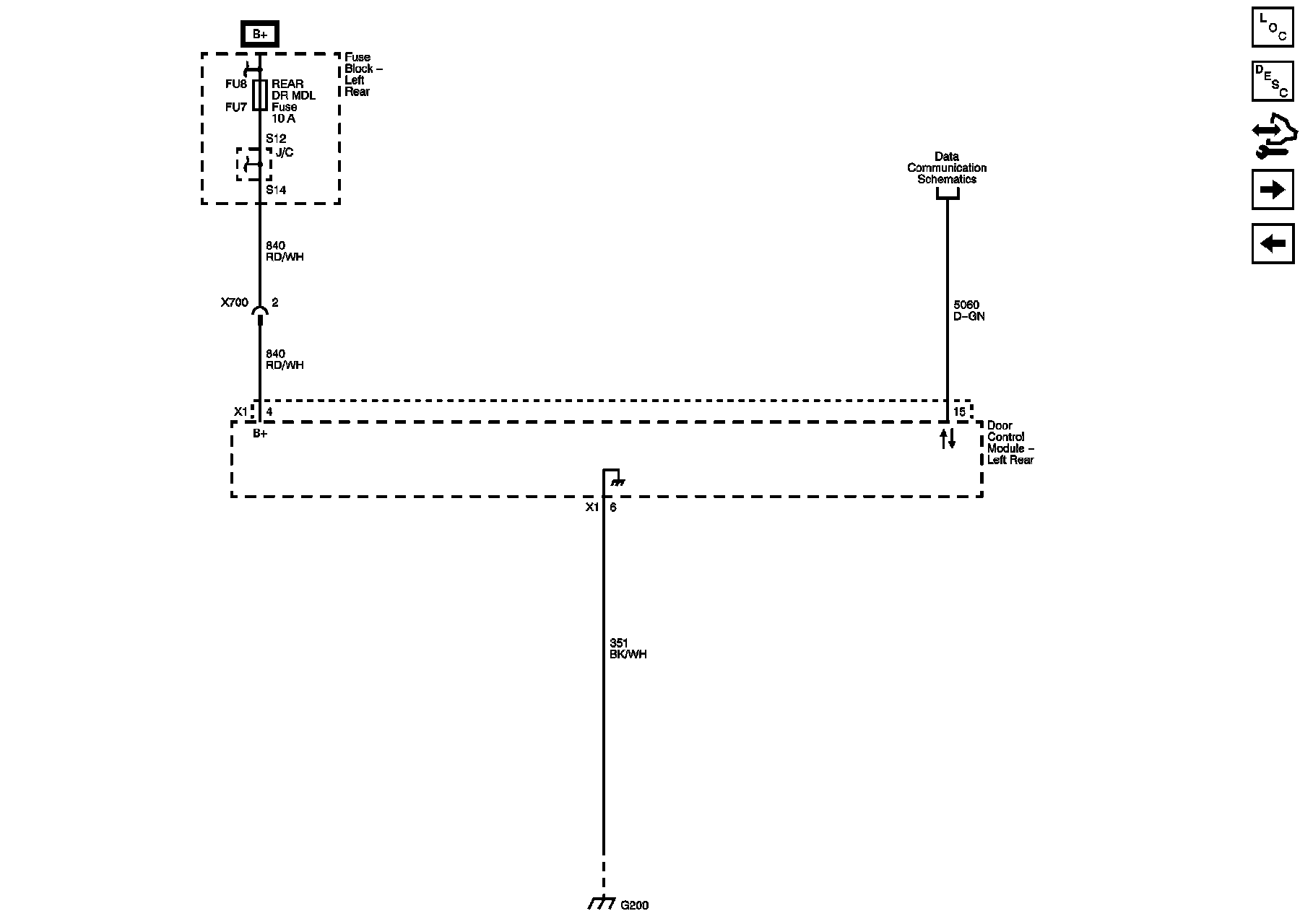

Door Control Module - Left Rear Power, Ground and DLC
Door Control Module - Left Rear Signals/Controls

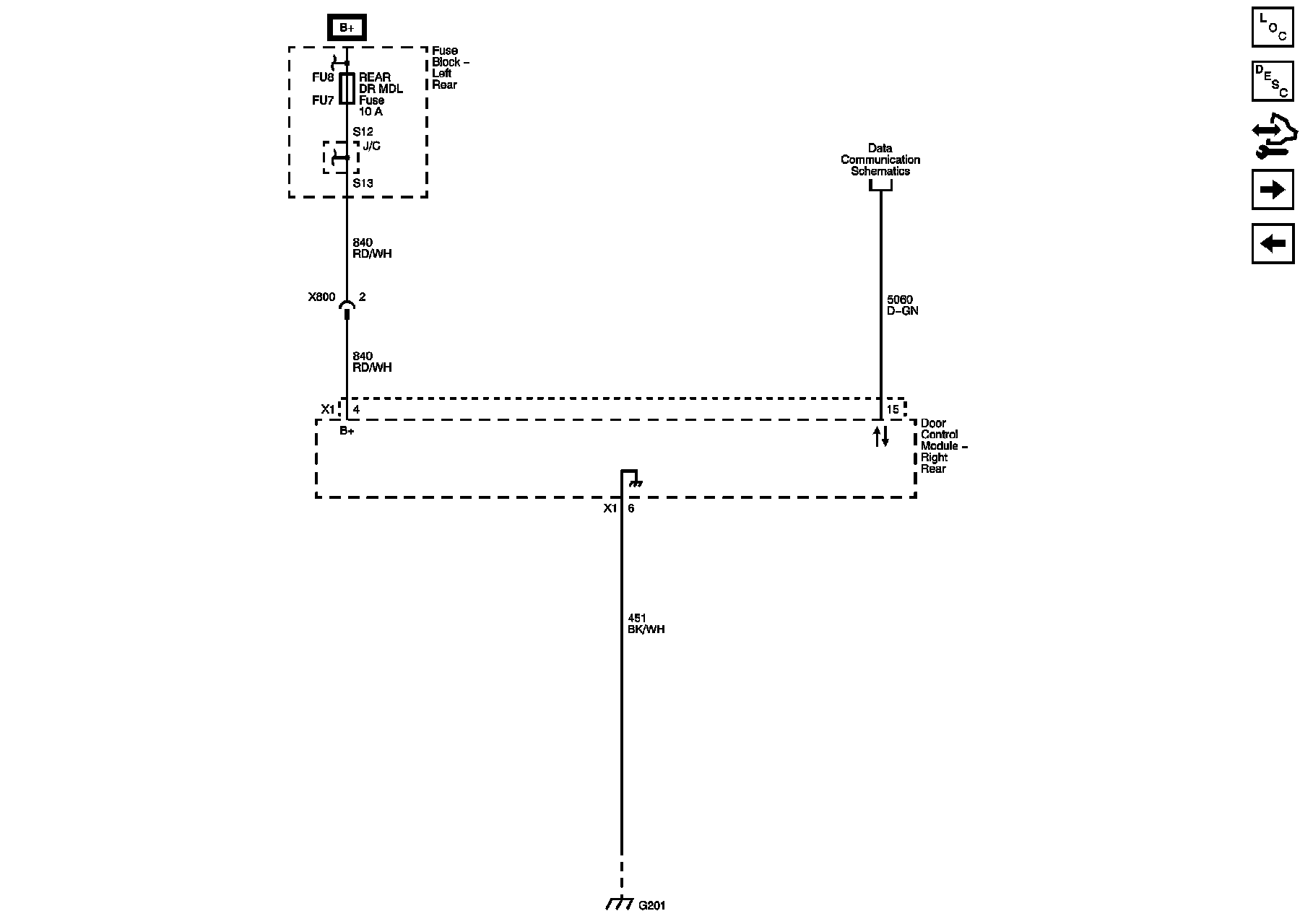

Door Control Module - Right Rear Power, Ground and DLC

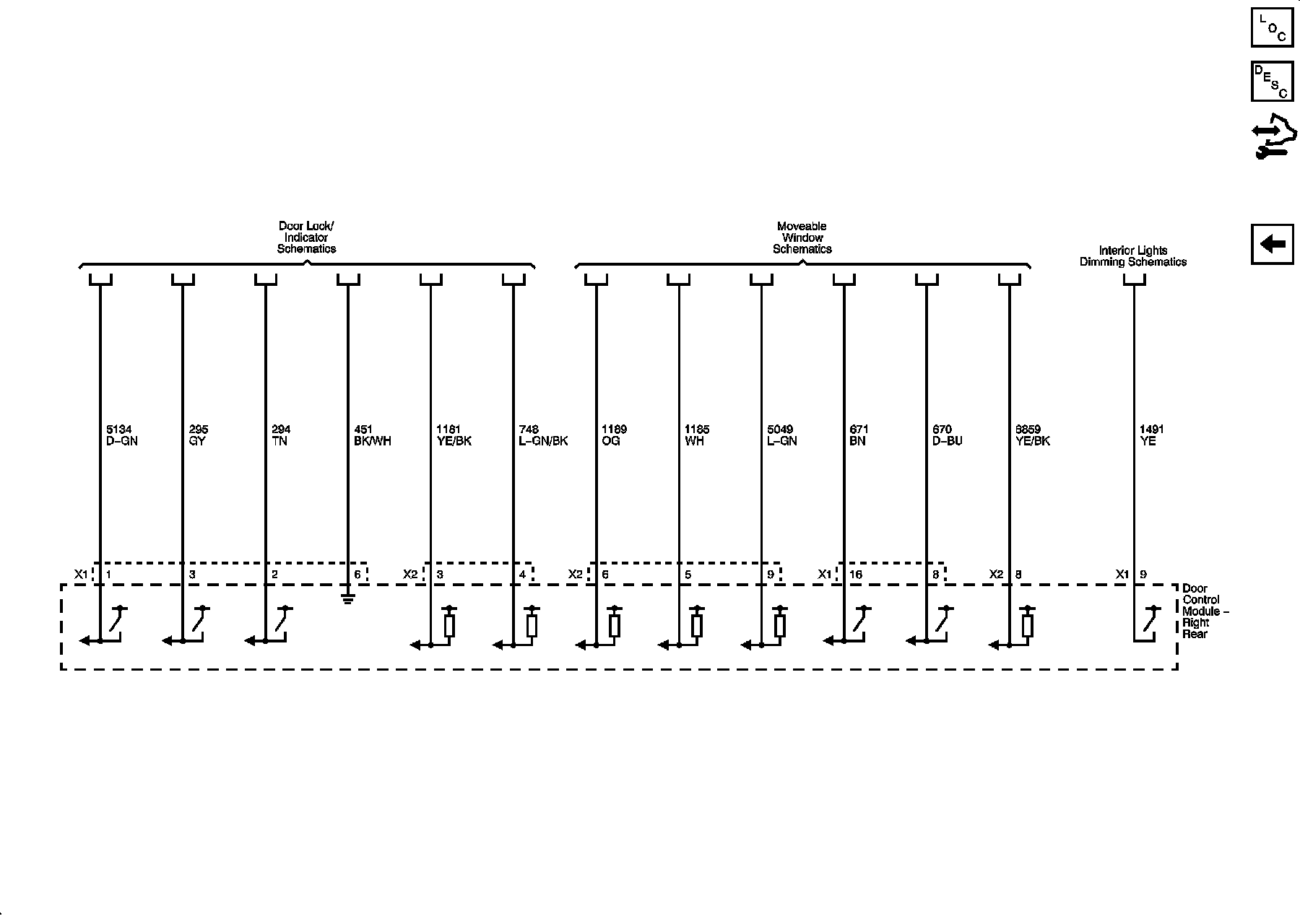

Door Control Module - Right Rear Signals/Controls
