HVAC Control Module Replacement

HVAC Control Module Replacement

Removal Procedure

1. Remove the ashtray. Refer to Ashtray Replacement (Ashtray Replacement).




2. Remove the radio. Refer to Radio Replacement (Radio Replacement).

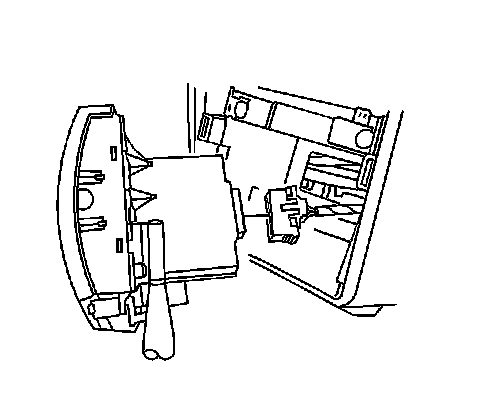

3. Remove the HVAC control module retaining screws.
4. Disconnect the HVAC control module electrical connectors.
5. Remove the HVAC control module.

Installation Procedure

1. Install the HVAC control module.




2. Connect the HVAC control module electrical connectors.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the HVAC control module retaining screws and tighten to 2 Nm (18 lb in).
4. Install the radio. Refer to Radio Replacement (Radio Replacement).
5. Install the ashtray. Refer to Ashtray Replacement (Ashtray Replacement).
6. Refer to Control Module References (Programming and Relearning) for programming and setup information.
