Rear Integration Body Control Module Replacement

Rear Integration Body Control Module Replacement

Removal Procedure

1. Remove the rear upper compartment trim. Refer to Rear Compartment Trim Panel Replacement (Rear Compartment Trim Panel Replacement).

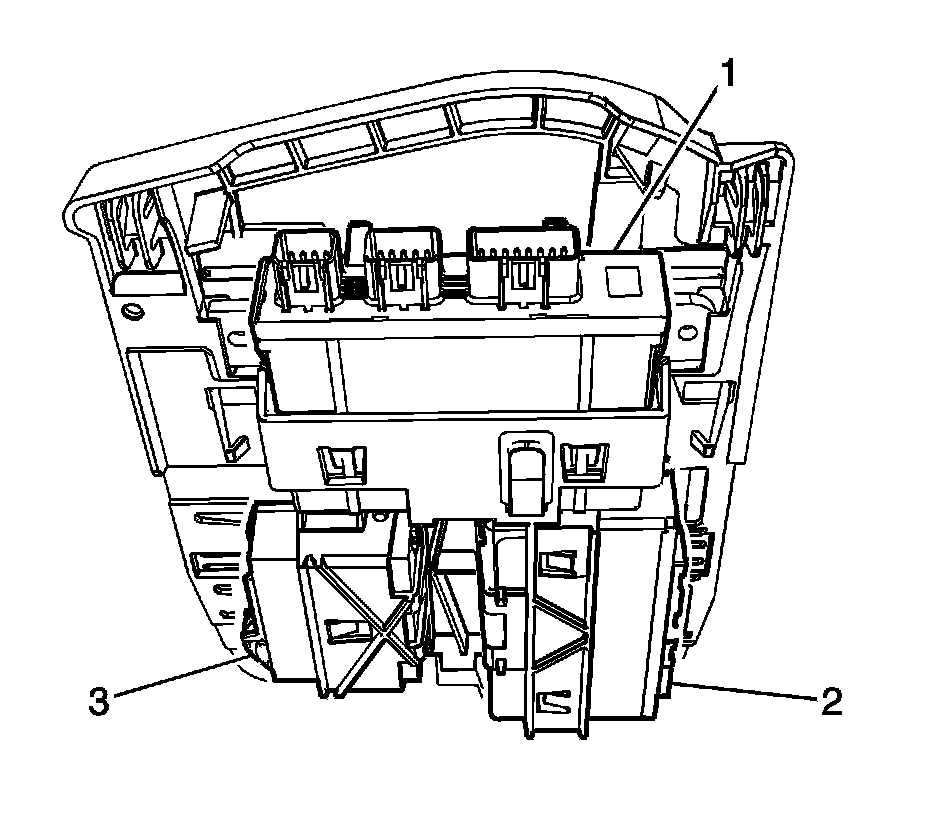

2. Release the tabs securing the rear integration module (2) to the module bracket.
3. Disconnect the electrical connectors.

Installation Procedure




1. Connect the electrical connectors.
2. Install the module (2) to the bracket.
3. Install the rear upper compartment trim. Refer to Rear Compartment Trim Panel Replacement (Rear Compartment Trim Panel Replacement).
4. Reprogram the module. Refer to Control Module References (Programming and Relearning).
