Engine Control Module: Locations

Front of Vehicle/Engine Compartment Component Views

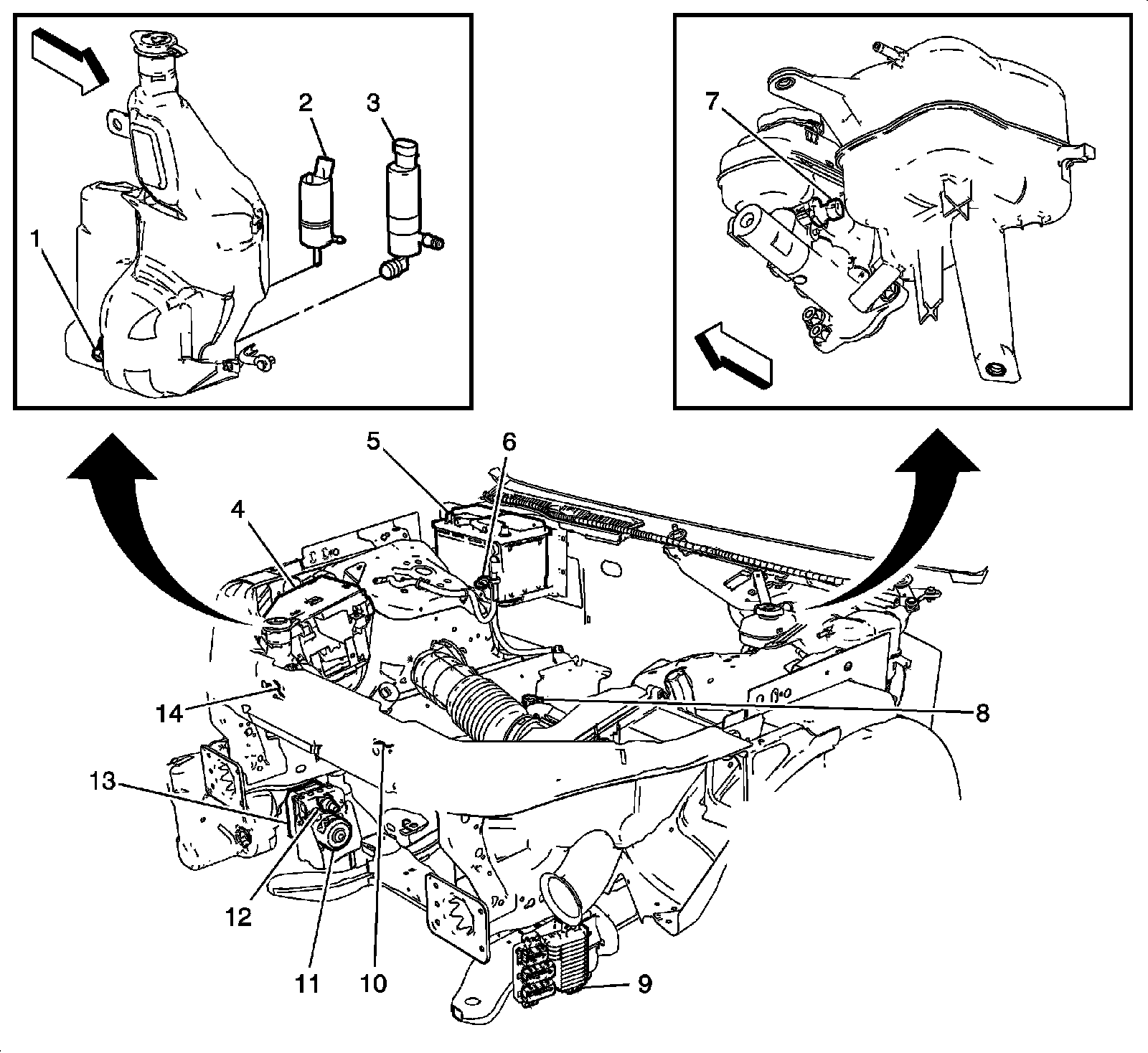

Front Engine Compartment Components 1 of 2




1 - Windshield Washer Fluid Level Switch
2 - Headlamp Washer Fluid Pump (CE4)
3 - Windshield Washer Fluid Pump
4 - Fuse Block-Underhood
5 - Battery
6 - Battery Current Sensor
7 - Brake Fluid Level Switch
8 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
9 - Engine Control Module (ECM) (LH2)
10 - Inflatable Restraint Front End Sensor - Left
11 - Electronic Brake Control Module (EBCM)
12 - Brake Fluid Pressure Sensor (w/o JL7)
13 - Brake Pressure Modulator Valve (BPMV)
14 - Inflatable Restraint Front End Sensor - Right
