Installation Procedure

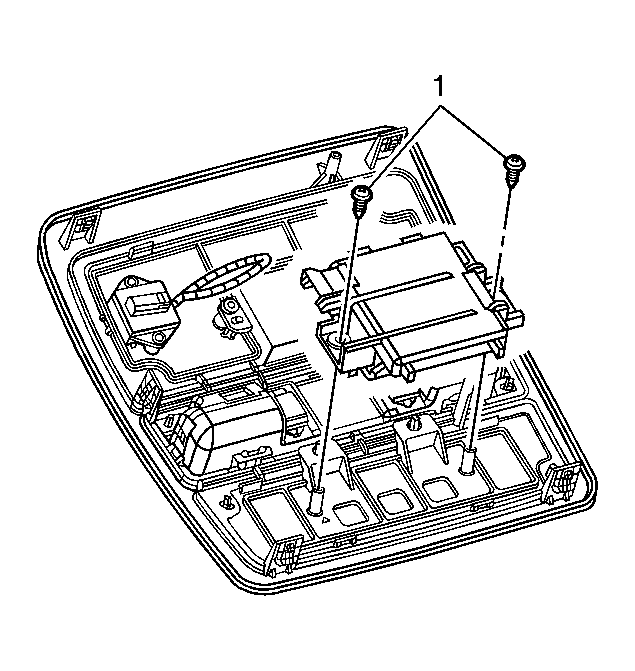

    Fig 1: View Of Garage Door Opener
    GM1470612Courtesy of GENERAL MOTORS COMPANY
  1. Locate the garage door opener to the overhead console.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the screws (1) securing the garage door opener the overhead console and tighten to 2 N.m (18 lb in).
  3. Connect the electrical connector.
  4. Install the overhead console. Refer to Roof Console Replacement .
  5. Refer to Control Module References for programming and setup information.
