Front Axle Propeller Shaft Heat Shield Replacement

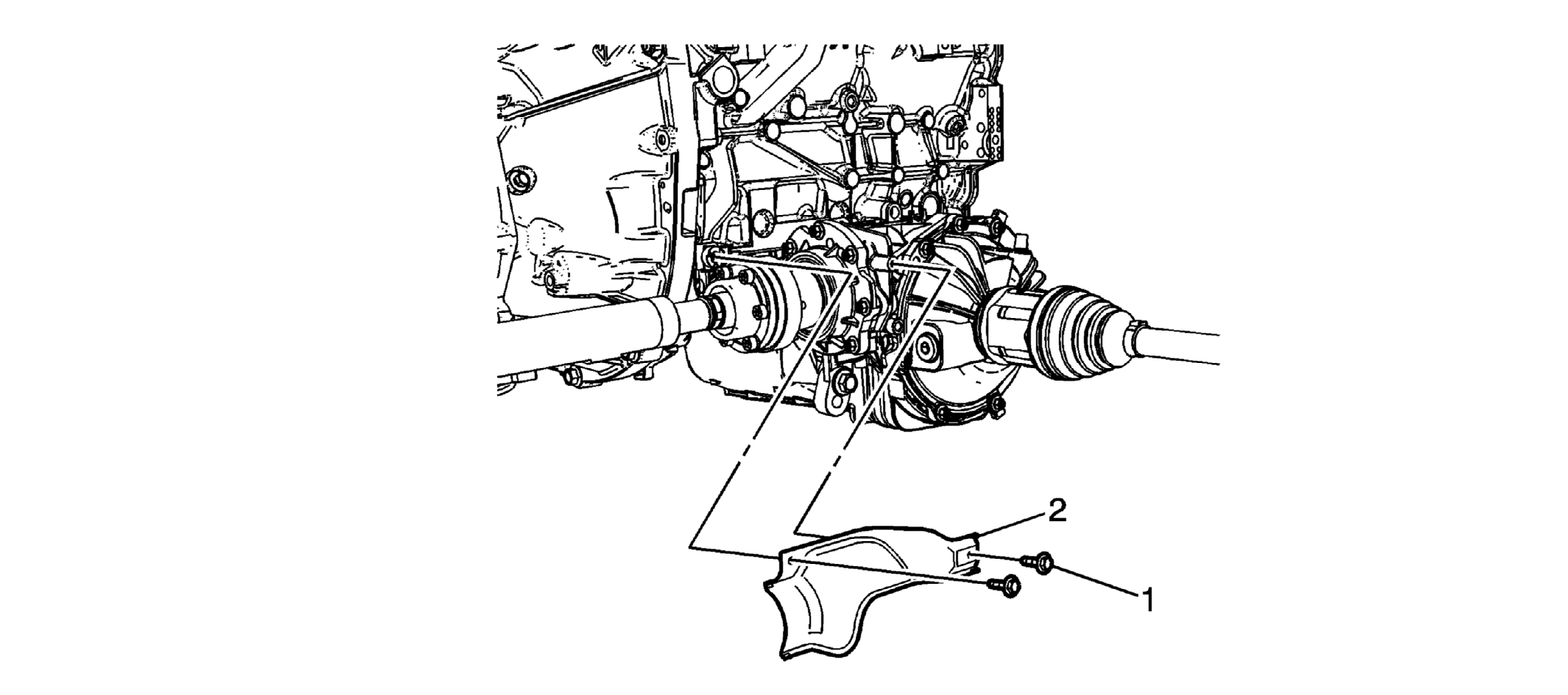

Fig 1: Front Axle Propeller Shaft Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the right catalytic convertor. Refer to Catalytic Converter Replacement - Right Side .
1	Front Axle Propeller Shaft Heat Shield Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Axle Propeller Shaft Heat Shield

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the right catalytic convertor. Refer to Catalytic Converter Replacement - Right Side .

Front Axle Propeller Shaft Heat Shield Bolt (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Front Axle Propeller Shaft Heat Shield
