Installation Procedure

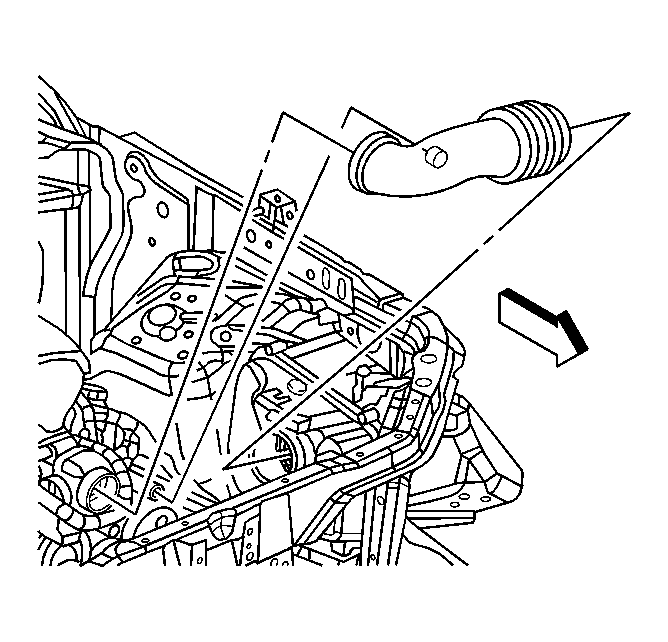

    Fig 1: View Of Air Cleaner Duct
    GM1201220Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner intake duct.
  2. Install the PCV hose to the intake duct resonator.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Tighten the air cleaner duct clamps and tighten to 4 N.m (35 lb in).
  4. Install the front compartment sight shields as necessary. Refer to Front Compartment Sight Shields Replacement .
