Installation Procedure

    Fig 1: View Of Right CMP Sensor - Intake
    GM1285251Courtesy of GENERAL MOTORS COMPANY
  1. Install the CMP sensor.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the CMP sensor bolt and tighten to 10 N.m (89 lb in).

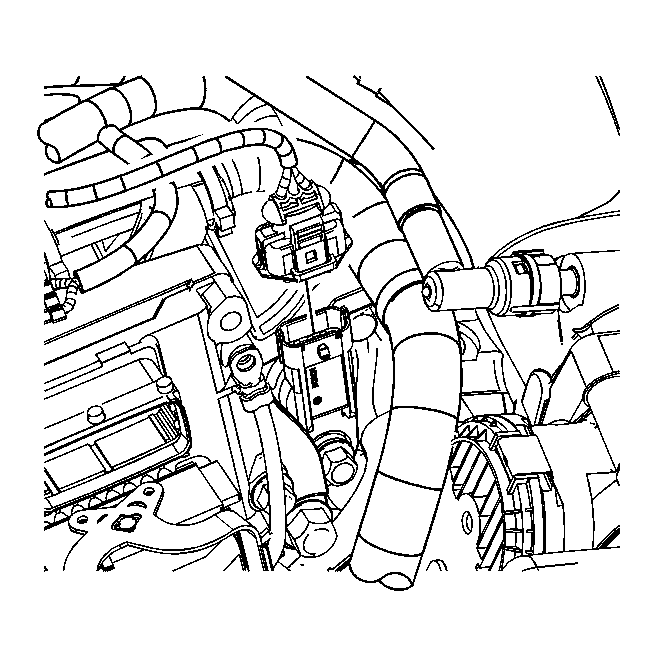

    3. Fig 2: View Of Right CMP Sensor Electrical Connector - Intake
    GM1285245Courtesy of GENERAL MOTORS COMPANY
  3. Connect the CMP sensor electrical connector.
  4. Install the front compartment sight shields as necessary. Refer to Front Compartment Sight Shields Replacement .
