Camshaft Position Sensor Replacement - Bank 2 (Left Side) Intake

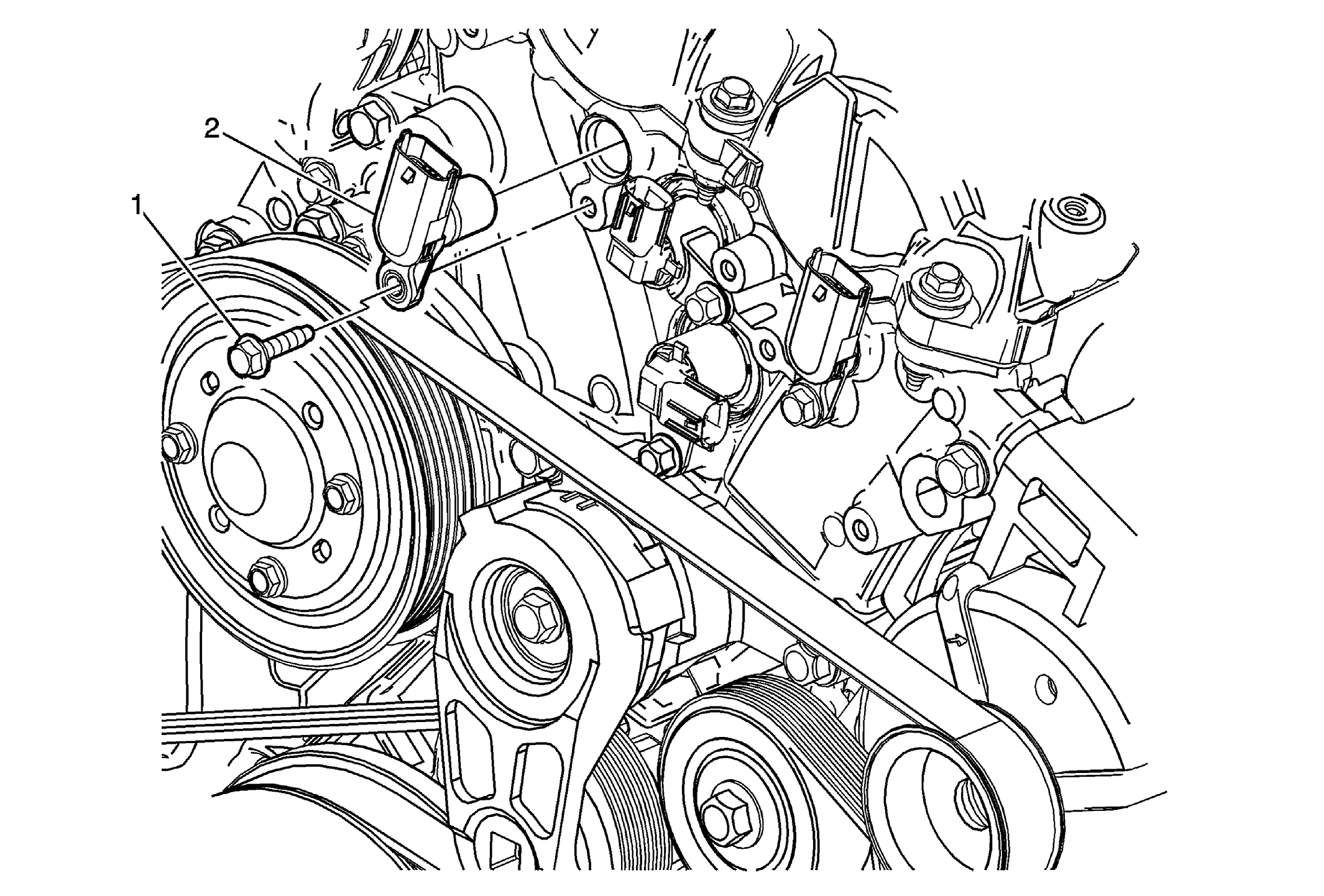

Fig 1: Identifying Camshaft Position Sensor - Bank 2 (Left Side) Intake

Courtesy of GENERAL MOTORS COMPANY

Camshaft Position Sensor Replacement - Bank 2 (Left Side) Intake

Callout	Component Name
Preliminary Procedure  Remove the left engine mount bracket. Refer to Engine Mount Bracket Replacement - Left Side .
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Camshaft Position Sensor Procedure  Disconnect the electrical connector.
