Removal Procedure

WARNING:

Allow sufficient time for the engine to cool before removing the ECT sensor. A hot engine may cause an excessive coolant loss or a personal injury.

  1. Turn the ignition OFF.
  2. Remove the engine oil dipstick indicator.
    3. Fig 1: View Of Electrical Connector Heat Protector
    GM1997115Courtesy of GENERAL MOTORS COMPANY
  3. Slide the electrical connector heat protector (1) off the electrical connector.

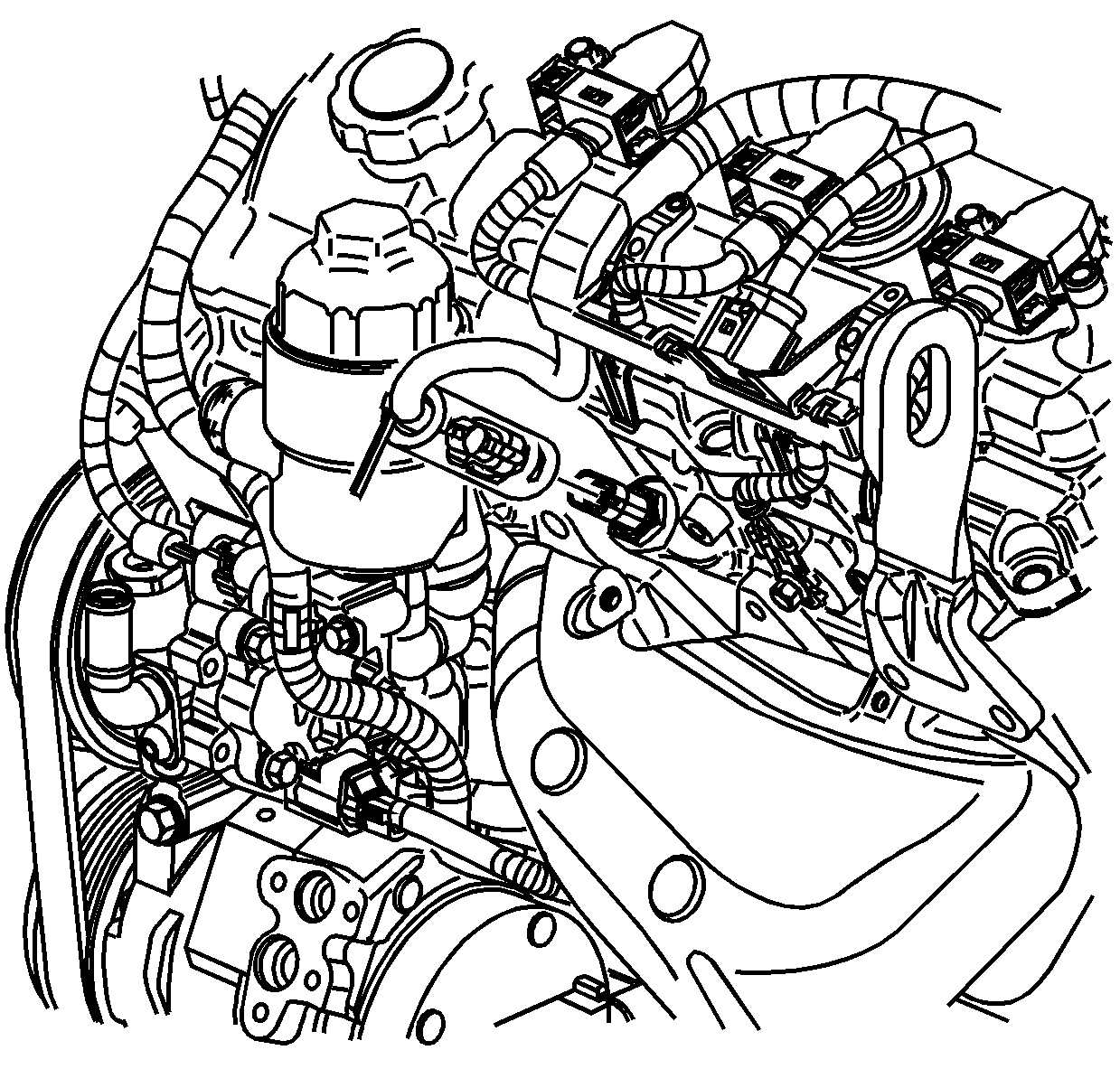

    4. Fig 2: View Of Coolant Temperature Sensor And Electrical Connector
    GM945424Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the coolant temperature sensor electrical connector.
    5. Fig 3: Coolant Temperature Sensor
    GM1285193Courtesy of GENERAL MOTORS COMPANY
  5. Remove the coolant temperature sensor.
