Installation Procedure

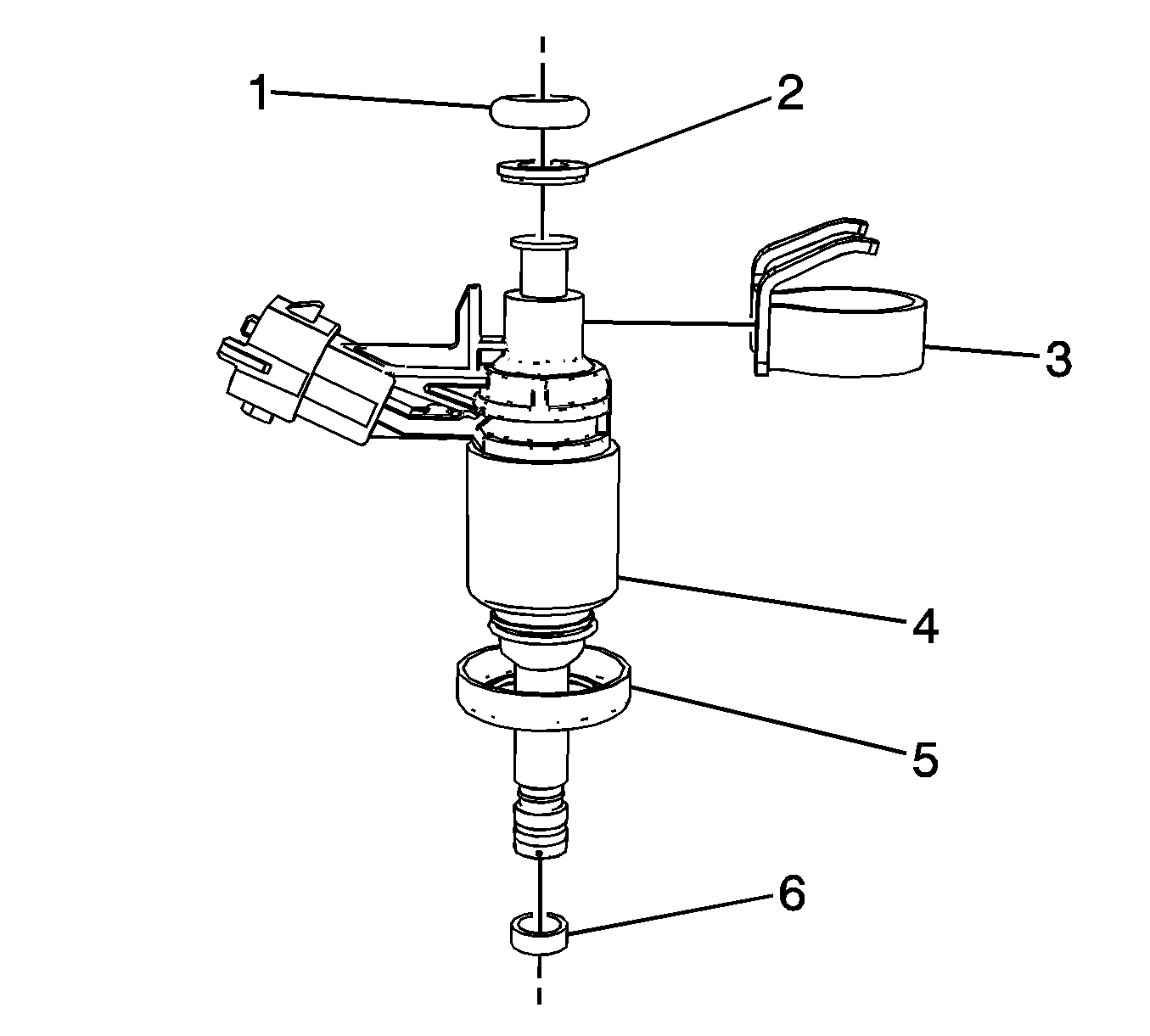

- Install the following NEW components to the fuel injectors. Use steps 2 through 8 to install these components.
- Upper O-ring Seal (1)
- Plastic Spacer (2)
- Retaining Ring (3)
- Isolator Cup (5)
- Teflon Seal (6)
- From the EN-48266 , position the EN 48266-1 to the injector tip.
- Install a NEW teflon seal onto the EN 48266-1.
- Pull the NEW teflon seal by hand over the EN 48266-1 and into the groove in the injector.
- Remove the EN 48266-1 from the injector tip.
- From the EN-48266 , install the EN 48266-2 to the injector tip.
- Using the EN 48266-2, resize the teflon seal. Install the EN 48266-2, until it bottoms out against the injector body, and rotate the EN 48266-2 while applying only moderate force 180 degrees in one direction and then 180 degrees back in the other direction.
- Remove the EN 48266-2.
- Install the direct fuel injectors and harness (1) as an assembly and connect the electrical connector (2).
- Install the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement - Bank 1 , or Fuel Injection Fuel Rail Assembly Replacement - Bank 2 .
NOTE:
Lubricate a NEW O-ring seal (1) with silicon free engine oil GM P/N 12345610 (Canadian P/N 993193) or equivalent.
NOTE:
DO NOT lubricate the NEW teflon seal.
CAUTION:
Note the correct routing of the electrical wiring. Failure to reinstall the wiring properly could result in damage to the wiring.
NOTE:
The fuel injectors have an alignment feature and must be reinstalled as noted during removal.
