Installation Procedure

    Fig 1: View Of Right Knock Sensor & Bolt
    GM860801Courtesy of GENERAL MOTORS COMPANY
  1. Install the KS.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the KS bolt and tighten to 23 N.m (17 lb ft).

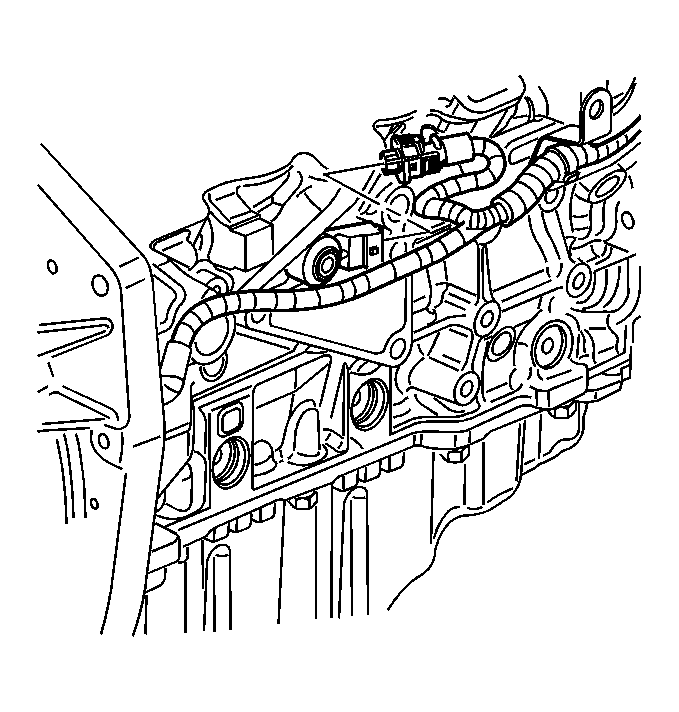

    3. Fig 2: View Of Right Knock Sensor And Electrical Connector
    GM945742Courtesy of GENERAL MOTORS COMPANY
  3. Install the KS electrical connector.
  4. Install the wiring harness heat shield to the original position.
  5. Lower the vehicle.
