Installation Procedure

    Fig 1: View Of Left Knock Sensor
    GM860802Courtesy of GENERAL MOTORS COMPANY
  1. Install the KS.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the KS bolt and tighten to 23 N.m (17 lb ft).

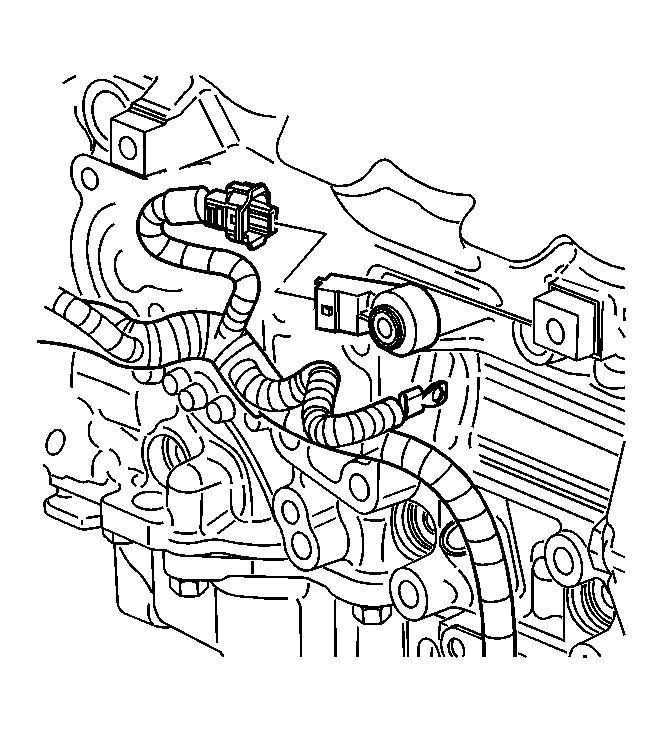

    3. Fig 2: View Of Left Knock Sensor And Electrical Connector
    GM945380Courtesy of GENERAL MOTORS COMPANY
  3. Install the KS electrical connector.
  4. Install the wiring harness heat shield to the oil level indicator tube .
  5. Lower the vehicle.
